SV-DA200 series AC servo drives
4.4.8 Analog output signals and functions
Sign Pin no.
AO1 21
AO2 25

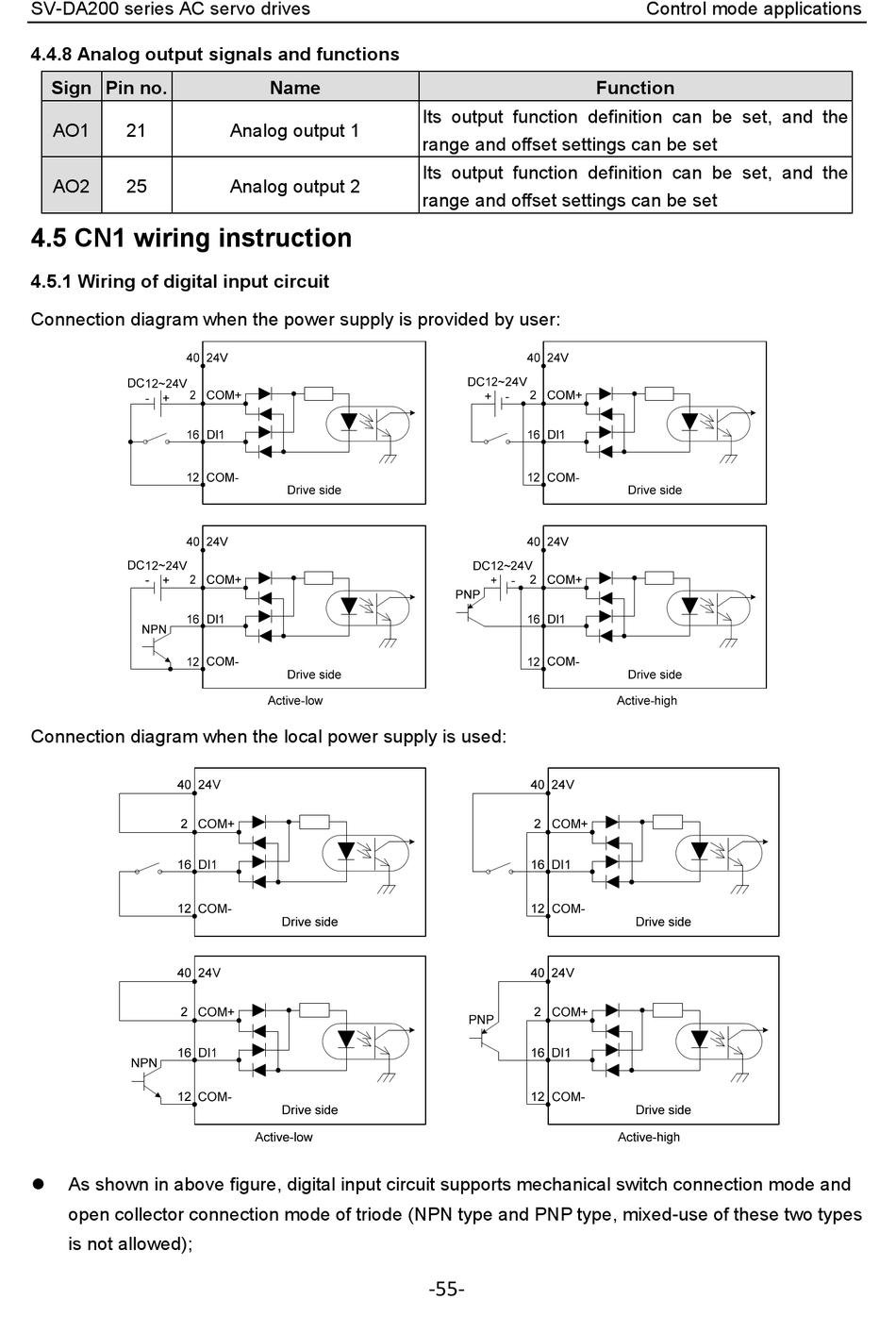

4.5 CN1 wiring instruction

4.5.1 Wiring of digital input circuit
Connection diagram when the power supply is provided by user:
Connection diagram when the local power supply is used:
 As shown in above figure, digital input circuit supports mechanical switch connection mode and
open collector connection mode of triode (NPN type and PNP type, mixed-use of these two types
is not allowed);
Name
Analog output 1
Analog output 2
Its output function definition can be set, and the
range and offset settings can be set
Its output function definition can be set, and the
range and offset settings can be set
‐55‐
Control mode applications
Function
