SV-DA200 series AC servo drives
Control mode applications

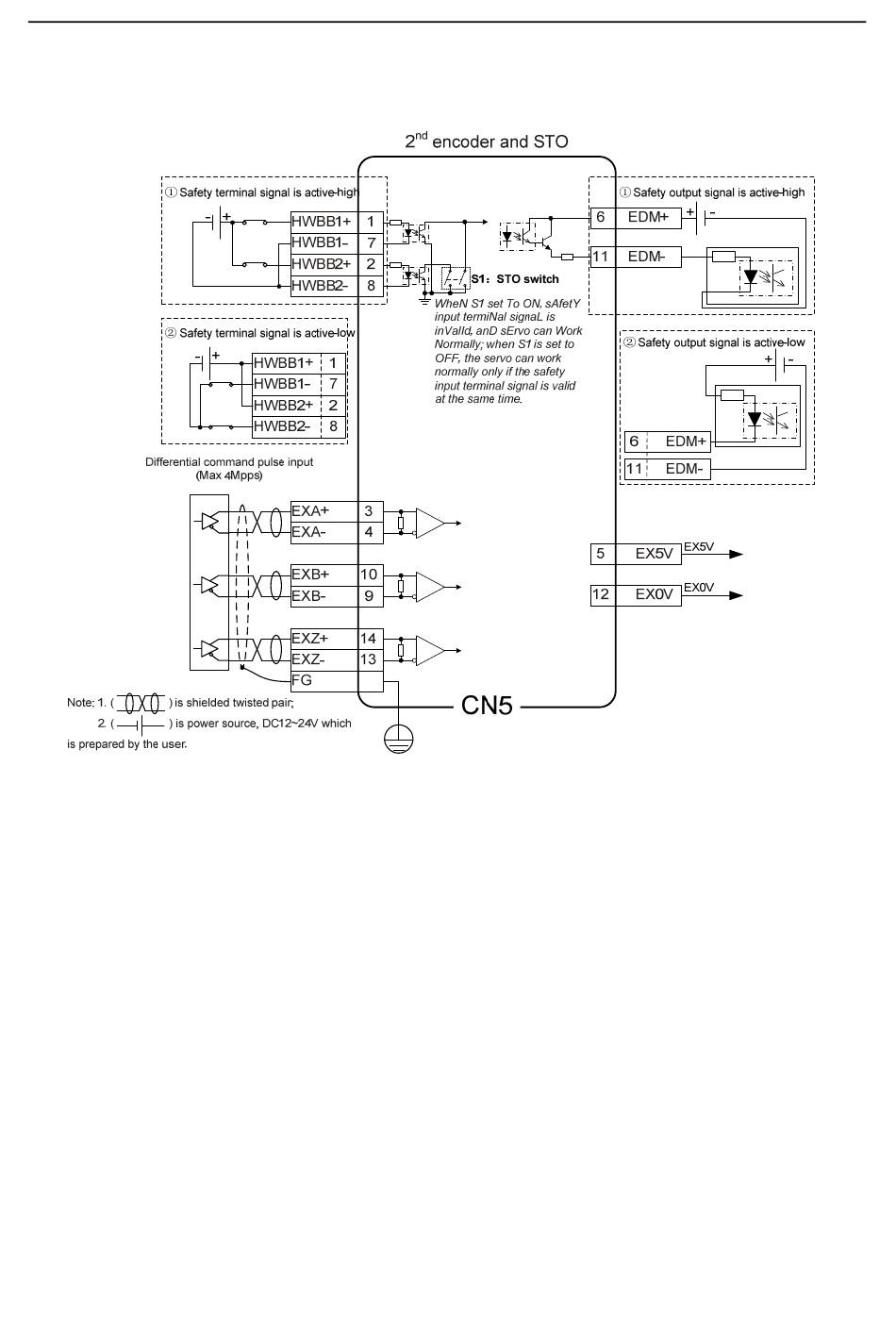

4.6 CN5 wiring diagram

4.6.1 CN5 wiring diagram of small power range (100W~5.5kW)

‐61‐
