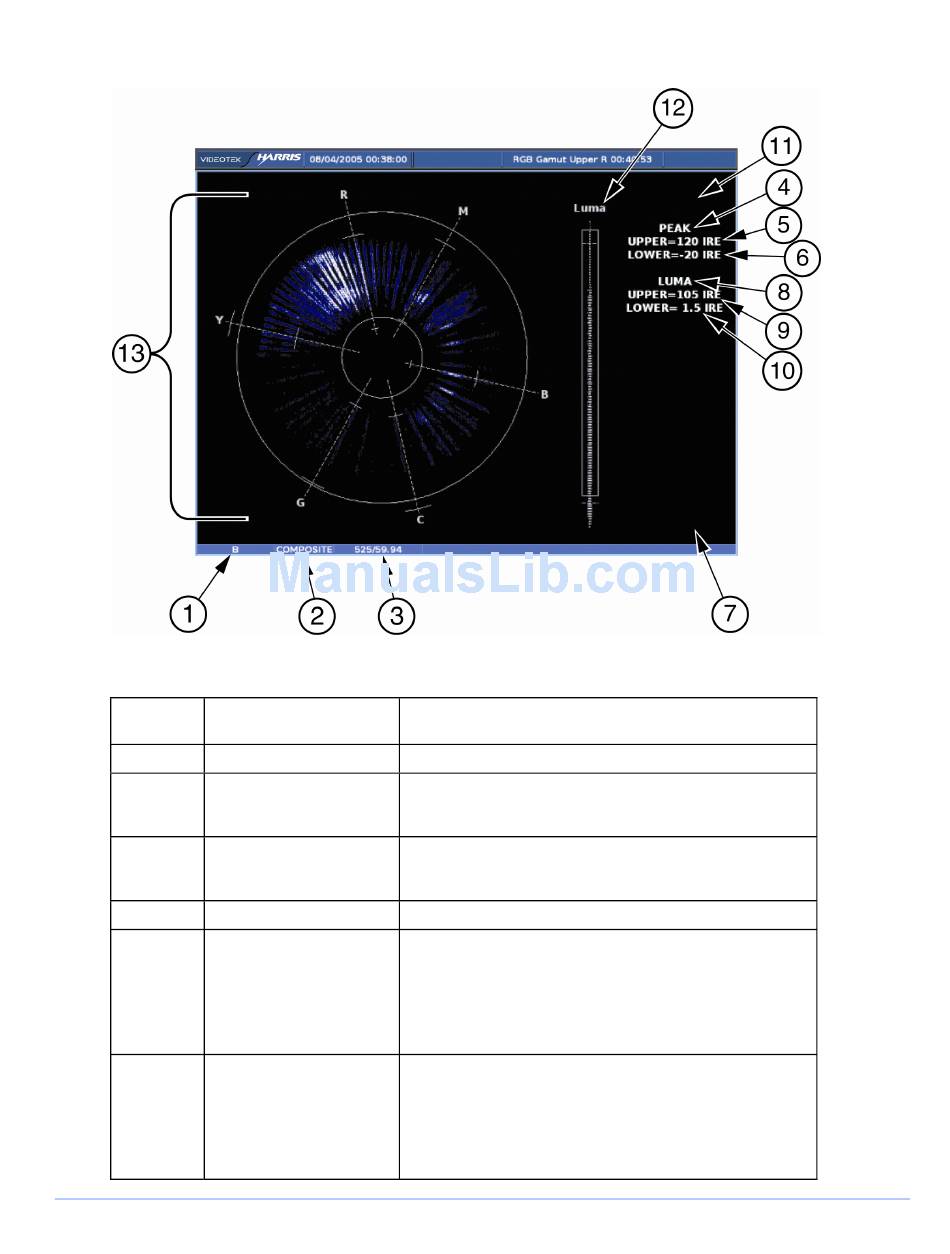

Figure 3-40. Gamut Display Diagram
Table 3-27. Description of Gamut Display Diagram
Field
Field Information
Identifier
1 Input
2 Format
3 Standard
4 Chroma alarm limits
5 Upper chroma alarm limit
6 Lower chroma alarm limit
72
General Operation
Nomenclature
Displays user-configurable source IDs for input and routers
Displayed as Composite and RGB; this can be selected in
the HD FORMAT or SD FORMAT submenu of the GAMUT
Pane menu
Displays the Line Rate/Frame Rate [1080i/59.94]; this is
selected in the VIDEO FORMAT > VIDEO A THRU D
CONFIGURE menu
Displayed as RGB (for RGB) and PEAK (for Composite)
Displayed as Upper = xxx yy
•
For RGB xxx is the RGB Gamut upper threshold
setting and yy is shown as mV
•
For Composite, xxx is the Peak upper threshold
setting. In Composite, yy is determined by the format
(IRE for NTSC and Units or mV for PAL)
Displayed as Lower = xxx yy
•
For RGB xxx is the s the RGB Gamut lower threshold
setting, and yy as units
•
For Composite, xxx is the Peak lower threshold
setting. In Composite, yy is determined by the format
(IRE for NTSC and Units for PAL)
