Video Metadata

The Video metadata display provides a description and location in text form of specific
data embedded in the video signal. A Video Metadata display diagram is shown in
Figure 3-59 and described in Table 3-50. The diagram illustrates the general location
for the various Video Metadata display fields.

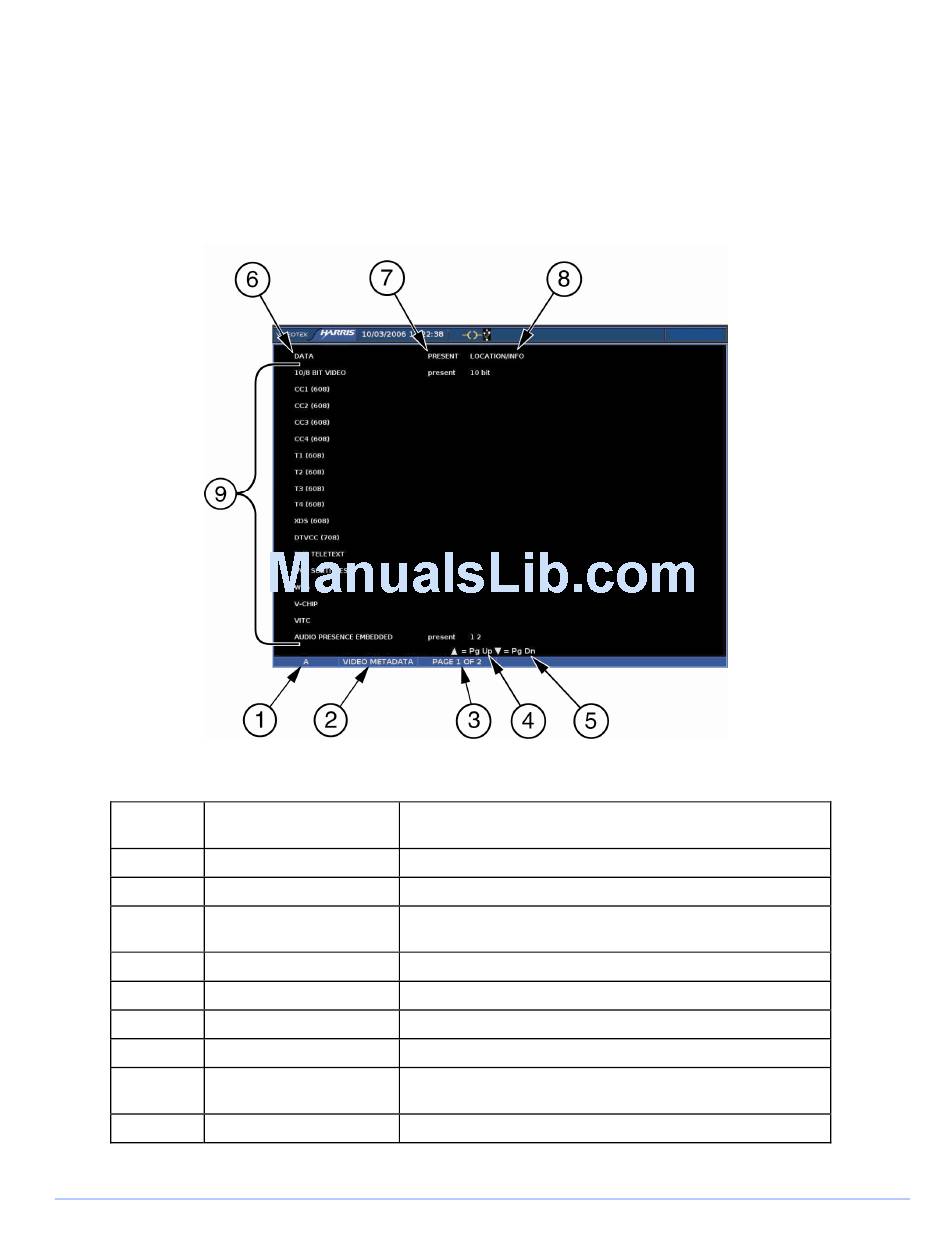

Figure 3-59. Video Metadata Display Diagram
Table 3-50. Description of the Video Metadata Display Diagram
Field
Field Information
Identifier
1 Input
2 Display Label
3 Page Information
4 Paging Information
5 Paging Information
6 Data Column Label
7 Present Column Label
8 Location/Info Column
Label
9 Metadata Information
106
General Operation
Nomenclature
Displays user-configurable source IDs for input and routers
Displayed as Video Metadata
Shown as page X of Y, where X is the page number and Y is
the total number of pages
Displays ▲ = PAGE UP
Displays ▼ = PAGE DOWN
Indicates the DATA column
Indicates the data detected
Indicates the location information from the appropriate
specification when it is detected
Displays the video metadata information
