Table 3-23. Description of Vector Display Diagram
Field
Field Information
Identifier
7 Line select information
8 Vector Standard
9 Zoom
10 Vector graticule
Graticules are configured by selecting the Video Input Format along with the
appropriate Vector Setup standard.
Some graticule scales are illustrated in Figure 3-29 to Figure 3-36.

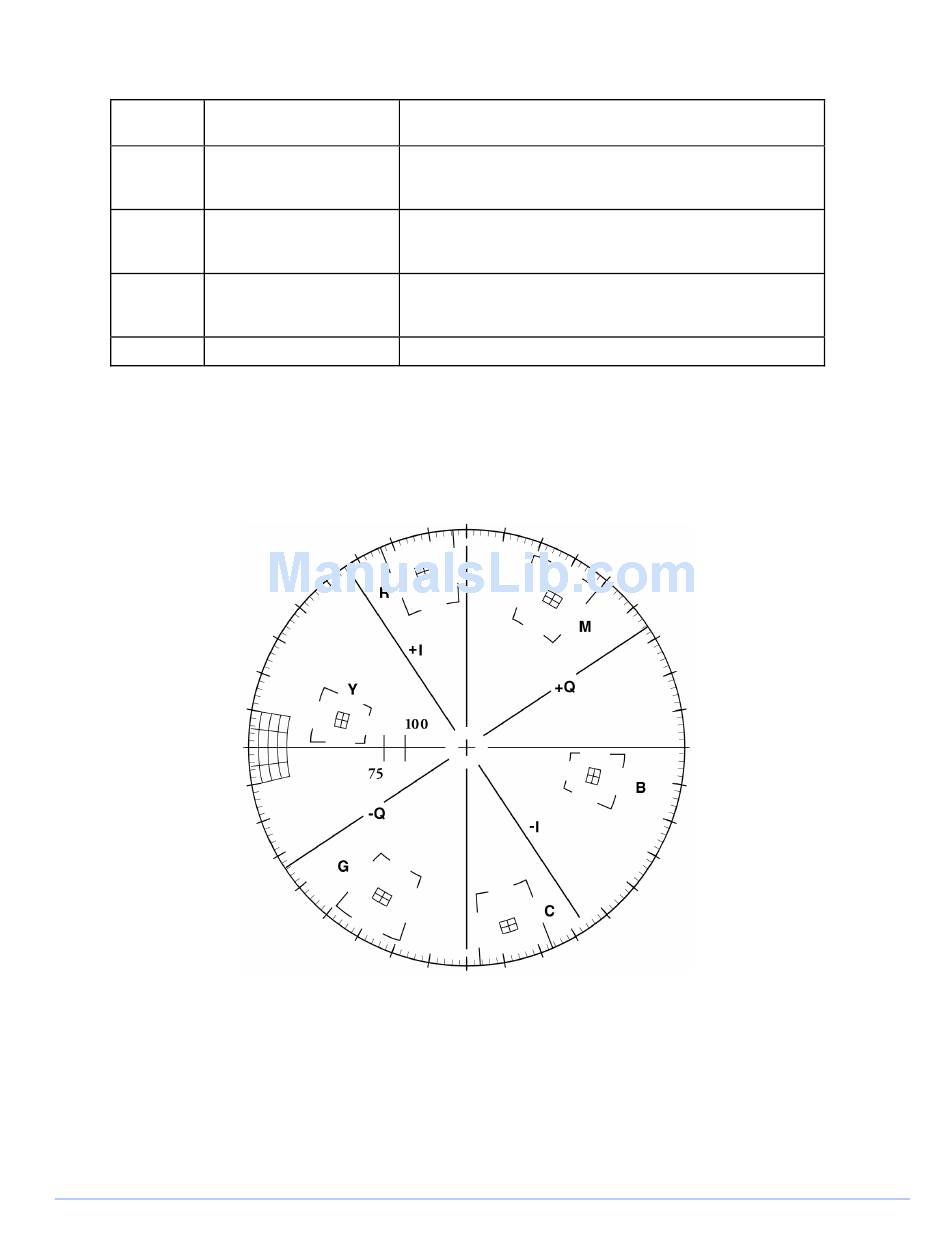

Figure 3-29. Vector NTSC Graticule
62
General Operation
Nomenclature
Line select is shown as Line and the number with the ODD
or EVEN field (odd or even field will only show for certain
Video Formats)
Displayed as 75%, 100%, or 75% + 100% (HD only); this is
selected in the Vector Pane setup submenu called Analog
standard, SD standard, or HD standard
• Zoom (when enabled)
•
Blank when disabled
•
Press the ZOOM button to cycle through Zoom modes
Shows Vector graticule
