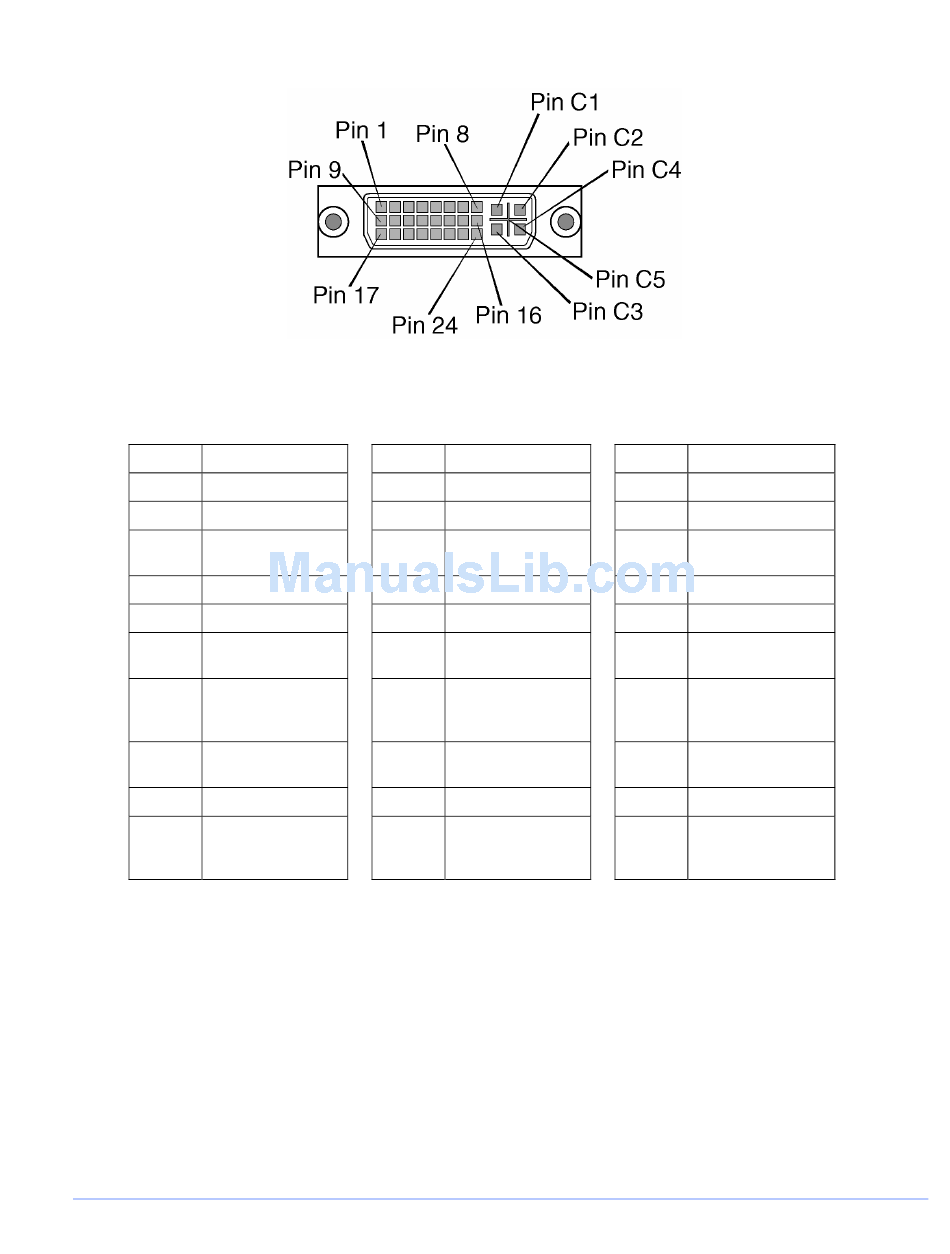

Figure B-2. DVI-I Out Connector
Table B-2. Pinouts for DVI-I Out Connector
Pinout Signal
1 T.M.D.S. Data 2-
2 T.M.D.S. Data 2+
T.M.D.S. Data 2/4
3
Shield
4 T.M.D.S. Data 4-
5 T.M.D.S. Data 4+
DDC Clock
6
DDC Data
7
Analog Vertical
8
Sync
C1 Analog Red
Analog Horizontal
C4 Sync
Pinouts
Pinout Signal
9 T.M.D.S. Data 1-
10 T.M.D.S. Data 1+
T.M.D.S. Data 1/3
11
Shield
12 T.M.D.S. Data 3-
13 T.M.D.S. Data 3+
+5V Power
14
Ground (return for
15 +5V, Hsync, and
Vsync)
Hot Plug Detect
16
C2 Analog Green
Analog Ground
C5 (analog, R, G, and
B return)
TVM Series Installation and Operation Handbook
Copyright © 2008, Harris Corporation
Pinout Signal
17 T.M.D.S. Data 0-
18 T.M.D.S. Data 0+
T.M.D.S. Data 0/5
19
Shield
20 T.M.D.S. Data 5-
21 T.M.D.S. Data 5+
T.M.D.S Clock
22
Shield
T.M.D.S. Clock+
23
T.M.D.S. Clock-
24
C3 Analog Blue
-
-
