Global Setup Menu Functions
Auto Off Time
When Auto Off is enabled, the Auto Off Time is used to turn off the front panel LEDs
when no buttons are pressed after 15 SECONDS, 30 SECONDS, 45 SECONDS, 1 TO
60 MINUTES.

Diagnostics (System Fault Log)

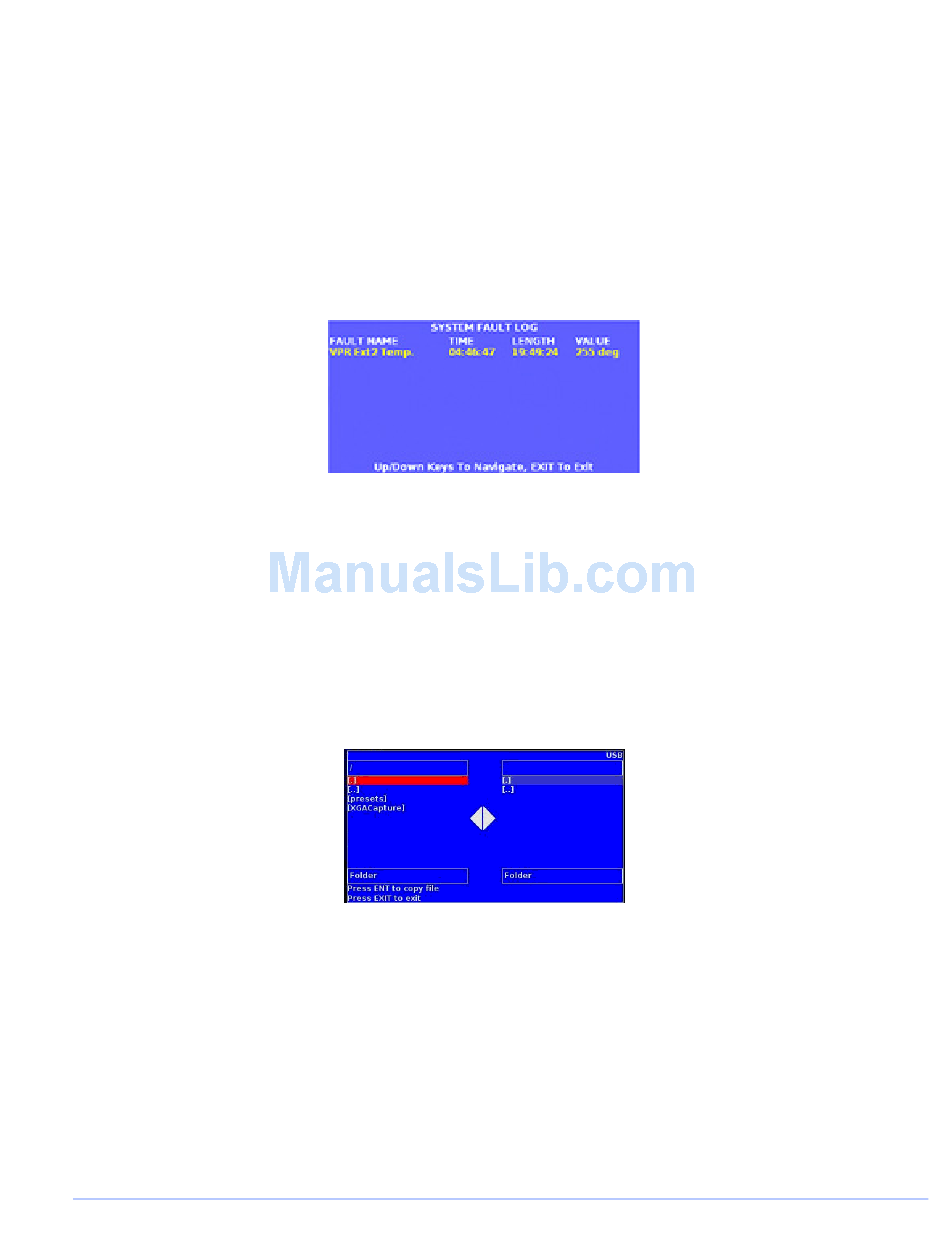

The System Fault Log, shown in Figure 4-7, is used to show the faults that occur
within the system.
Figure 4-7. System Fault Log

File Navigator

NOTE: The FILE NAVIGATOR menu item does not appear if a USB removable drive is not
connected to the USB port on the back of the unit.
The File Navigator is used to control the presets and frame captures for the TVM. Any
stored preset or frame capture can be stored, onto the USB removable drive. Pressing
the ENT button on the FILE NAVIGATOR menu item access the File Manager
Screen, shown in Figure 4-8.
Figure 4-8. File Navigator Screen
The left column of the File Navigator screen shows what is available to be transferred
to the USB drive. The stored presets are located in the PRESETS folder, and the frame
captures are located in the FRAME CAPTURE folder. Use the NAVIGATION buttons
to move among the folders and files. Press the ENT button to enter a folder.
When a preset or XGA capture is selected, press the ENT button to copy the file over
to the USB drive*. When the ENT button is pressed, the Enter Name for Preset on
USB Drive Screen appears. Press the UP/DOWN navigation buttons to change the
character. Press the RIGHT/LEFT navigation buttons to move to the next character,
ACCEPT, or CANCEL. Once the file is renamed, select ACCEPT and press ENT to
TVM Series Installation and Operation Handbook 185
