Installation
The flat cable shown in Figure 2-6 is a straight through cable. See the RCU 1000
Installation and Operation Handbook for more information on the RCU 1000.

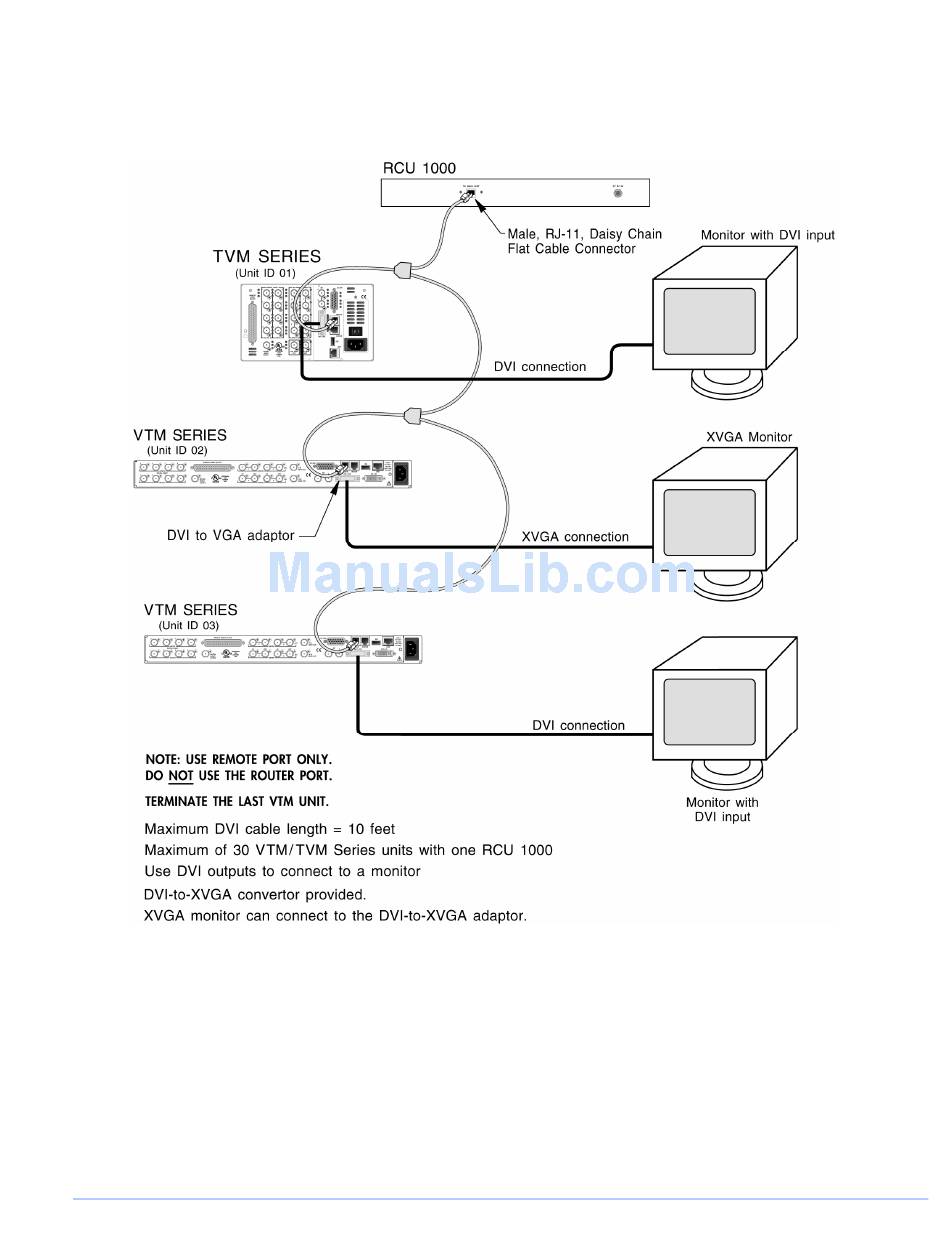

Figure 2-6. Connecting the RCU 1000 Remote Control Panel to Multiple TVM/VTM Series Units
TVM Series Installation and Operation Handbook
21
Copyright © 2008, Harris Corporation
