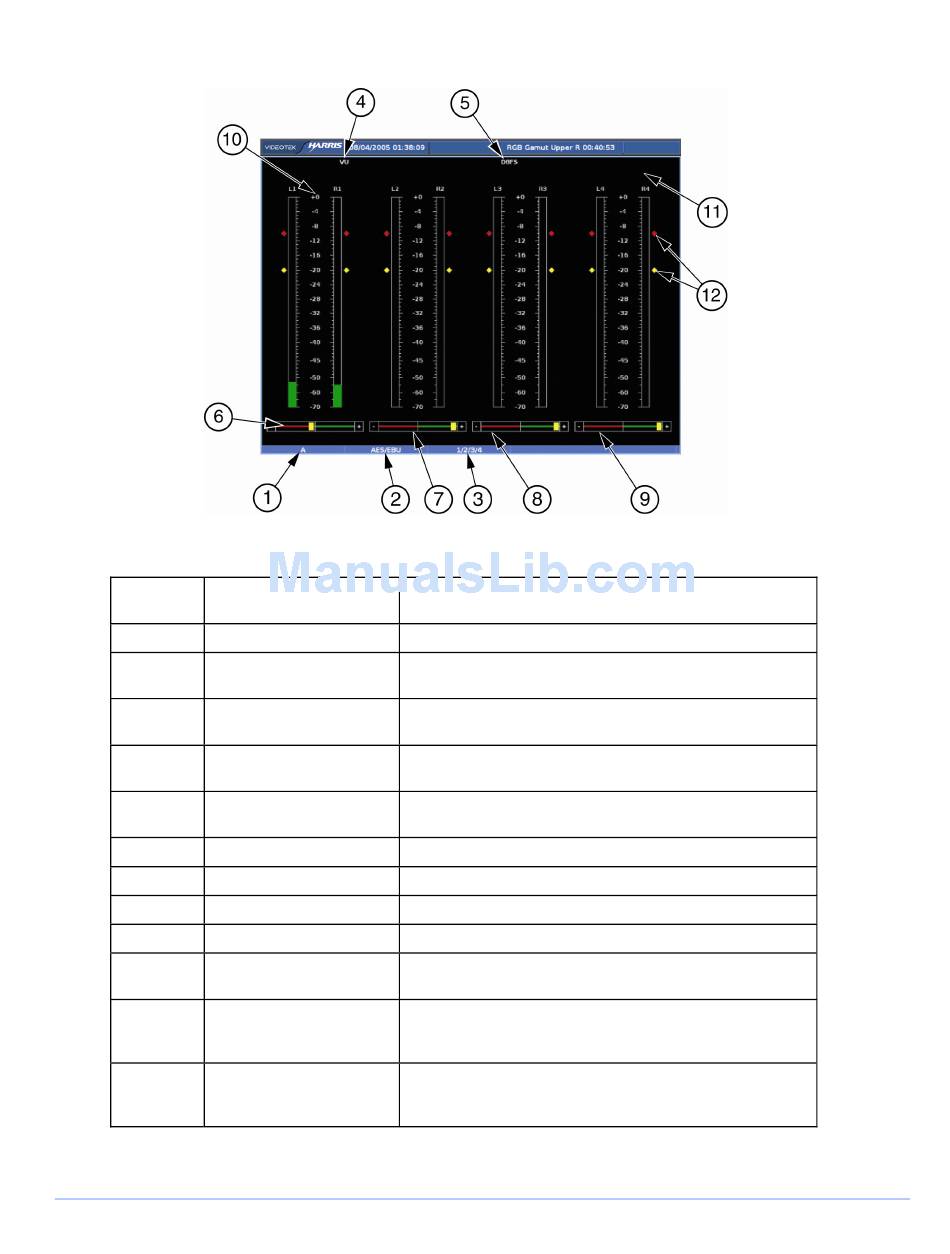

Figure 3-53. Eight Bar Graph Display Diagram
Table 3-43. Description of Eight Bar Graph Display Diagram
Field
Field Information
Identifier
1 Input
2 Audio Type
3 Audio Input
4 Meter Response
5 Scale Selection
6 Phase Bar (1)
7 Phase Bar (2)
8 Phase Bar (3)
9 Phase Bar (4)
10 Audio Graticule (with
meter labels)
11 Zoom
12 Level Meters
96
General Operation
Nomenclature
Displays user-configurable source IDs for input and routers
Displayed as Analog, AES, Embedded, Dolby AES, Dolby
Embedded
Displayed information is option dependent; shown as 1-16
(analog is 1-8, AES is 1-16 or 1-8, and Embedded is 1-16)
Displays selected meter response: VU, Peak, True Peak,
VU + Peak, VU + True Peak, Loudness, Custom
Displays the selected meter scale: Type I, Type IIa, Type
IIb, Type I + 8, Nordic, DIN 45406, dBFS, Zero REF dBFS
Phase Meter of bar graph 1
Phase Meter of bar graph 2
Phase Meter of bar graph 3
Phase Meter of bar graph 4
Shown as L1, R1, L2, R2, L3, R3, L4, and R4 (or Custom
label).
•
Zoom (when enabled)
•
Blank when disabled
• Press the ZOOM button to cycle through Zoom modes
Shows peak and reference levels for the signal. This can
be adjusted in the AUDIO SETUP > METER SETUP >
REF DIGITAL (or ANALOG) menu.
