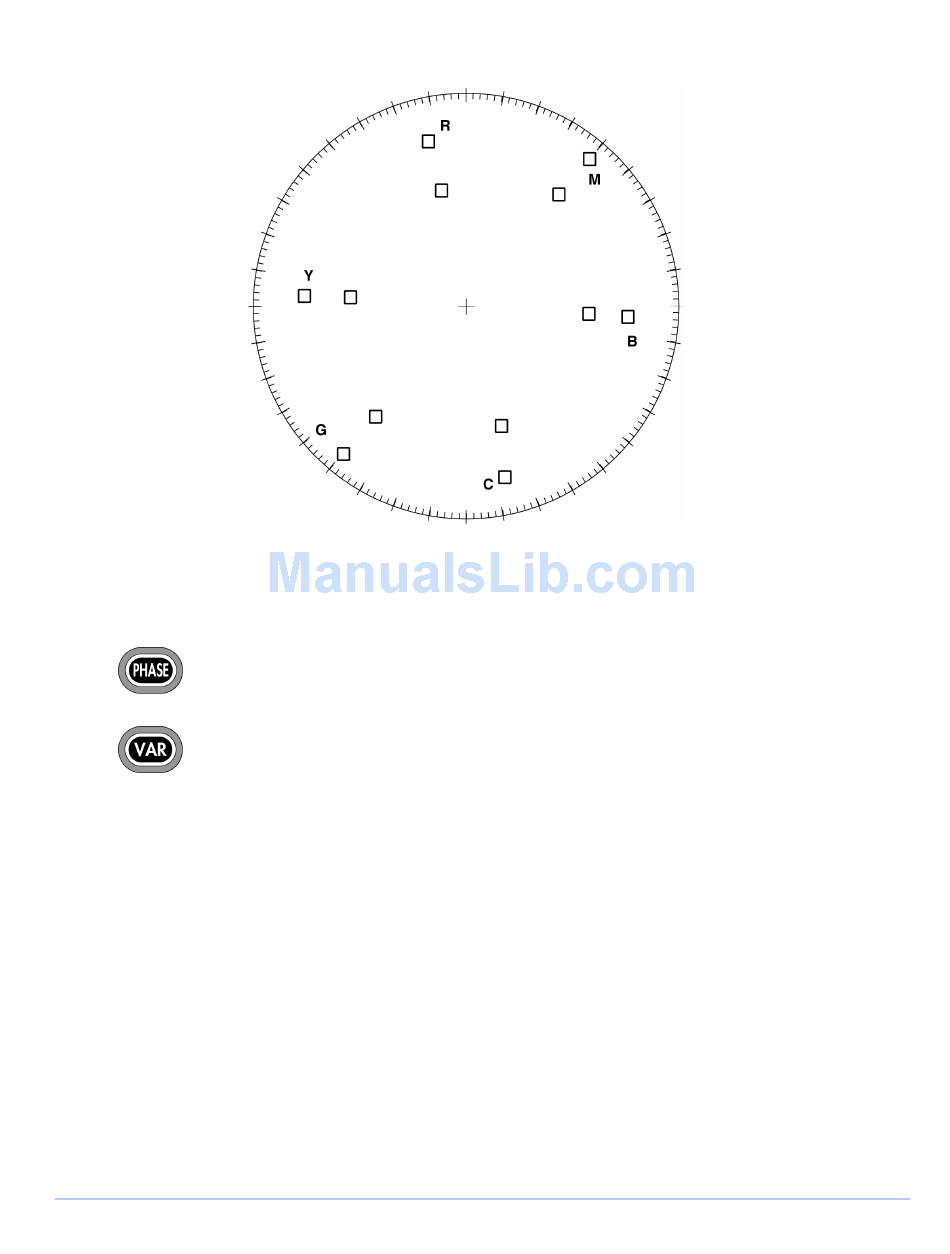

Figure 3-36. Vector HD 75% + 100% Graticule

Controlling the Vector

(For Composite analog video input only) A vector display has two
individual properties: phase and magnitude. To control the phase of the
vector, press the PHASE button and turn the CURVED ARROW knob.
The magnitude is controlled by the Variable Gain. Press the VAR button
and then use the CURVED ARROW knob. Variable gain can be used in all
formats.

Gain Buttons

The standard gain in the vector is x1.0. The TVM can be used to set the gain
amplification in the video signal using the Gain group of buttons. The gain setting
appears in the upper-left portion of the vector pane, as shown in Figure 3-37.
