Table 3-18. Description Of Frequency Waveform Display Diagram - Videotek TVM9100PKG Installation And Operation Handbook

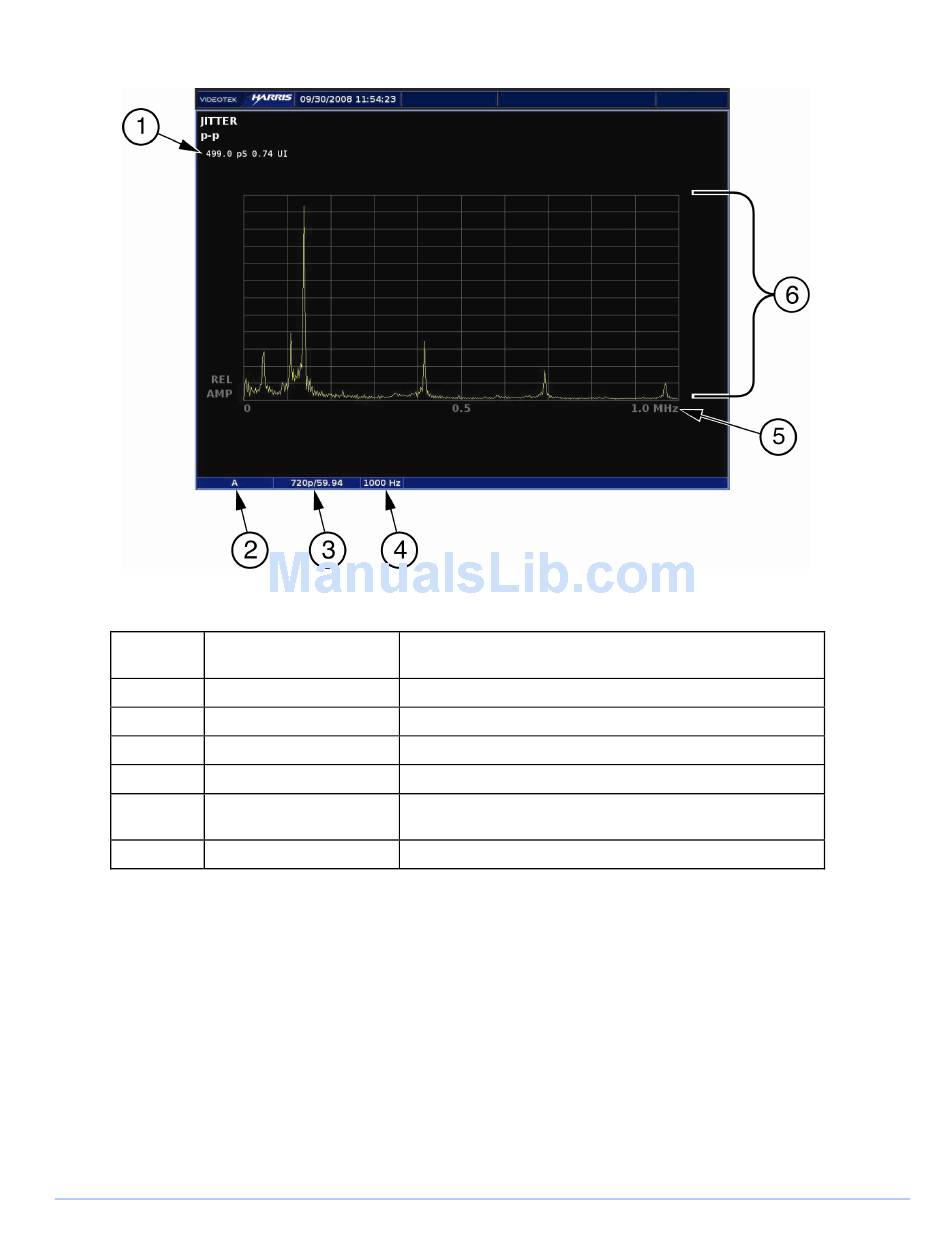

Figure 3-23. Frequency Waveform Display Diagram

Table 3-18. Description of Frequency Waveform Display Diagram

Field
Field Information
Identifier
1 Jitter p-p Value
2 Input
3 Standard
4 High Pass Filter
5 Horizontal Frequency
Scale
6 Jitter graticule
54
General Operation
Nomenclature
Display a numeric value for the jitter on the signal
Displays user-configurable source IDs for input and routers
Line rate/Frame rate
Displays selected jitter filter
Displays Jitter graticule shown relative to frequency
Displays Frequency Sweep graticule shown in p-p
