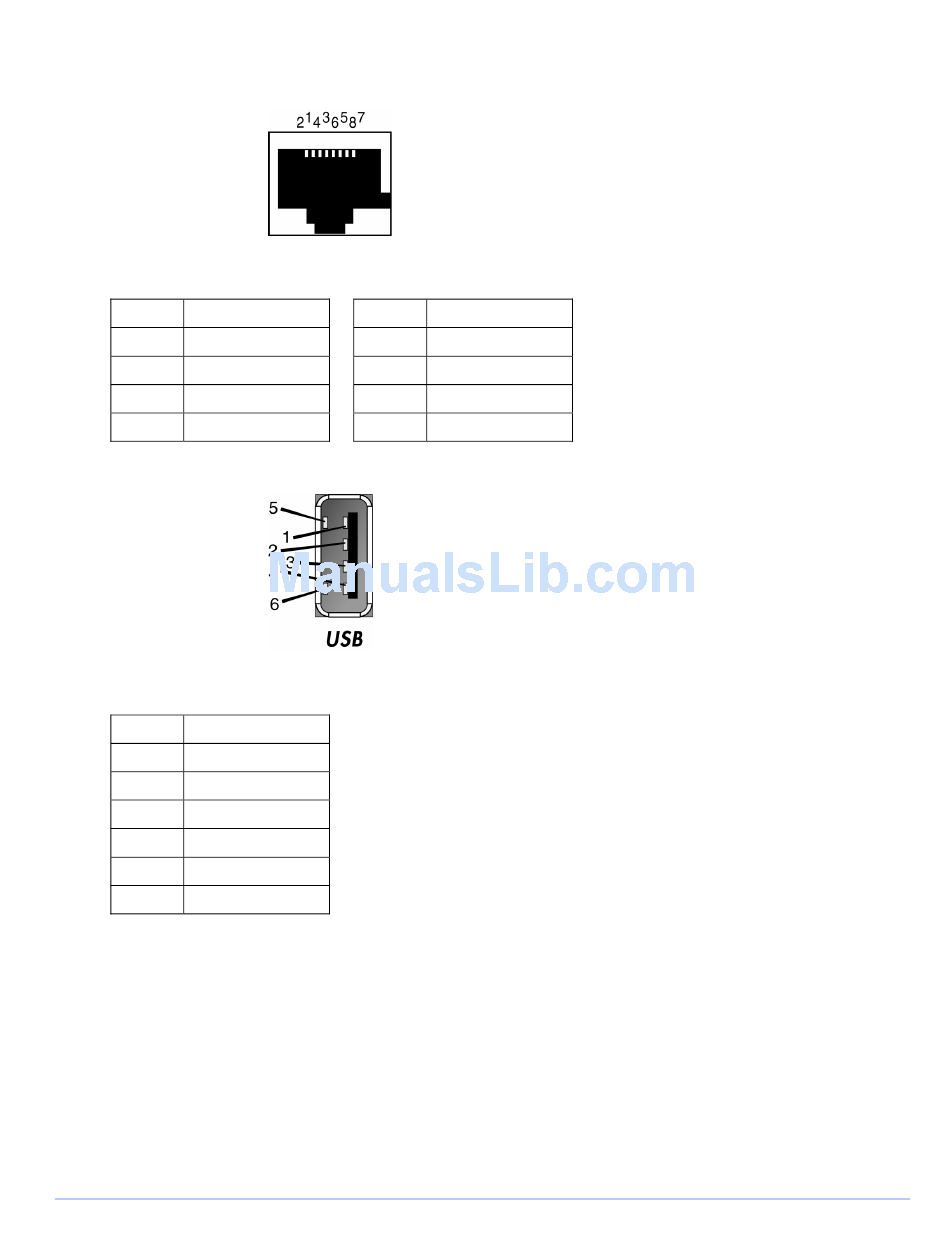

Figure B-7. Ethernet RJ-45 Connector
Table B-6. Ethernet RJ-45 Connector Pinouts
Pinout Signal
1 TX+
2 TX-
3 RX+
4 N.C.
Figure B-8. USB Connector
Table B-7. USB Connector Pinouts
Pinout Signal
1 VCC
2 Data -
3 Data +
4 GND
5 GND
6 GND
230
Pinouts
Pinout Signal
5 N.C.
6 RX-
7 N.C.
8 N.C.
