Ethernet Setup

1. Prior to TVM Network configuration, obtain Transmission Control
Protocol/Internet Protocol (TCP/IP) addresses from the System Administrator or
from the Internet Service Provider (ISP). These addresses are a static IP address
(unless Dynamic Host Configuration Protocol (DHCP) will be used), a Subnet
Mask, and an optional Gateway IP.
Be sure to record all addresses in the spaces provided below. The Gateway address
is not needed unless the TVM is routed to an outside network.
Record the addresses:
TVM Interface Static IP Address
TVM Interface Subnet Mask
Gateway IP Address
2. Identify a host PC to configure and test the TVM.
3a. For a dedicated PC connection, connect the host PC with a network card to the
"ENET" connector on the back panel of the TVM, using a CAT5 crossover cable
(not included). See Figure 2-3.

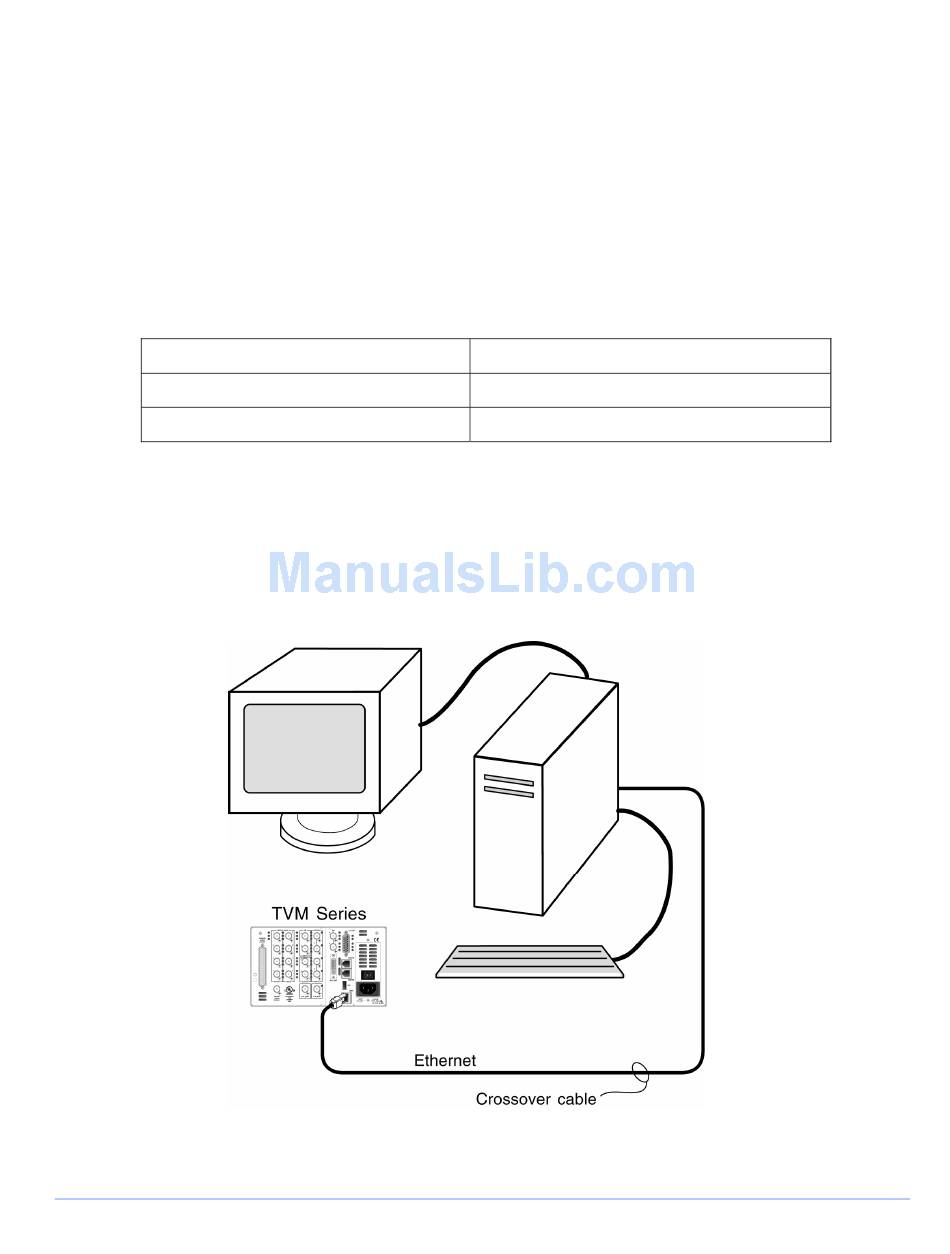

Figure 2-3. TVM Dedicated PC Connection
3b. For a network connection, connect the network hub to the back panel of the TVM
using a CAT5 network cable (not included). See Figure 2-4.
