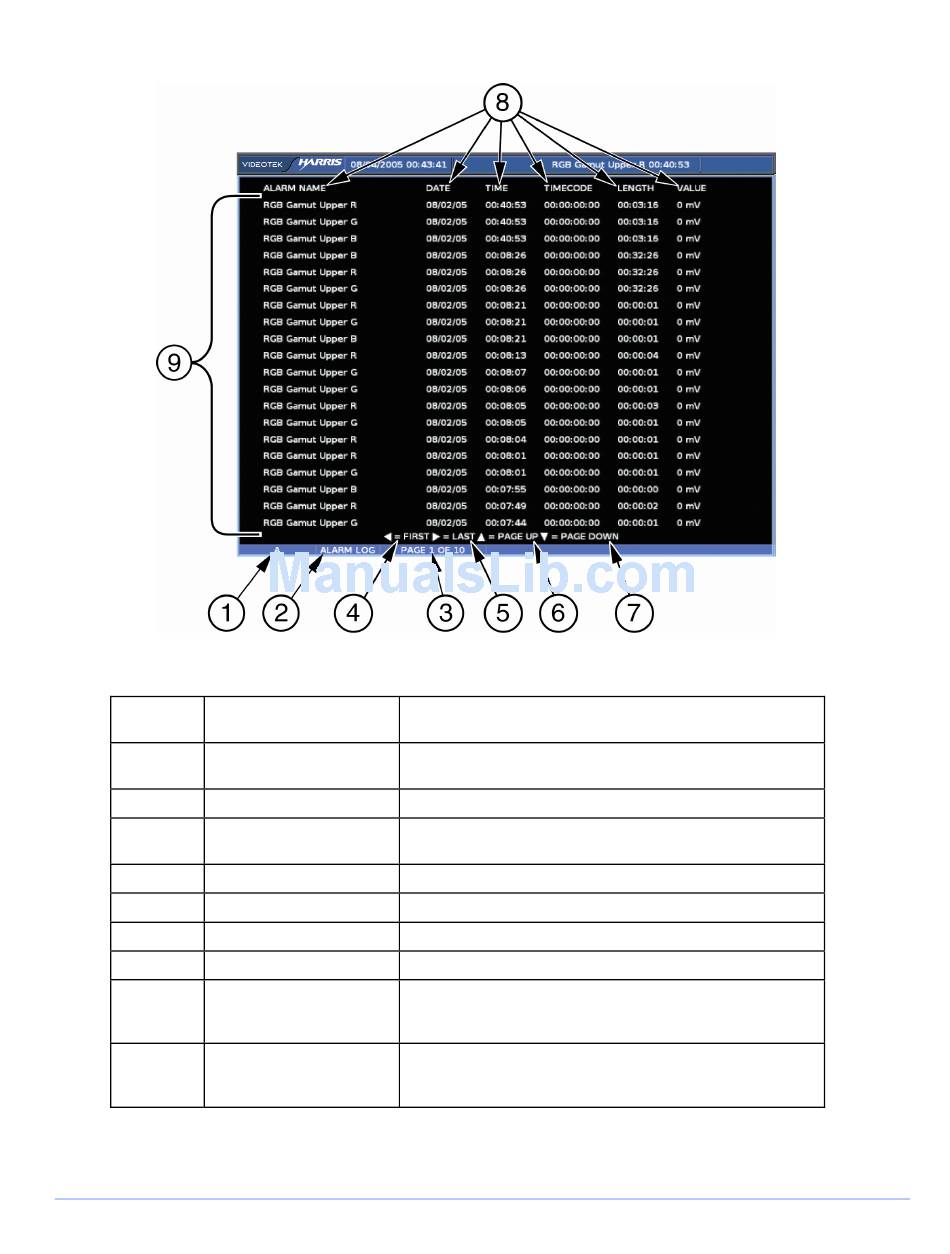

Figure 3-48. Alarm Log Diagram
Table 3-37. Description of Alarm Log Display Diagram
Field
Field Information
Identifier
1 Input
2 Display Label
3 Page Information
4 Paging information
5 Paging information
6 Paging information
7 Paging information
8 Column Labels
9 Alarm List
*NOTE: Certain alarm parameters do not have a level measurement that can report a peak
value. This is indicated when NO RPV (No Report Peak Value) appears in the PEAK VALUE
3
column. If A -OPT2 is installed, all audio alarms will report NO RPV.
86
General Operation
Nomenclature
Displays the user-configurable source IDs for the input and
routers.
Displayed as ALARM LOG
Displayed as PAGE X of Y, where X is the selected page
and Y is the total number of pages
Displays ◄ = FIRST page
Displays ► = LAST page
Displays ▲ = PAGE UP
Displays ▼ = PAGE DOWN
Displays the labels # (for the number in the alarm list),
ALARM NAME, DATE, TIME, TIMECODELENGTH
(Duration), and PEAK VALUE*
Displays the list of alarms from the most recent alarm to the
last recorded alarm (a maximum of 200 alarms can be
logged)
