Placing the Vector Display in Line Select Mode

NOTE: When inputs A and B are selected simultaneously, the Line Select function is not
available.
Pressing the LINE button enables the selected pane to monitor a single line
of a video signal. This enables Line Select to monitor individual areas of the
entire image. To view a line in Line Select mode:
1. Press the LINE button to place the selected vector display pane in Line Select
mode. At the bottom-center of the display, the pane displays the Line number and
Odd or Even field, as shown in Figure 3-38.

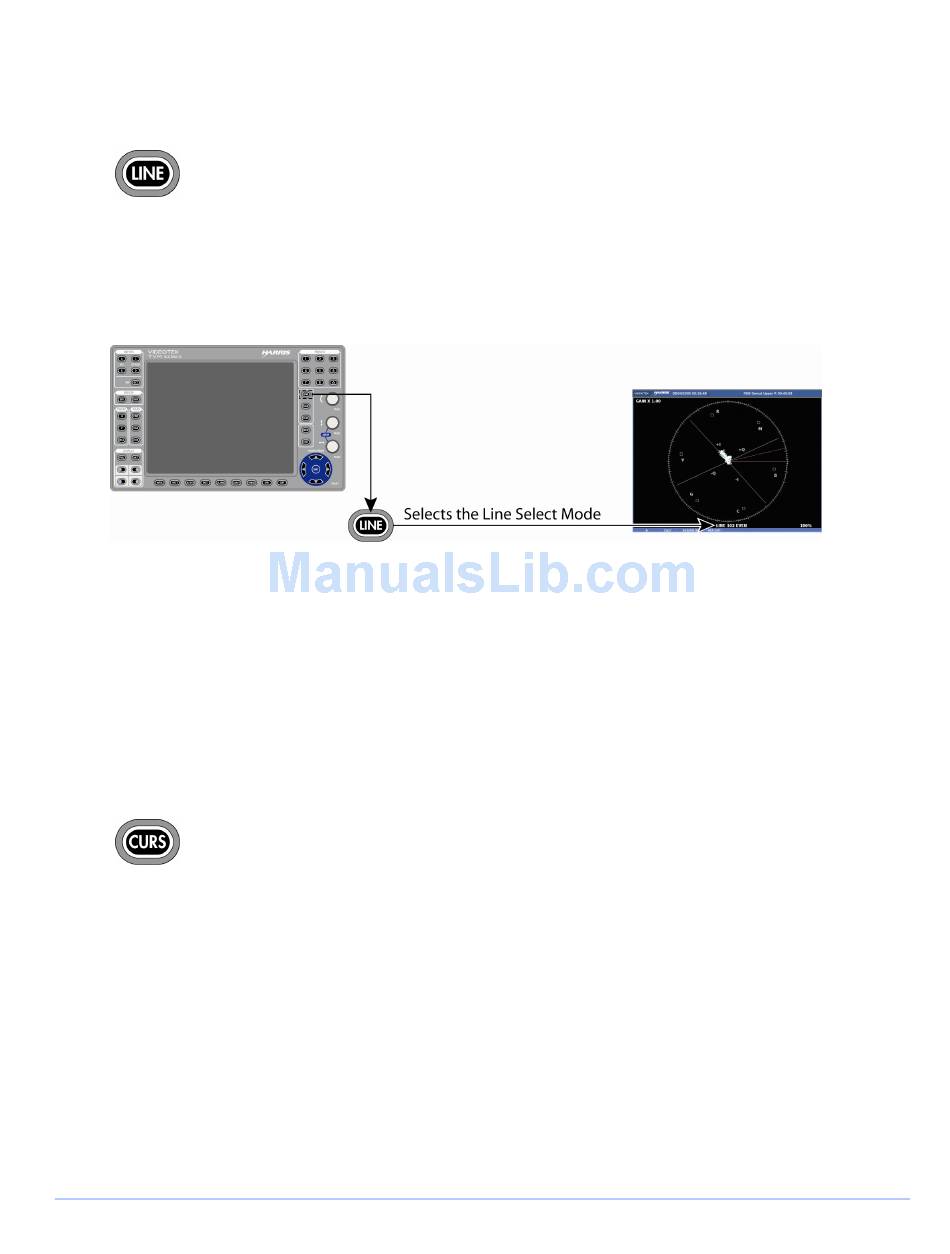

Figure 3-38. Establishing Line Select
NOTE: In a Progressive (p) format odd and even selection is not available.
2. Press the CURVED ARROW knob to alternate between the ODD and EVEN
fields.
3. Rotate the CURVED ARROW knob to select the line to be displayed.
When the inputs are linked, Line Select is a global setting. When the inputs are not
linked, Line Select is pane specific. When a picture is displayed in one of the panes, a
marker on the edge of the picture approximates the displayed line position (+/- 1 line).

Vector Cursor Selections

Cursors are available for precise measurement of vector phase (in degrees).
Press the CURS button on the front panel to enable the cursors for the
selected pane. The Phase Cursor indications are in the lower-left portion of
the screen as shown in Figure 3-39.
