• Colorbar with Motion: Select Colorbar with Motion to display a standard
colorbar display with a bouncing square that moves around the display.
The video output signals that are selectable in the Video Format menu are:
• 1080i/59.94
• 1080i/50
• 1080p/59.94
• 1080p/50
• 720p/59.94
• 720p/50
• 625/50
• 525/59.94
The Audio Level menu is used to select between the -18 dBFS and -20 dBFS test tones.
The selected tone is output to the selected audio groups in the ENABLE AUDIO menu.

Display Setup

The Display Setup menu is used to configure the Display colors, graticule and cursor
Intensity, XGA Freeze, Monitor, and LCD Backlight.

Display Colors

The display colors are used to select the colors for the background, cursors, signals,
and graticules of the TVM. The colors are listed in Table 4-13 on page 161. The
Display Color Selection Screen, shown in Figure 4-3, is used to set the colors. Any
color selection that is not available is blocked out and not accessible. "X" indicates the
selection on the screen.

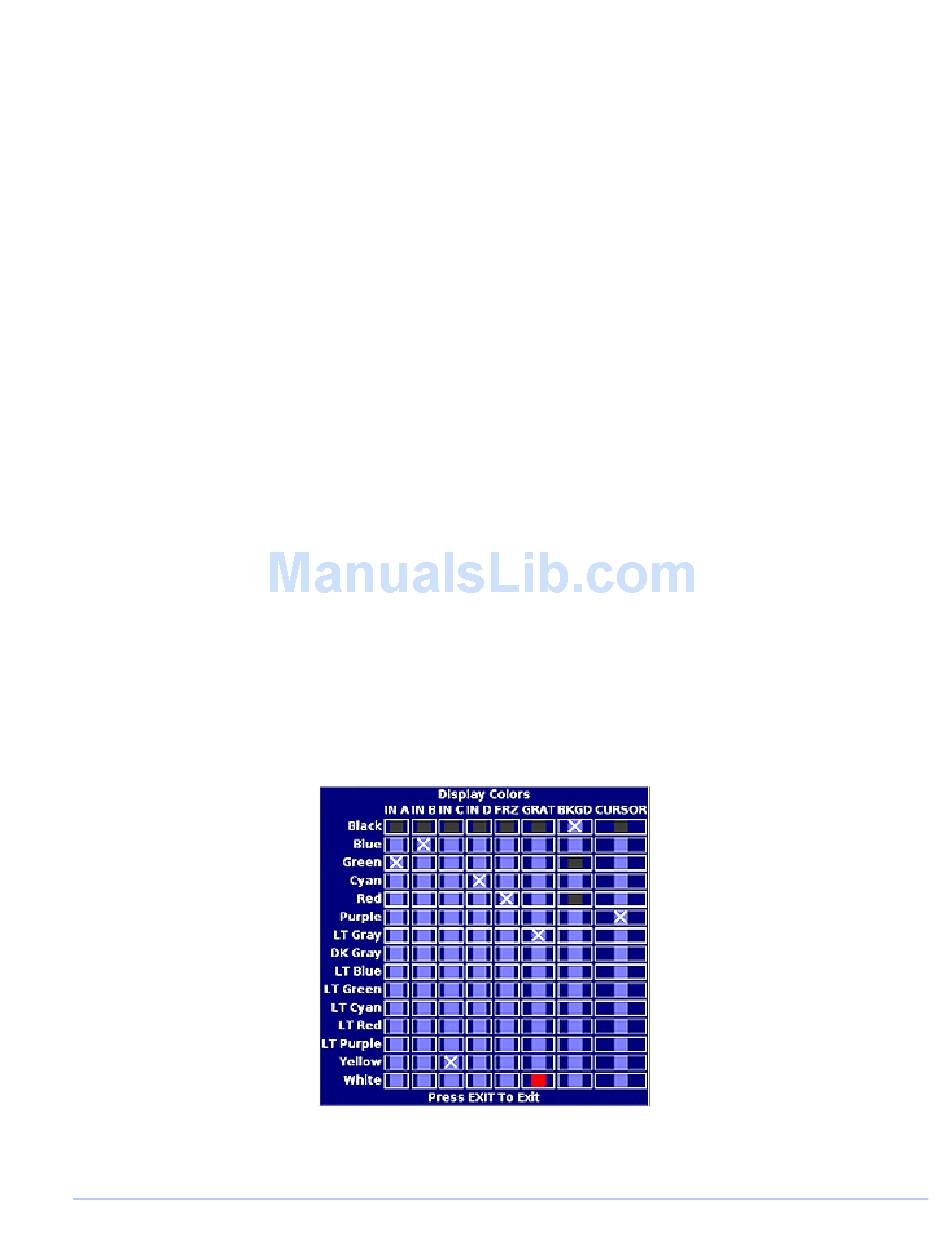

Figure 4-3. Display Color Selection
Use the NAVIGATION buttons to select the cell for the color and function. Once
selected, press the ENT button to assign the color to that function. Though the same
TVM Series Installation and Operation Handbook 175
