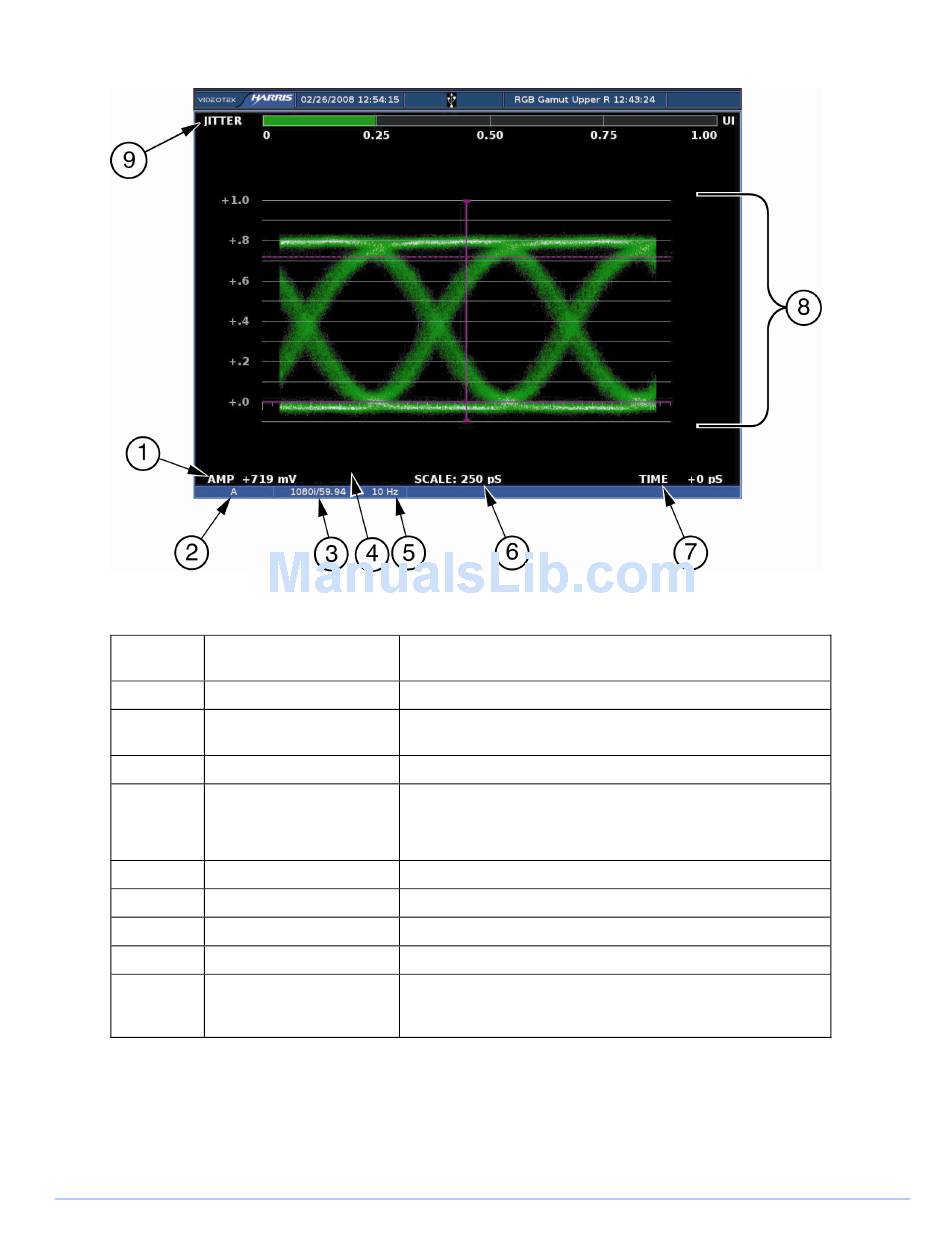

Figure 3-15. Eye Pattern Display Diagram

Table 3-11. Description of Eye Pattern Display Diagram

Field
Field Information
Identifier
1 Amplitude cursor readout
2 Input
3 Standard
4 Zoom
5 High Pass Filter
6 Scale
7 Time cursor readout
8 EYE graticule
9 Jitter Display
44
General Operation
Nomenclature
Displays the amplitude cursor as AMP and the number in mV
Displays the user-configurable source IDs for the input and
routers
Line rate/Frame rate
•
Displays the Zoom when enabled
•
Blank when Zoom is disabled
•
Press the ZOOM button cycle through Zoom modes
Displays the selected Eye Filter
Displayed in ps
Displays the time cursor as Time and the number in ps
Displays the Eye Pattern graticule
Displays the Jitter display; jitter display changes according to
the EYE PATTERN > JITTER DISPLAY TYPE menu in the
Global Setup menu
