Figure 3-7. RGB and YC
Figure 3-8. RGB and YC
Figure 3-9. RGB and YC

Waveform Front Panel Selections

The following buttons directly affect the waveform display.

Moving the Waveform using the Setup Knobs

Move the Waveform display relative to the graticule by using the LEFT and RIGHT
arrow Knob (for horizontal movement) and the UP and DOWN knob (for vertical
movement), as shown in Figure 3-10. Press the LEFT/RIGHT (horizontal direction) or
UP/DOWN (vertical direction) arrow knob to center the waveform in the particular
34
General Operation

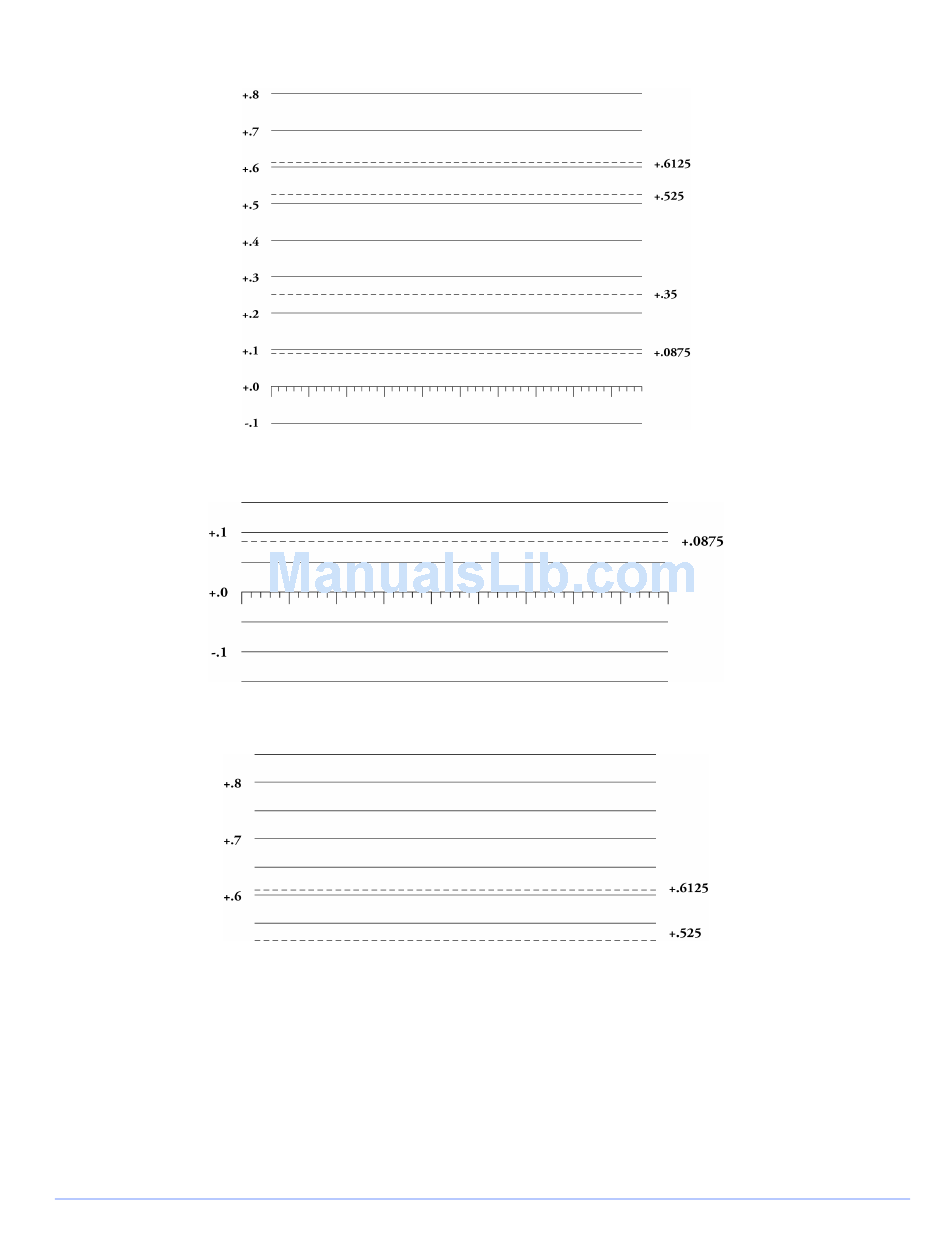

C Graticule
B R
C Zoom 0 mV Graticule
B R
C Zoom 700 mV Graticule
B R
TVM Series Installation and Operation Handbook
Copyright © 2008, Harris Corporation
