Selecting a Pane

When multiple panes are displayed, only one pane can be selected at a time. The active
pane is highlighted with a bright colored border. Press the desired Display button to

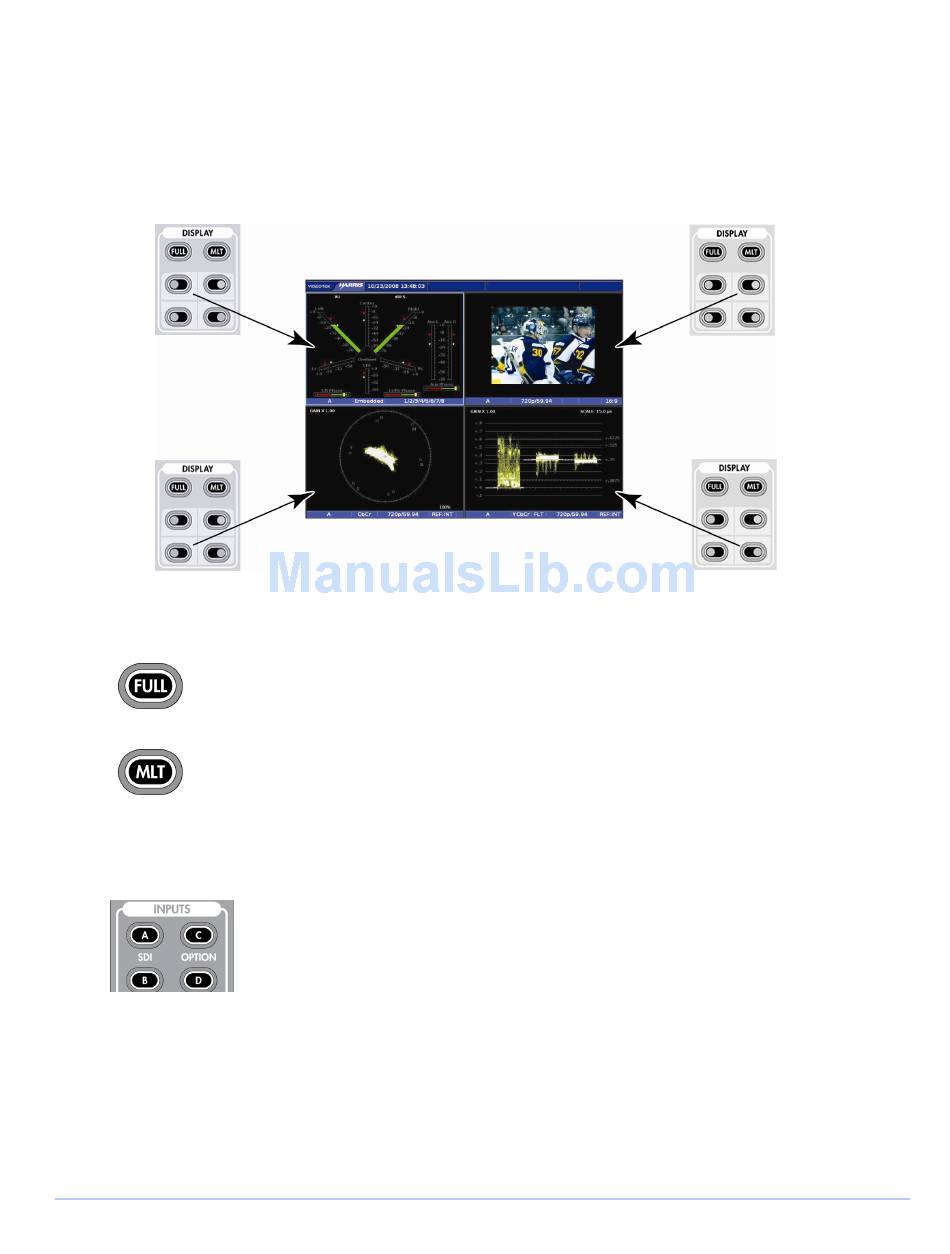

select the active pane to be configured, as shown in Figure 3-3.
Figure 3-3. Selecting a Pane

Full-Screen Display Selection

Press the FULL button in the display group to show a full-screen view of a
selected pane. The full-screen display encompasses the entire screen. No
other pane is displayed. Press the FULL button again to return to the Quad
view.
Press the MLT button to access the multi-screen display. The
Multi-Screen Display Selection information is found on page 116.

Selecting an Input for a Pane

NOTE: Input C and D buttons will not function if an option is not installed.
Press the Input buttons to select input A, B, A+B, C, D, or C+D. Press
the two input buttons (A and B or C and D) simultaneously to produce
A+B or C+D overlay if they are the same format. When an input is
selected, pressing another input button will change to the new input
from the previous input.
There are two modes for selecting inputs: Linked and unlinked mode.
• When Linked: All panes change when a new INPUT button is pressed.
• When not Linked: Only the selected pane changes the input when a new input is
selected.
