General Operation

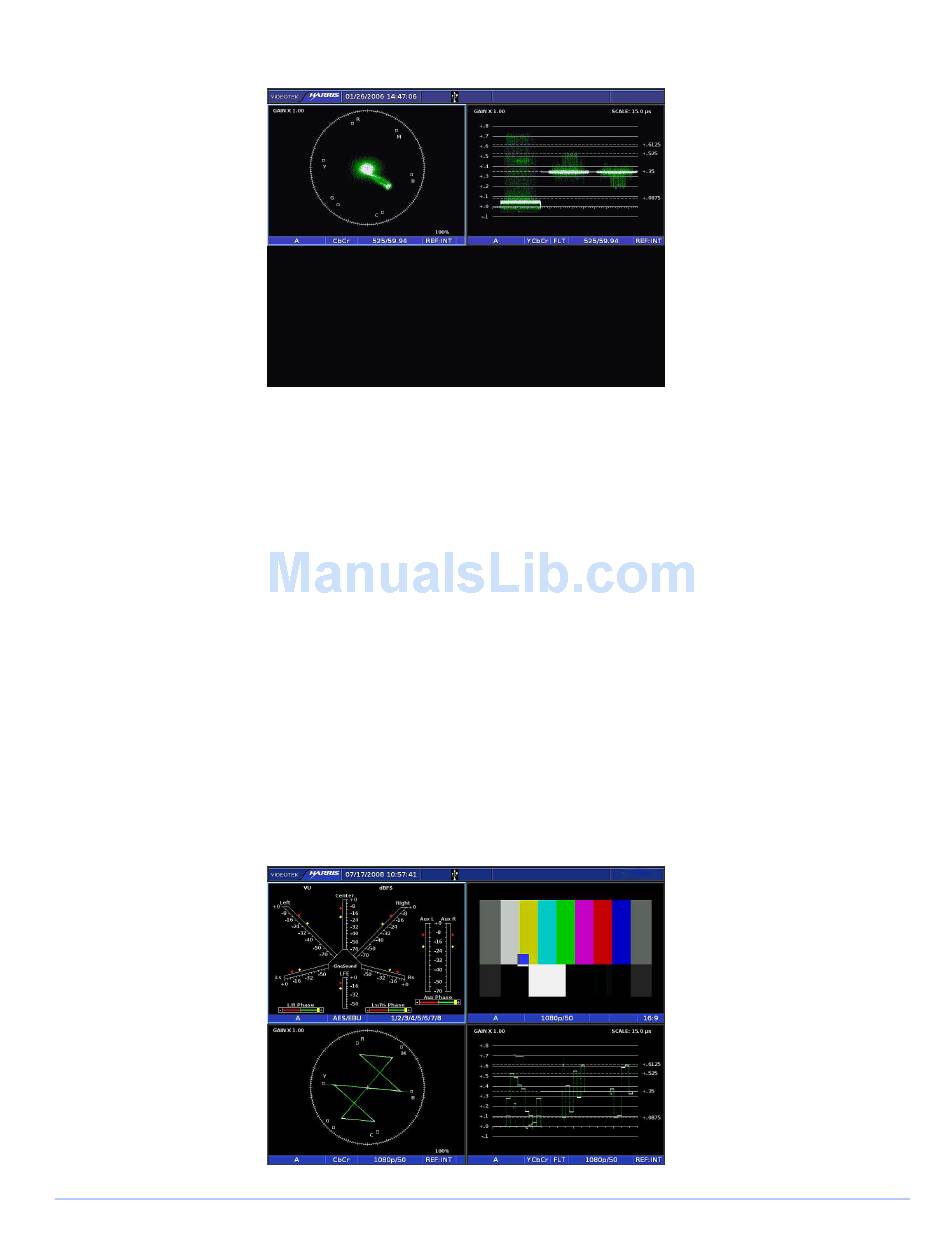

Figure 3-71. WFM/VEC Only Display

3Gb/s WFM/VEC Mode (with TVM-VTM-3GB only)

NOTE: When in 3Gb/s mode, one input should have a 3 Gb/s input in order to be functional.
The TVM-VTM-3GB has two active-looping triple-rate (2.97 Gb/s, 1.485 Gb/s, and
270 Mb/s) inputs and one-triple rate SDI monitor output. The signal from monitor
output can be the video input of the selected pane or, from a menu selection, can be an
internal test generator that displays color bars, pathological, or color bars with motion..
The generator can insert embedded audio and Video Payload ID per SMPTE 352M-
2002 ancillary data. The test signal generator is free-running and can not be genlocked
to any input or reference. The TVM-VTM-3GB supports dual-link HD-SDI 12-bit
YC C and RGB video formats.
B R

The 3 Gb/s WFM/VEC Mode Display

The default 3 Gb/s display shows the Waveform, Vector, Picture, and Audio display, as
shown in Figure 3-72. A blank pane will appear if an audio option is not installed in
the system. Any changes to the panes are remembered for future operation.
Figure 3-72. 3Gbs WFM/VEC Mode Display
128 TVM Series Installation and Operation Handbook
