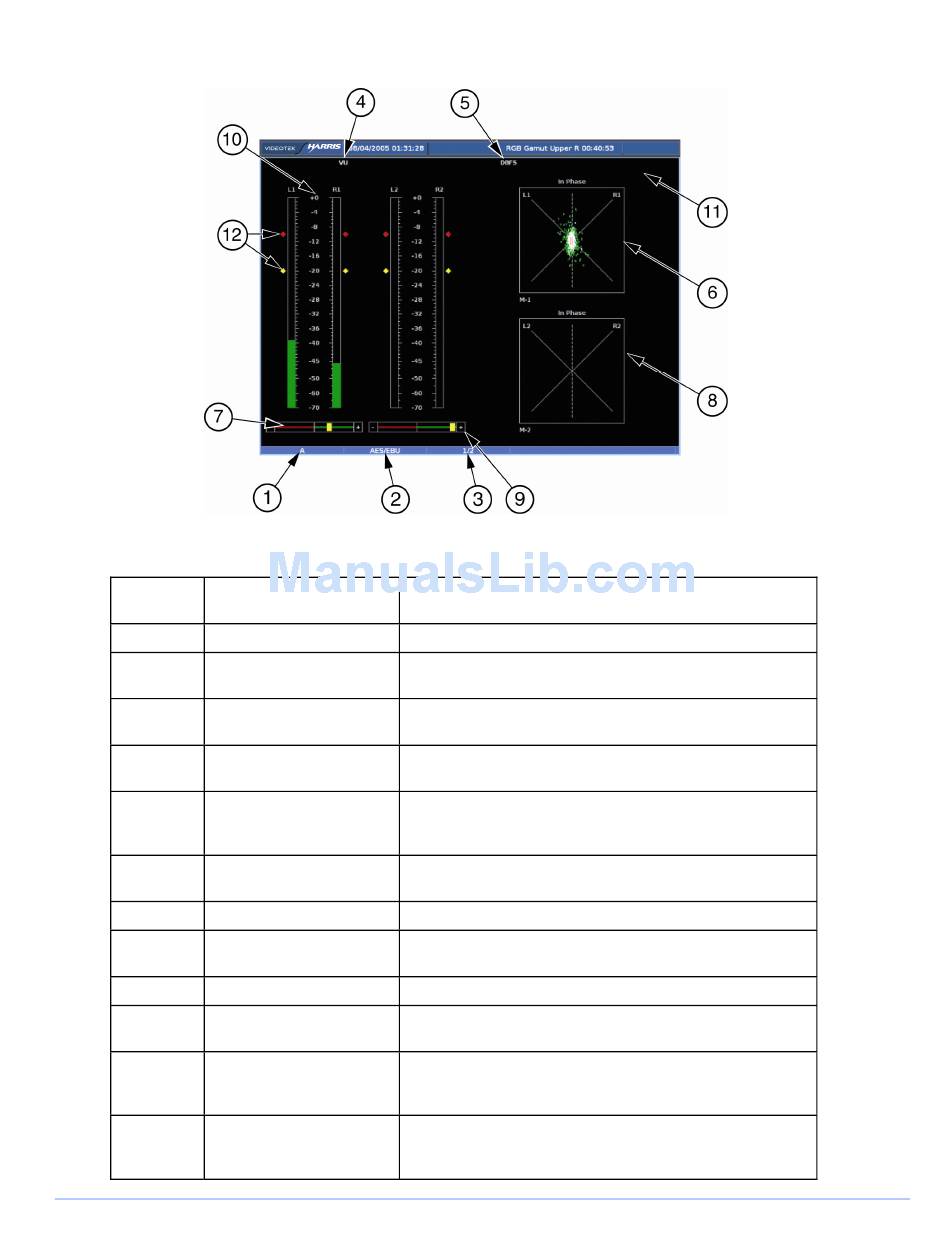

Figure 3-51. Four Bar Graph with Lissajous Display Diagram
Table 3-41. Description of Four Bar Graph with Lissajous Display Diagram
Field
Field Information
Identifier
1 Input
2 Audio Type
3 Audio Input
4 Meter Response
5 Scale Selection
6 Lissajous Display (1)
7 Phase Bar (1)
8 Lissajous Display (2)
9 Phase Bar (2)
10 Audio Graticule (with
meter labels)
11 Zoom
12 Level Markers
94
General Operation
Nomenclature
Displays user-configurable source IDs for input and routers
Displayed as Analog, AES, Embedded, Dolby AES, Dolby
Embedded
Displayed information is option dependent; shown as 1-16
(analog is 1-8, AES is 1-16 or 1-8, and Embedded is 1-16)
Displays selected meter response: VU, Peak, True Peak,
VU + Peak, VU + True Peak, Loudness, Custom
Displays the selected meter scale: Type I, Type IIa, Type
IIb, Type I + 8, Nordic, DIN 45406, dBFS, Zero REF dBFS
(scales dependent upon audio type)
Lissajous of bar graph 1 with labels for R, L, and the
number of the meter being monitored (i.e., M-1)
Phase Meter of bar graph 1
Lissajous of bar graph 1 with labels for R, L, and the
number of the meter being monitored (i.e. M-2)
Phase Meter of bar graph 2
Shown as L1, R1, L2, and R2 (or Custom label)
•
Zoom (when enabled)
• Blank when disabled
•
Press the ZOOM button to cycle through Zoom modes
Shows peak and reference levels for the signal. This can
be adjusted in the AUDIO SETUP > METER SETUP >
REF DIGITAL (or ANALOG) menu.
