Videotek TVM9100PKG Installation And Operation Handbook page 150

Table 3-60. Data Analyzer Display with TVM-VTM-3GB (Levels A and B)
Key Indicator
1 LINE
2 WORD
3 STREAM 1
4 STREAM 2
For Level B or Dual-link operation, data is represented as two separate full bandwidth
data links.

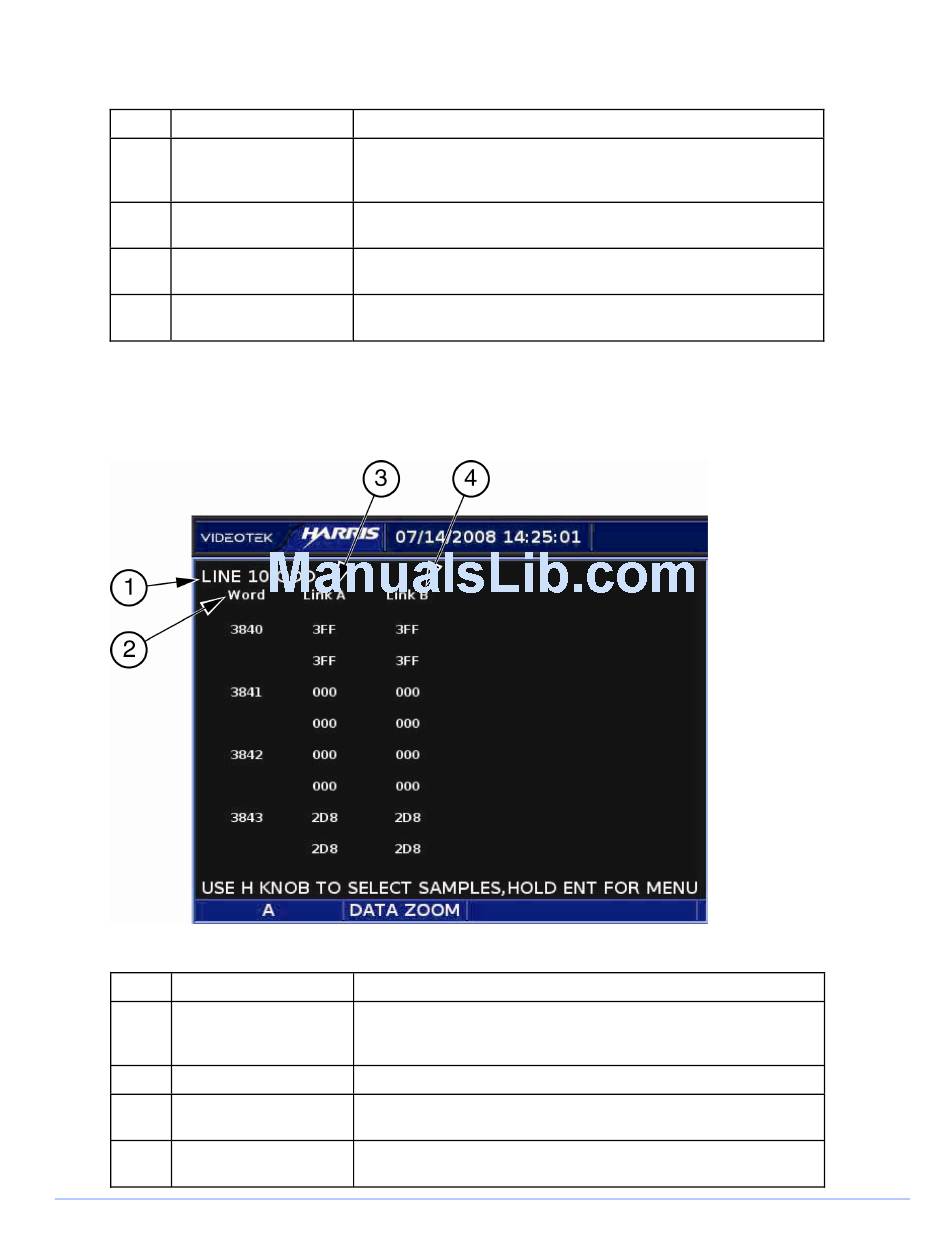

Figure 3-69. Data Analyzer Display with TVM-VTM-3GB (Dual-link)
Table 3-61. Data Analyzer Display with TVM-VTM-3GB (Level B)
Key Indicator
1 LINE
2 WORD
3 LINK A
4 LINK B
126
General Operation
Description
Indicator that shows the line number of the picture along with the
Even (E) and/or Odd (O) line selection; line number corresponds to
the cursor on the picture
Indicates the data word associate with both the Stream 1 and
Stream 2 data
Data values for Stream 1 represented as C
Decimal, Hexadecimal, or Binary form
Data values for Stream 2 represented as C
Decimal, Hexadecimal, or Binary form
Description
Indicator that shows the line number of the picture along with the
Even (E) and/or Odd (O) line selection line number corresponds to
the cursor on the picture
Indicates the data word associate with both Link A and Link B data
Data values for Link A represented as C
Hexadecimal, or Binary form
Data values for Link B represented as C
Hexadecimal, or Binary form
TVM Series Installation and Operation Handbook
Copyright © 2008, Harris Corporation
l
, Y, C , and Y in
B R
l
, Y, C , and Y in
B R
l
, Y, C , and Y in Decimal,
B R
l
, Y, C , and Y in Decimal,
B R
