Table 3-16. Description of Eye Pattern Display Diagram
Field
Field Information
Identifier
12 Jitter Display Bar
13 Jitter Value

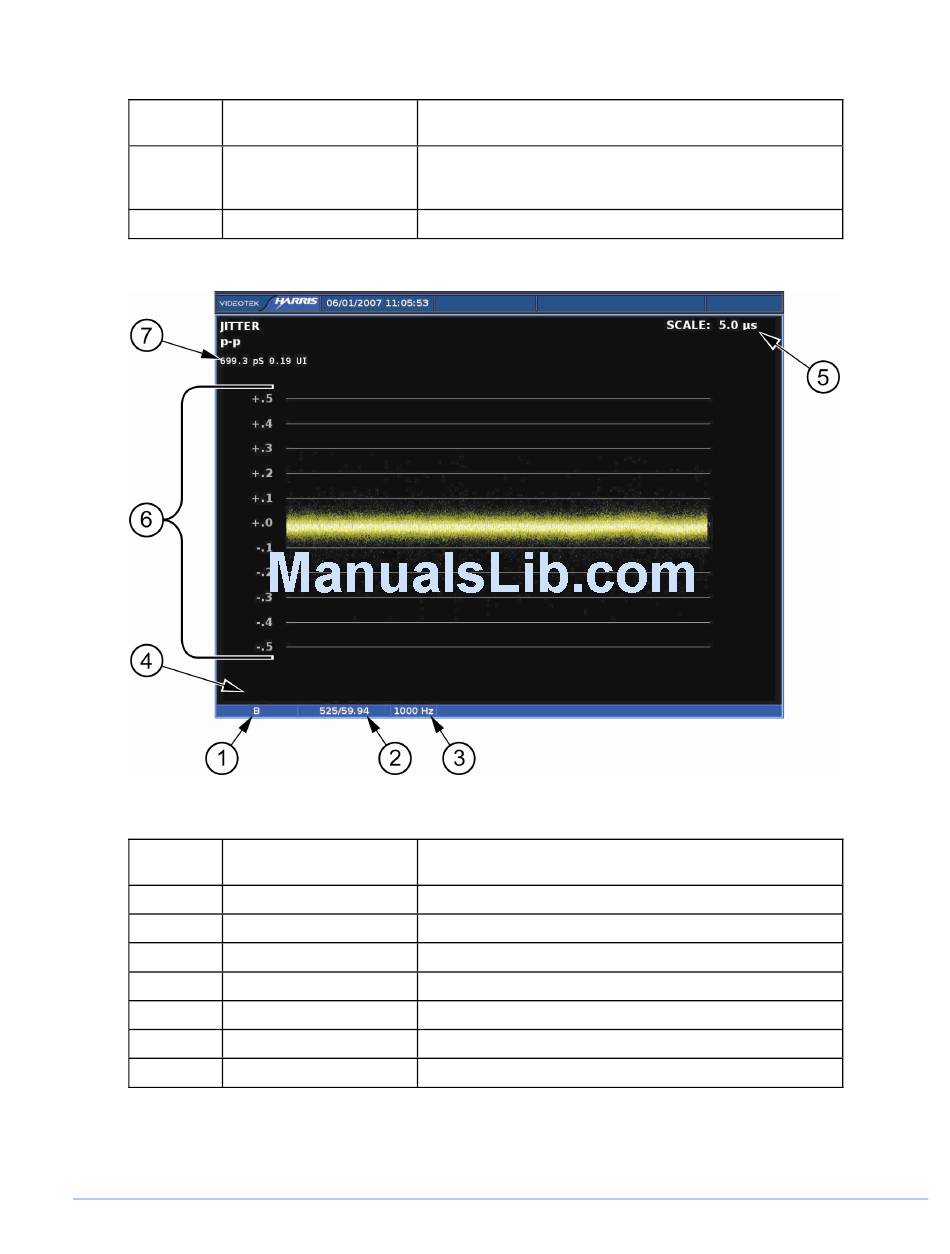

Figure 3-22. Jitter Waveform Display Diagram

Table 3-17. Description of Jitter Waveform Display Diagram

Field
Field Information
Identifier
1 Input
2 Standard
3 High Pass Filter
4 Amplitude cursor readout
5 Horizontal Jitter Scale
6 Jitter graticule
7 Jitter p-p Value
General Operation
Nomenclature
Displays the Jitter display. Jitter display changes according
to the EYE PATTERN > JITTER DISPLAY TYPE menu in
the Global Setup menu
Displays a numeric value for the jitter on the signal
Nomenclature
Displays user-configurable source IDs for input and routers
Line rate/Frame rate
Displays the selected eye filter
Displays amplitude cursor as AMP and the number in mV
Displayed in µs
Displays the Eye Pattern graticule shown in p-p
Display a numeric value for the jitter on the signal
TVM Series Installation and Operation Handbook
