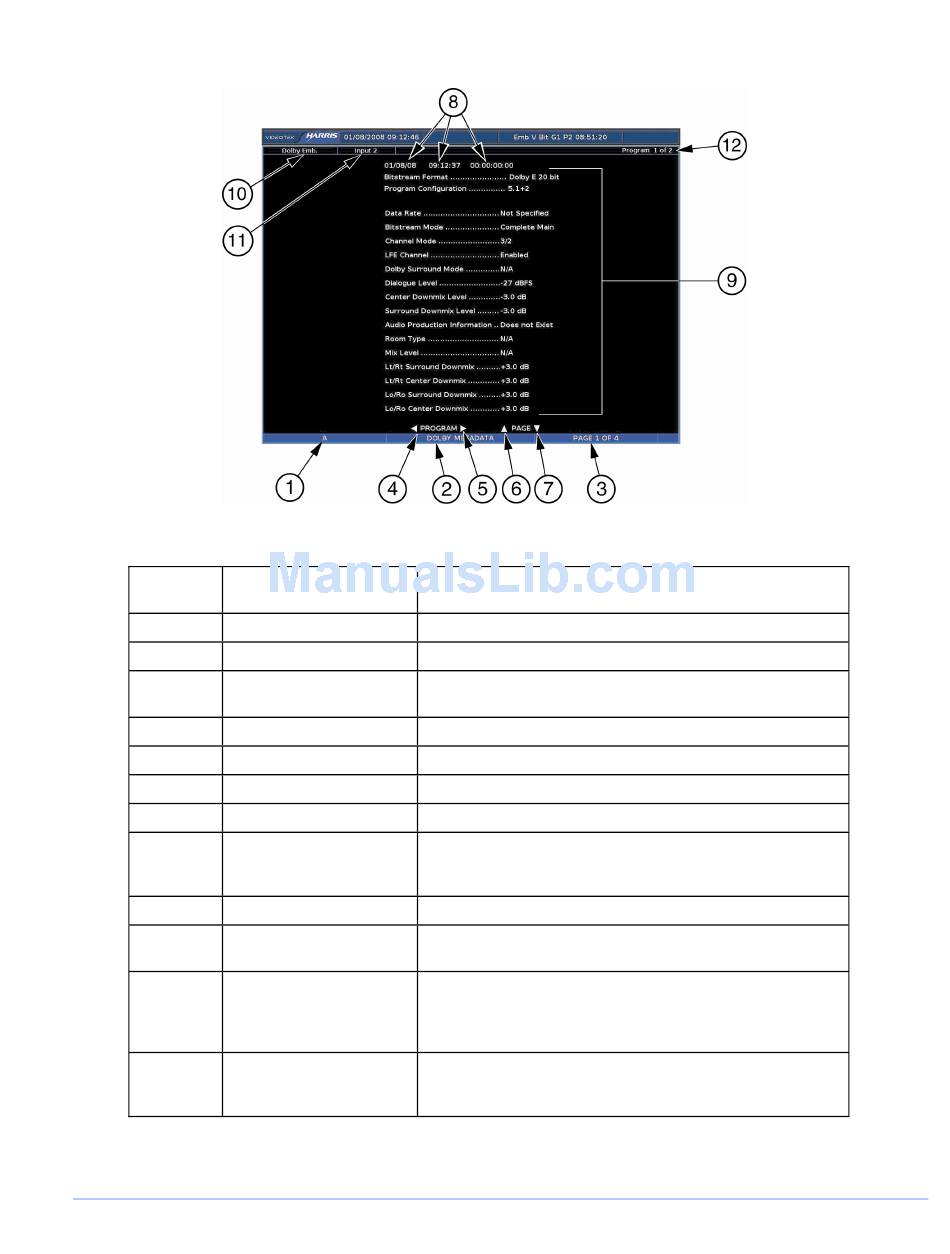

Figure 3-58. Dolby Metadata Display Diagram
Table 3-49. Description of Dolby Metadata Display Diagram
Field
Field Information
Identifier
1 Input
2 Display Label
3 Page Information
4 Paging Information
5 Paging Information
6 Paging Information
7 Paging Information
8 Date, Internal Time,
Selected Time Code, time
stamp
9 Metadata Information
10 Audio Type
11 Dolby Display INPUT
12 Program Information
General Operation
Nomenclature
Displays user-configurable source IDs for input and routers
Shown as Dolby Metadata
Shown as page X of Y where X is the page number and Y is
the total number of pages.
Displays ◄ = Previous program.
Displays ► = Next program
Displays ▲ = PAGE UP
Displays ▼ = PAGE DOWN
Date is shown as month/day/year, internal time is shown as
hour: minute: seconds, and time code is shown as hour:
minute: seconds: frame
Supplied by the A
Displayed as Analog, AES, or Embedded, Dolby AES, Dolby
Embedded
The input selected in the AUDIO SETUP > CONFIGURE
INPUT (A thru D) > DOLBY SETUP > DISPLAY INPUT menu
is the Dolby display input displayed (Dolby inputs are shown
as one digital input)
Shows how many programs are available for the current
Dolby format, and to which program the metadata
parameters apply
