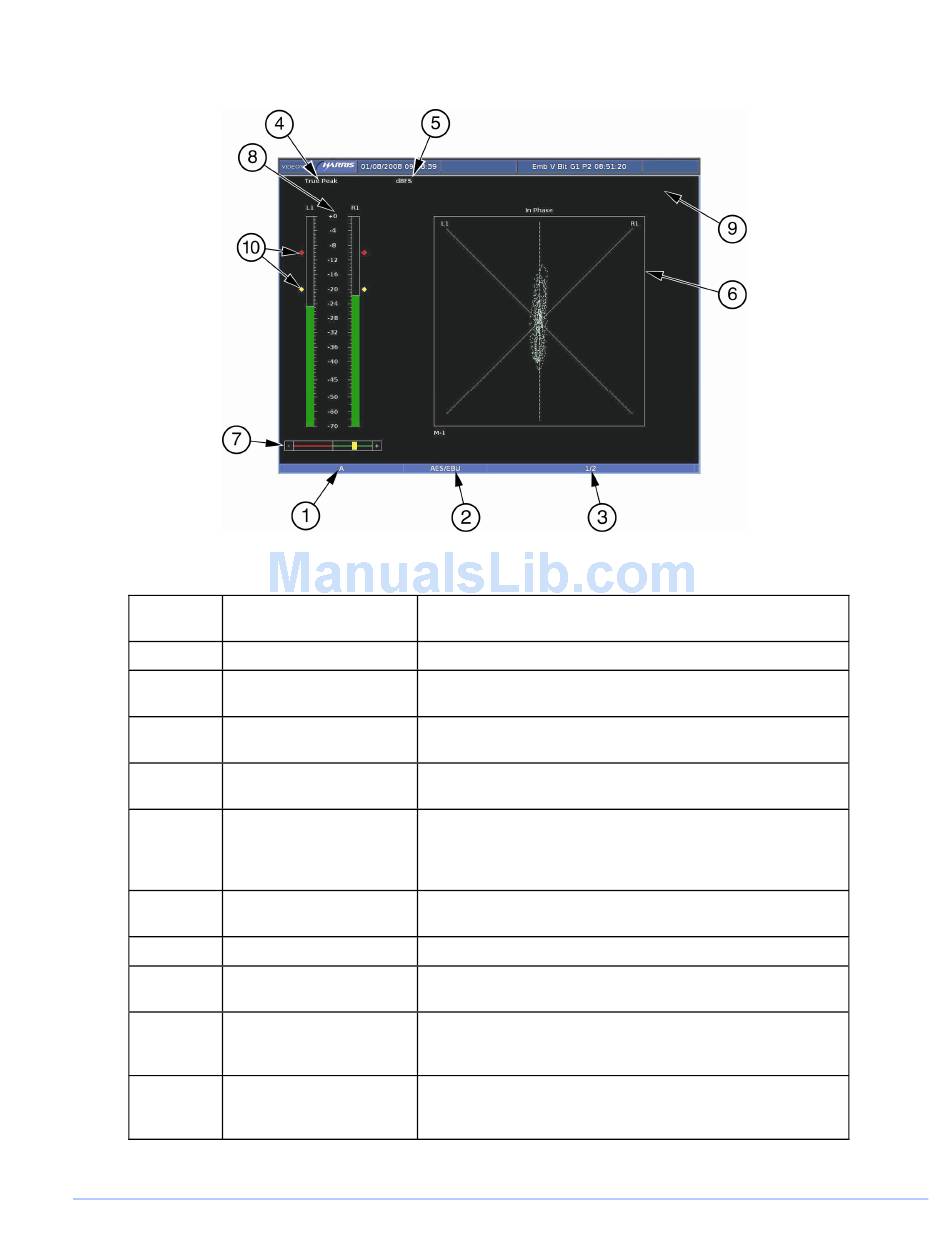

Figure 3-50. Two Bar Graph Display with Lissajous Diagram
Table 3-40. Description of Two Bar Graph Display with Lissajous Diagram
Field
Field Information
Identifier
1 Input
2 Audio Type
3 Audio Input
4 Meter Response
5 Scale Selection
6 Lissajous Display
7 Phase Bar
8 Audio Graticule (with
meter labels)
9 Zoom
10 Level Markers
General Operation
Nomenclature
Displays user-configurable source IDs for input and routers
Displayed as Analog, AES, Embedded, Dolby AES, Dolby
Embedded
Displayed information is option dependent; shown as 1-16
(analog is 1-8, AES is 1-16 or 1-8, and Embedded is 1-16)
Displays the selected meter response: VU, Peak, True Peak,
VU + Peak, VU + True Peak, Loudness, Custom
Displays the selected meter scale: Type I, Type IIa, Type IIb,
Type I + 8, Nordic, DIN 45406, dBFS, Zero REF dBFS,
Custom dB, and Custom dBFS (scales are dependent upon
audio type)
Lissajous of bar graph 1 with labels for R, L, and the number
of the meter being monitored (i.e., M-1)
Phase Meter of bar graph 1
Shown as Stereo Pairs (L1, R1), SMPTE 320M, or Custom
label
•
Zoom (when enabled)
•
Blank when disabled
• Press the ZOOM button to cycle through Zoom modes
Shows peak and reference levels for the signal; this can be
adjusted in the AUDIO SETUP > METER SETUP > REF
DIGITAL (or ANALOG) menu
