Videotek TVM9100PKG Installation And Operation Handbook page 205

until the password is entered. The Presets are locked and unlocked using the Password
screen, shown in Figure 4-5.
NOTE: The default password is 0-0-0.

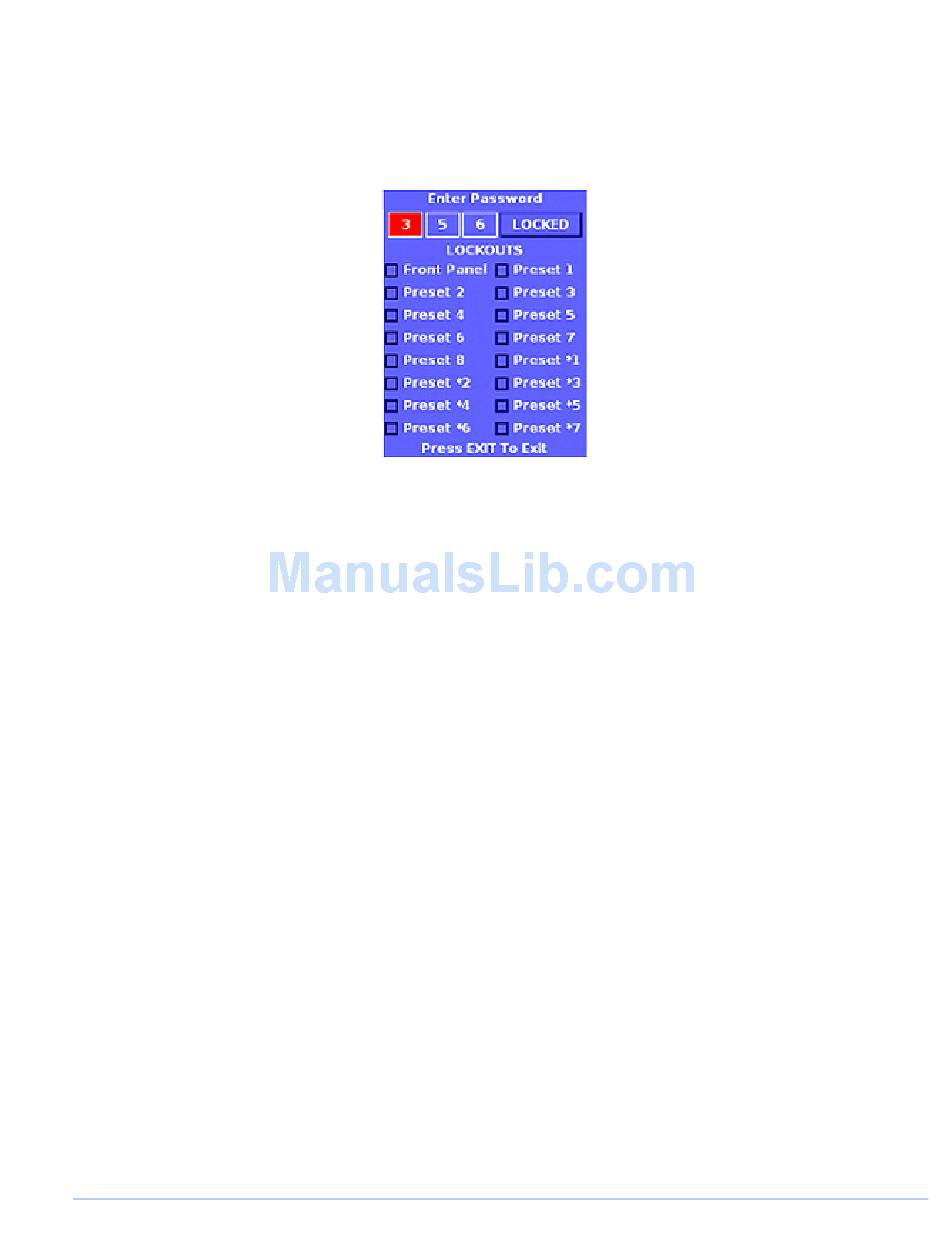

Figure 4-5. Panel and Preset Lock/Unlock Screen.
To lock or unlock the presets or front panel:
NOTE: Once Front Panel is selected to be locked out, the front panel is locked. Press the
SETUP button to enter the password to return to the Setup menu.
1. Press the SETUP button to display the SETUP MENU.
2. Use the NAVIGATION buttons to move the cursor to the SYSTEM menu.
3. Press the ENT button.
4. Use the NAVIGATION buttons to move the cursor to PANEL LOCKOUT.
5. Press the ENT button. The Enter Password screen appears.
6. Use the UP and DOWN NAVIGATION buttons to move the cursor to select 0-9
(first digit in password).
7. Use the RIGHT NAVIGATION button to select the second password number.
8. Use the UP and DOWN NAVIGATION buttons to move the cursor to select 0-9
(second digit in password).
9. Use the RIGHT NAVIGATION buttons to select the third password number.
10. Use the UP and DOWN NAVIGATION buttons to move the cursor to select 0-9
(third digit in password). When the password is correctly entered, LOCKED will
change to UNLOCK.
11. Use the RIGHT and LEFT NAVIGATION buttons to move the cursor to select
UNLOCK.
12. Press the ENT button.
13. Use the UP and DOWN NAVIGATION buttons to move the cursor to select the
Preset Number or front panel.
Global Setup Menu Functions
TVM Series Installation and Operation Handbook
Copyright © 2008, Harris Corporation
181
