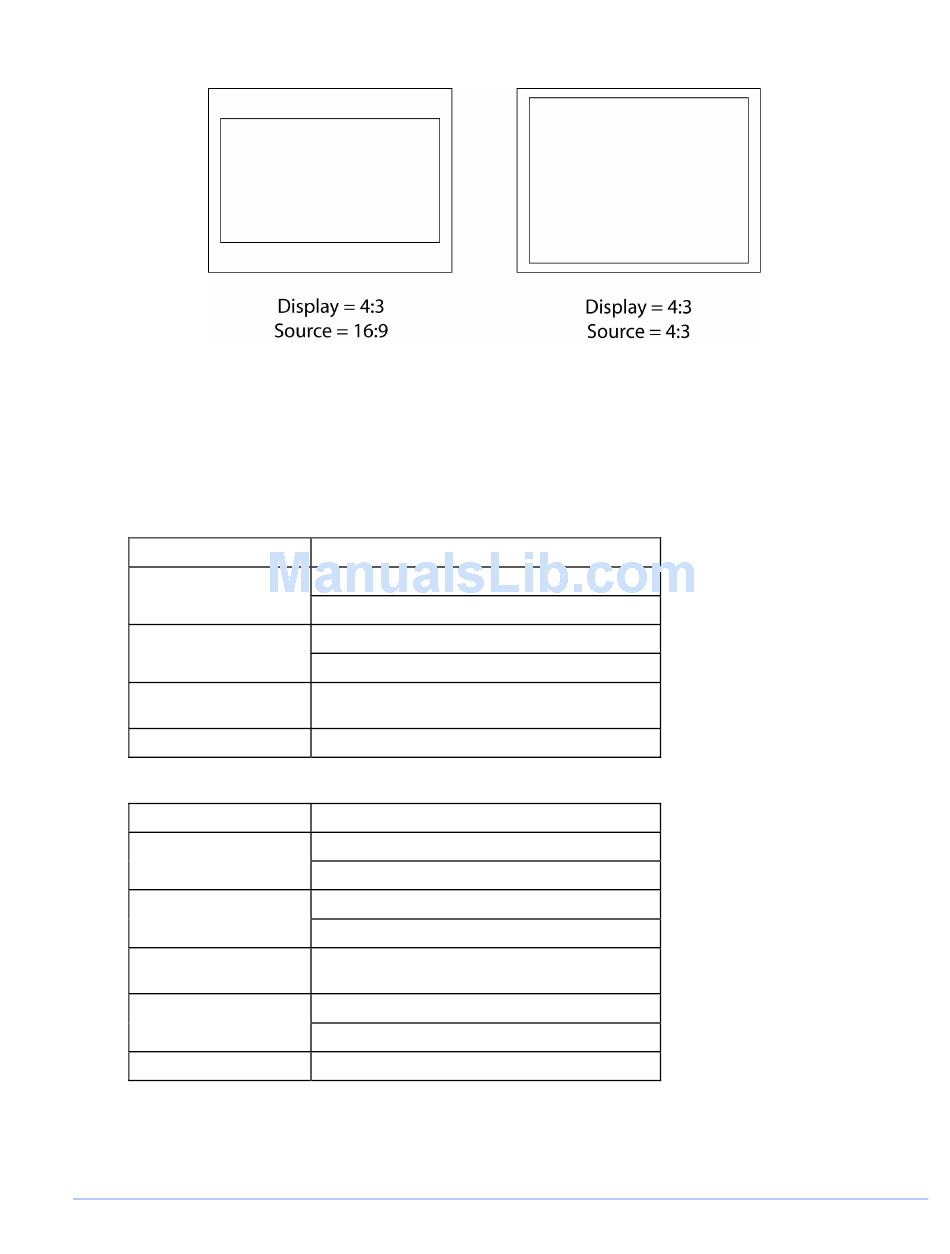

Figure 3-45. Aspect Ratio Source Diagram

Picture Pane Menu Selections

Pressing and holding the PICT function button or the DISPLAY PANE button in the
active picture pane selects the pane menu. The Picture Pane menus are described in
Table 3-32 to Table 3-34 for picture monitoring.
Table 3-32. Picture Analog Menu
Selection
NATIVE
DELAY
DELAY POSITION
PICTURE SETUP
Table 3-33. Picture SD Menu
Selection
NATIVE
DELAY
DELAY POSITION
GAMUT
HIGHLIGHTING
PICTURE SETUP
General Operation
Selection Option
OFF
ON
ON
OFF
Use the H POS and V POS knobs. Press KNOB
for default.
Press ENT
Selection Option
OFF
ON
ON
OFF
Use the H POS and V POS knobs. Press KNOB
for default.
ON
OFF
Press ENT
