Appendix B ♦ Pinouts

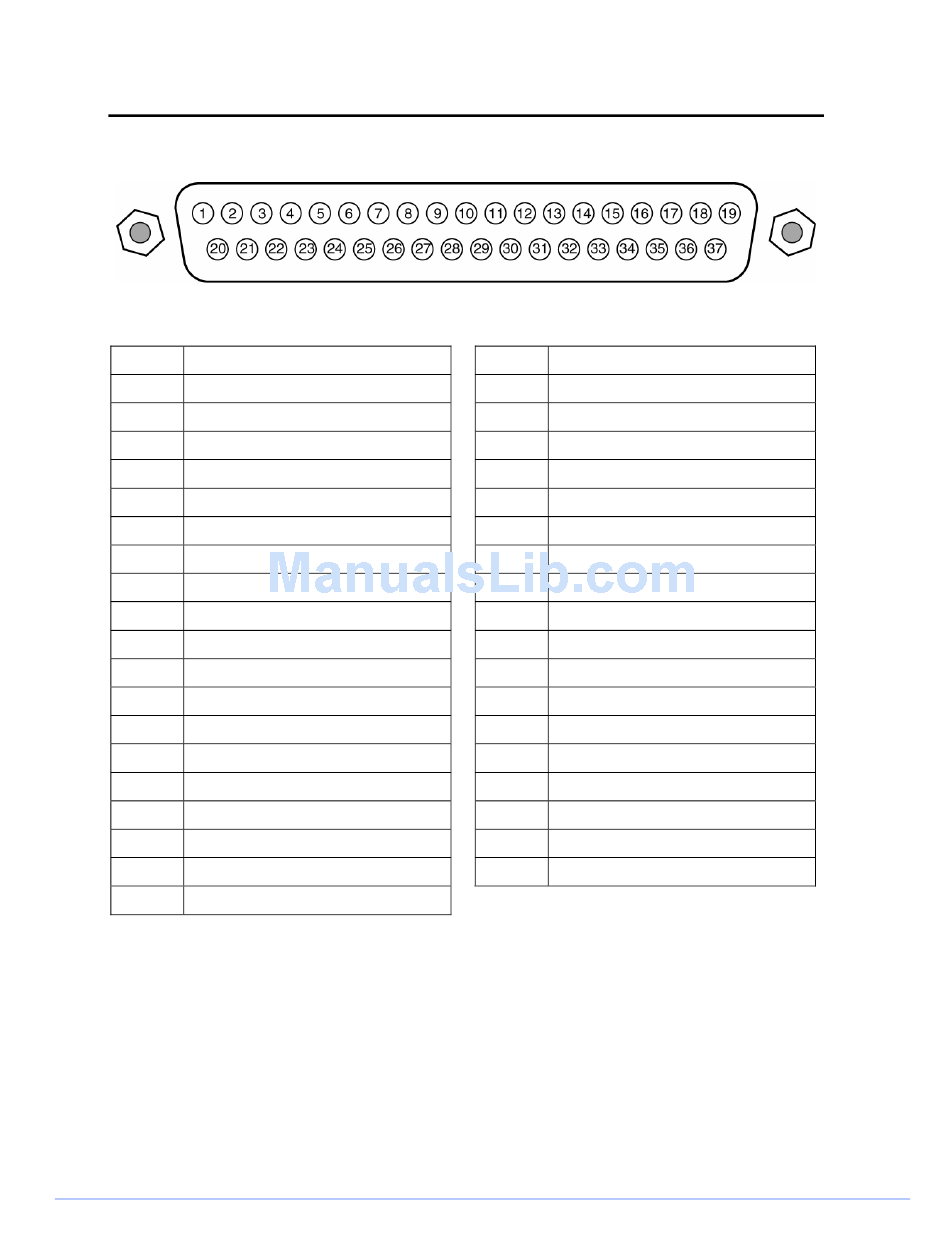

Figure B-1. ANALOG AUDIO IN/OUT 37-pin, Male, D-sub Connector For Audio Options
Table B-1. Pinouts for ANALOG AUDIO IN/OUT Connector and Audio Breakout Board
Pinout Signal
1 Analog input 1 –
2 Analog input 2 –
3 Analog input 3 –
4 GND
5 Analog input 4 –
6 Analog input 5 –
7 Analog input 6 –
8 Analog input 7 –
9 Analog input 8 –
10 GND
11 Analog output 1 –
12 Analog output 2 –
13 Analog output 3 –
14 Analog output 4 –
15 Analog output 5 –
16 Analog output 6 –
17 Analog output 7 –
18 Analog output 8 –
19 GND
Pinout
TVM Series Installation and Operation Handbook
Copyright © 2008, Harris Corporation
Signal
20 Analog input 1 +
21 Analog input 2 +
22 Analog input 3 +
23 Analog input 4 +
24 Analog input 5 +
25 Analog input 6 +
26 GND
27 Analog input 7 +
28 Analog input 8 +
29 Analog output 1 +
30 Analog output 2 +
31 Analog output 3 +
32 Analog output 4 +
33 Analog output 5 +
34 Analog output 6 +
35 Analog output 7 +
36 Analog output 8 +
37 GND
