Table 3-5. Video Formats and Critical Amplitude Limits

Video Format
High Definition and Standard Definition
Standard Definition 525 as Composite (NTSC)
A waveform display is shown in Figure 3-6 and described in Table 3-6. The figure
shows the location for the various waveform display fields.

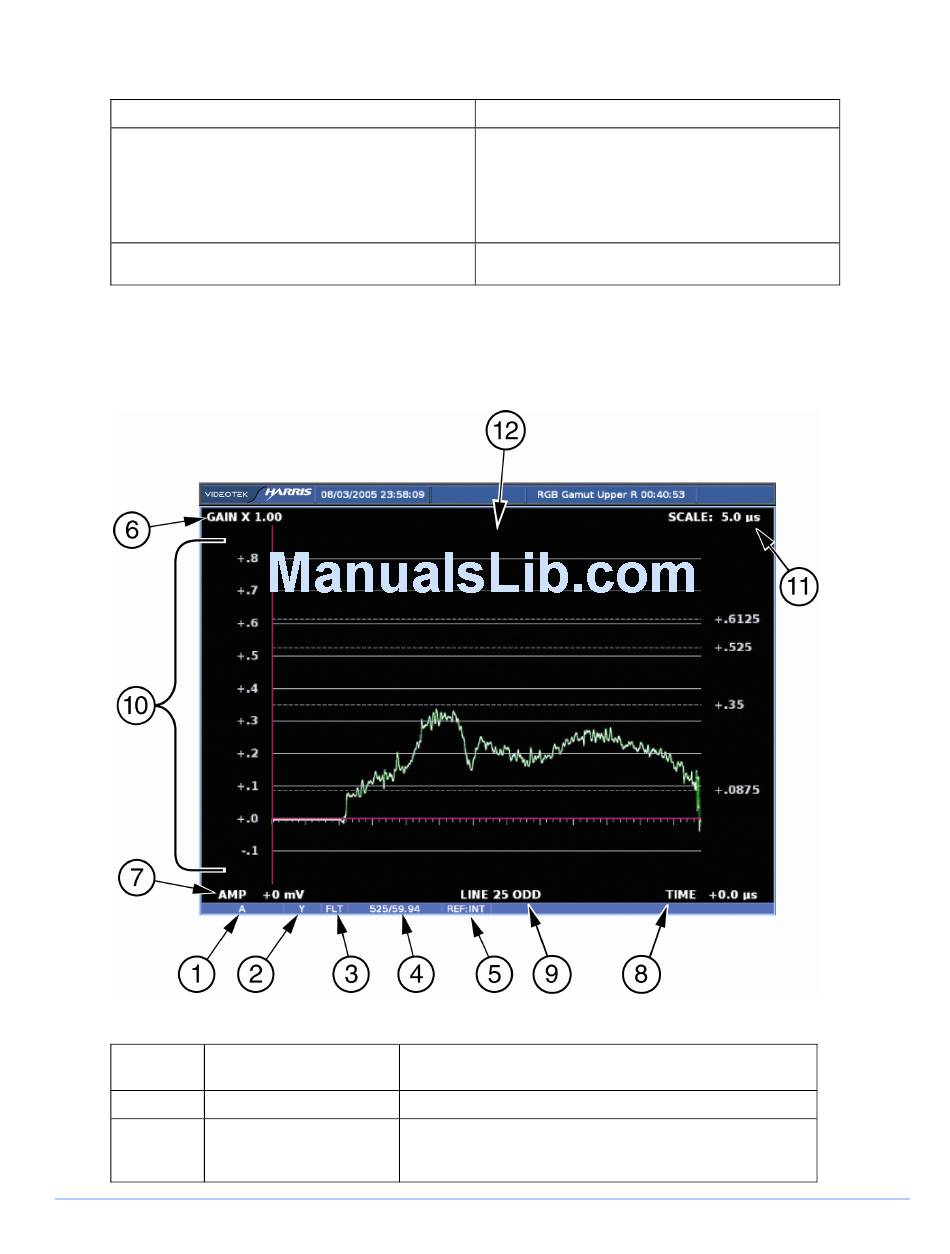

Figure 3-6. Waveform Display Diagram

Table 3-6. Description of Waveform Display Diagram

Field
Field information
Identifier
1 Input
2 Format
32
General Operation
Critical Amplitude Limits
0.6125 V = upper 75% chroma limit
0.525 V = 75% luminance limit
0.350 V = 50% point; black for color difference
channels
0.0875 V = lower 75% chroma limit
7.5 IRE – black level
Nomenclature
Displays user-configurable source IDs for input and routers
Displayed as YC
(CMPST); this can be selected in the HD FORMAT or SD
FORMAT submenu of the WFM Pane menu
