The TVM has enough memory for 200 alarms per input. When 200 different alarm
events have occurred, alarm number 200 is dropped and the most recent alarm is
tagged as 1. Use the UP or DOWN NAVIGATION buttons to scroll through the alarm

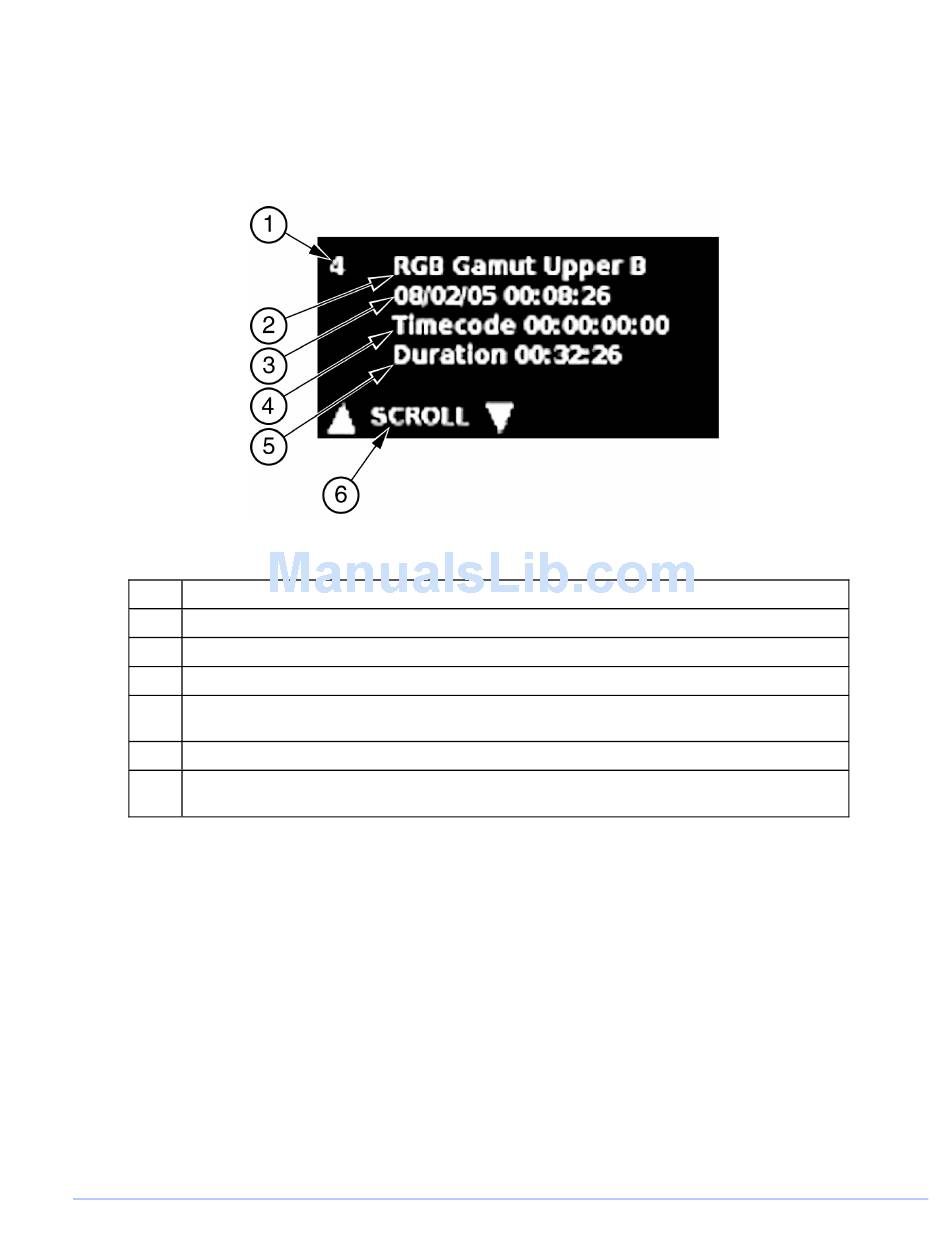

list. Figure 3-65 shows a sample alarm in TVM Classic mode.
Figure 3-65. Sample Alarm Message
Table 3-57. Description of Sample Alarm Message
Key Description
1 Index number, from 1-200
2 Alarm type, which describes the error
3 Date and time (the internal clock setting in month/day/year and hour:minute:second)
Time code, which is from the LTC/CLOCK, VITC, or D-VITC (shown in
4
day:hour:minute:second:frame)
5 Duration, which is the length of time that the error occurred (shown in hour:minute:second)
Scroll UP and DOWN indication. Use the UP and DOWN NAVIGATION buttons to scroll through
6
the alarm list.

Data Analyzer Display (HD-SDI and SD-SDI Only)

NOTE 1: Data display only operates with Digital Inputs.
NOTE 2: When Data Analyzer is utilized, the unit is forced into Line Select mode.
Pressing and holding the MLT button accesses the MLT DISPLAY menu. From the
MLT DISPLAY menu, select DATA ANALYZER to display the data word analyzer.
The data display contains the data and the picture zoom box. A picture zoom box also
appears in the picture display.
To navigate through the Data display, select the Data pane. Once selected, press the UP
NAVIGATION button to page up the Data Display. Press the DOWN NAVIGATION
button to page down the Data Display.
The data samples per page actually represent two unique pixels. Both of these pixels
have exactly the same color information, formed from the combination of one C
one C sample. That color information is combined with the first Y sample (the
R
General Operation
TVM Series Installation and Operation Handbook
Copyright © 2008, Harris Corporation
and
B
119
