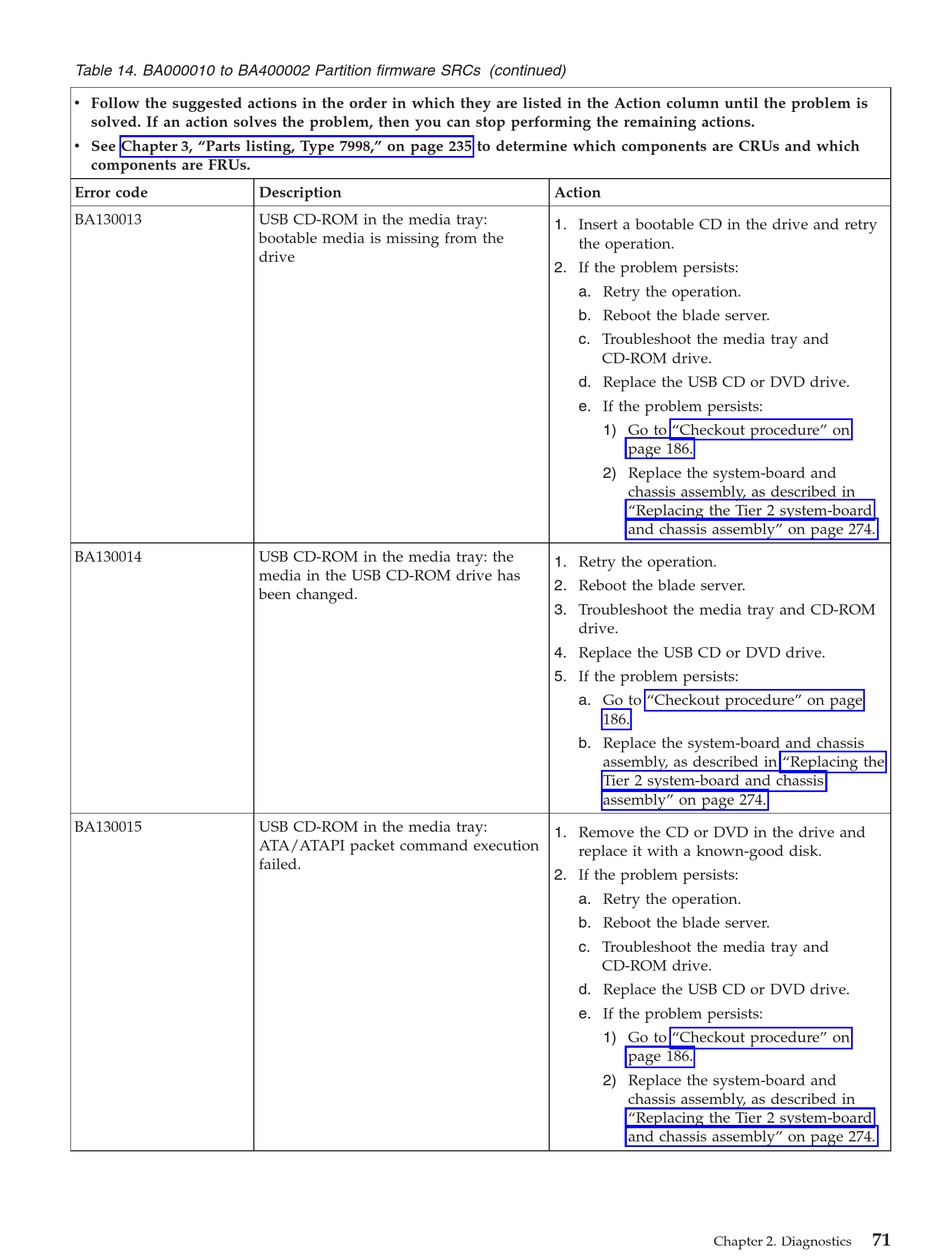

Table 14. BA000010 to BA400002 Partition firmware SRCs (continued)
v Follow the suggested actions in the order in which they are listed in the Action column until the problem is
solved. If an action solves the problem, then you can stop performing the remaining actions.
v See Chapter 3, "Parts listing, Type 7998," on page 235 to determine which components are CRUs and which
components are FRUs.
Error code
BA130013
BA130014
BA130015
Description
USB CD-ROM in the media tray:
bootable media is missing from the
drive
USB CD-ROM in the media tray: the
media in the USB CD-ROM drive has
been changed.
USB CD-ROM in the media tray:
ATA/ATAPI packet command execution
failed.
Action
1. Insert a bootable CD in the drive and retry
the operation.
2. If the problem persists:
a. Retry the operation.
b. Reboot the blade server.
c. Troubleshoot the media tray and
CD-ROM drive.
d. Replace the USB CD or DVD drive.
e. If the problem persists:
1) Go to "Checkout procedure" on
page 186.
2) Replace the system-board and
chassis assembly, as described in
"Replacing the Tier 2 system-board
and chassis assembly" on page 274.
1. Retry the operation.
2. Reboot the blade server.
3. Troubleshoot the media tray and CD-ROM
drive.
4. Replace the USB CD or DVD drive.
5. If the problem persists:
a. Go to "Checkout procedure" on page
186.
b. Replace the system-board and chassis
assembly, as described in "Replacing the
Tier 2 system-board and chassis
assembly" on page 274.
1. Remove the CD or DVD in the drive and
replace it with a known-good disk.
2. If the problem persists:
a. Retry the operation.
b. Reboot the blade server.
c. Troubleshoot the media tray and
CD-ROM drive.
d. Replace the USB CD or DVD drive.
e. If the problem persists:
1) Go to "Checkout procedure" on
page 186.
2) Replace the system-board and
chassis assembly, as described in
"Replacing the Tier 2 system-board
and chassis assembly" on page 274.
Chapter 2. Diagnostics
71
