FC 300 Design Guide

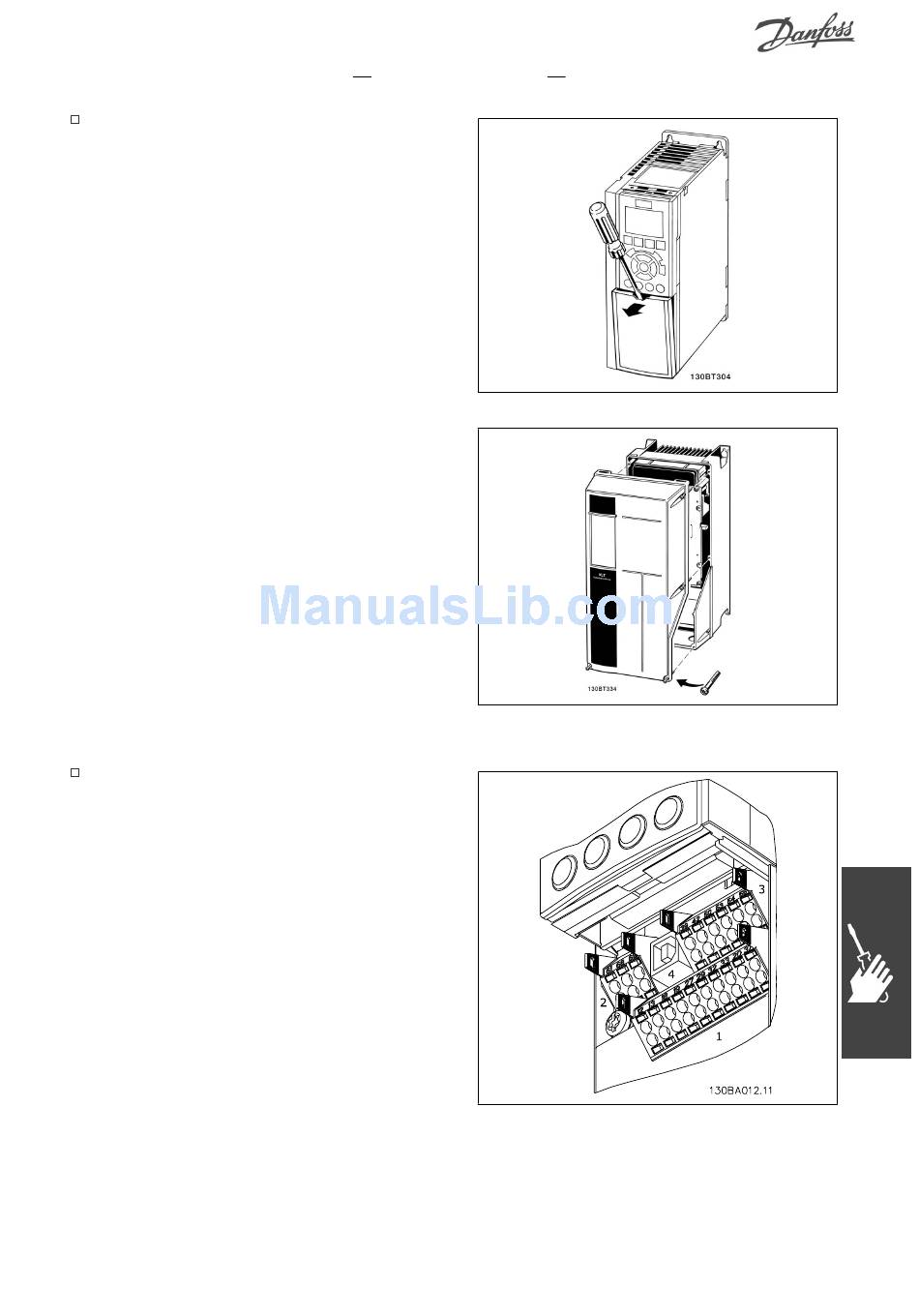

Access to Control Terminals
All terminals to the control cables are located un-
derneath the terminal cover on the front of the
frequency converter. Remove the terminal cover
by means of a screwdriver (see illustration).
Control Terminals (FC 301)
Drawing reference numbers:
1.
8 pole plug digital I/O.
2.
3 pole plug RS485 Bus.
3.
6 pole analog I/O.
4.
USB Connection .
Control Terminals (FC 302)
Drawing reference numbers:
1.
10 pole plug digital I/O.
2.
3 pole plug RS485 Bus.
3.
6 pole analog I/O.
4.
USB Connection .
How to Install
A1, A2 and A3 enclosures
A5, B1 and B2 enclosures
Control terminals (all enclosures)
MG.33.B7.02 - VLT is a registered Danfoss trademark
83
