FC 300 Design Guide

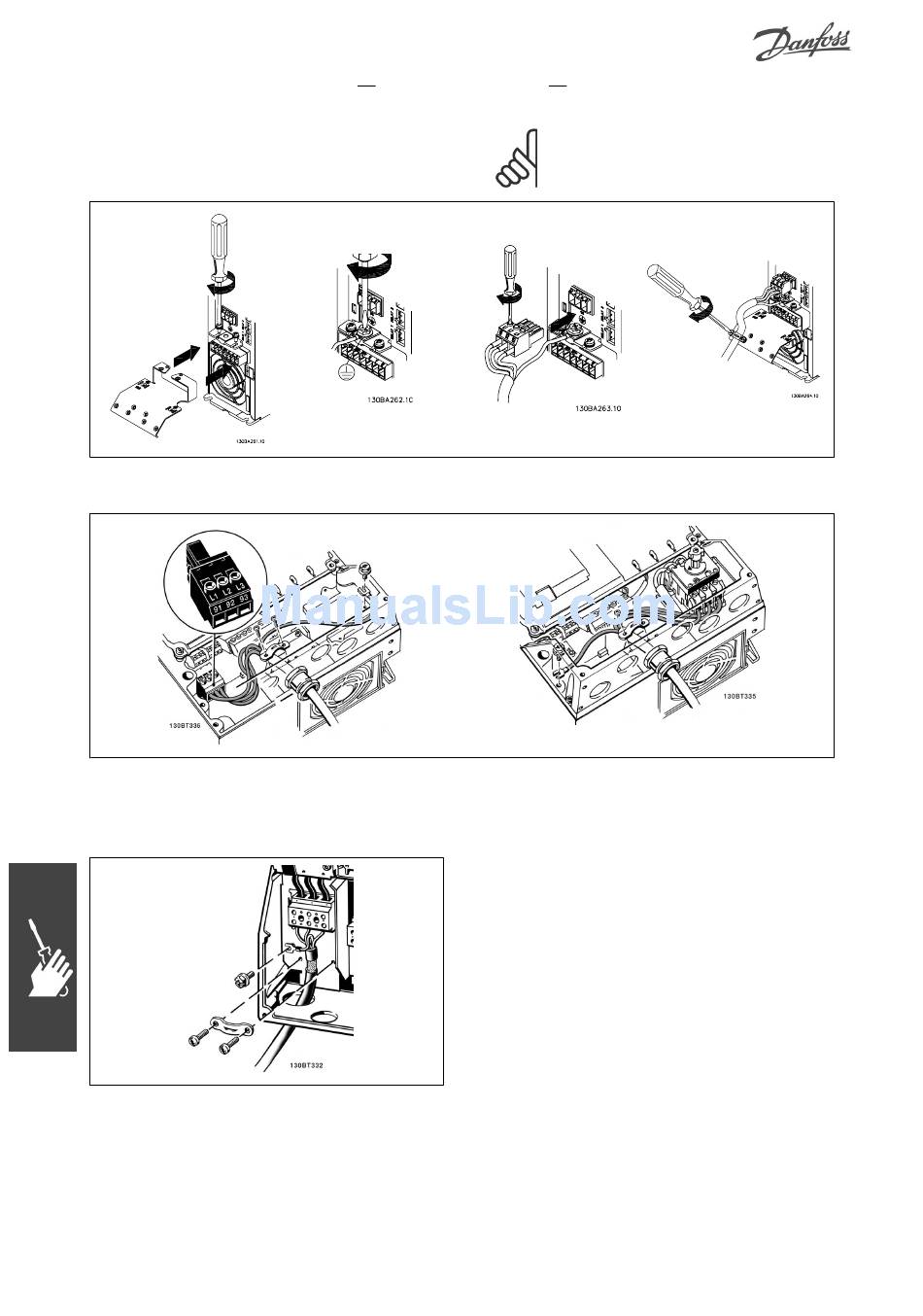

Mains connection for A1, A2 and A3 frame sizes:
Mains connector A5 (IP 55 ) Enclosure
When disconnector is used (A5 enclosure) the PE must be mounted on the left side of the drive.
Mains connection B1 and B2 (IP 21/NEMA Type1
and IP 55/NEMA Type12) Enclosures
78
How to Install
Usually the power cables for mains are unshielded ca-
bles.
MG.33.B7.02 - VLT is a registered Danfoss trademark
NB!
The plug connector for power can be
removed.
