FC 300 Design Guide

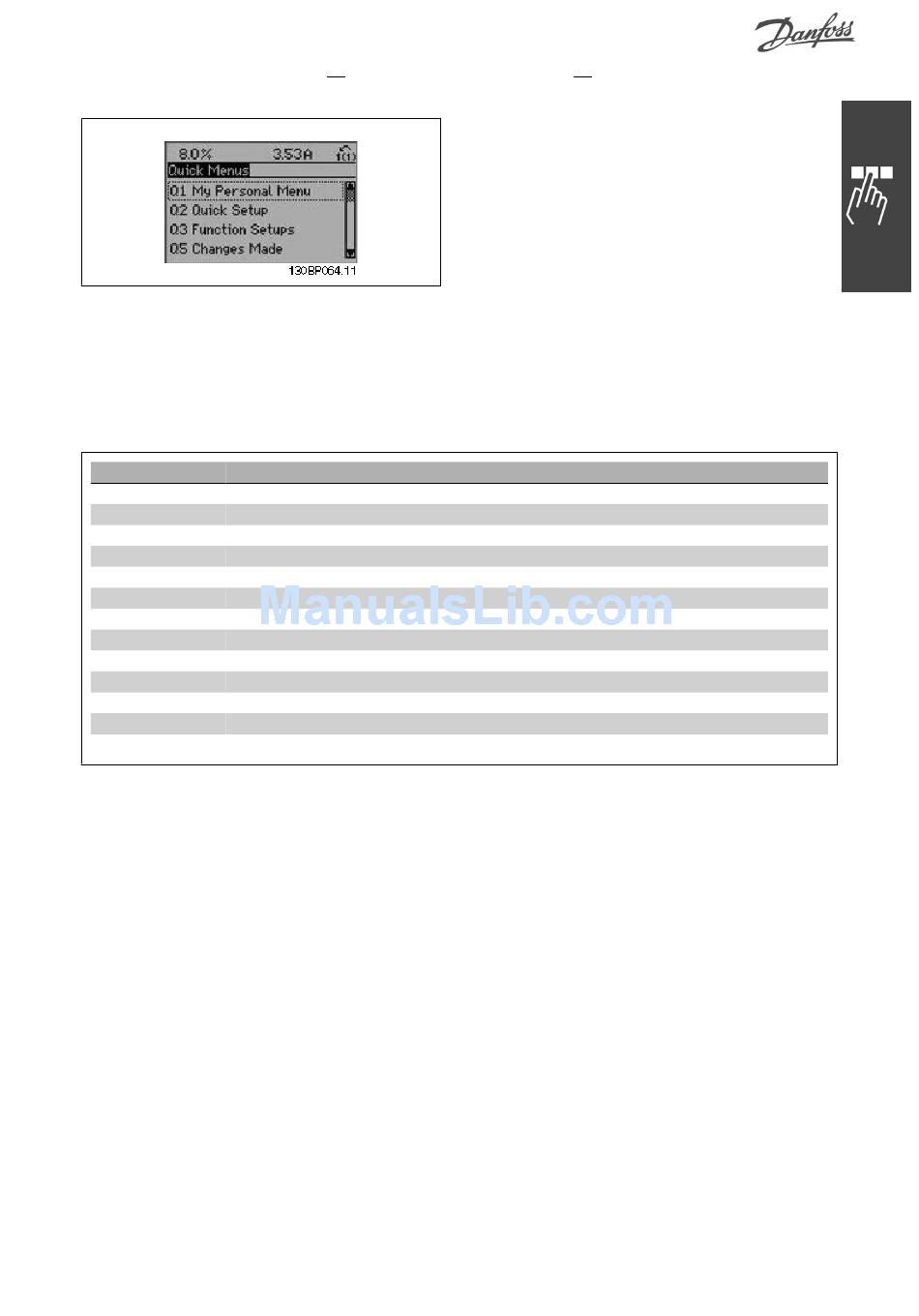

Select Quick setup to go through a limited amount of parameters to get the motor running almost opti-
mally. The default setting for the other parameters considers the desired control functions and the
configuration of signal inputs/outputs (control terminals).
The selection of parameter is effected by means of the arrow keys. The parameters in the following table
are accessible.
Parameter Designation
0-01 Language
1-20 Motor Power
1-22 Motor Voltage
1-23 Motor Frequency
1-24 Motor Current
1-25 Motor Nominal Speed
5-12 Terminal 27 Digital Input
1-29 Automatic Motor Adaptation (AMA)
3-02 Min Reference
3-03 Max Reference
3-41 Ramp 1 Ramp-up Time
3-42 Ramp 1 Ramp-down Time
3-13 Reference Site
* If no connection in terminal 27 is selected no connection to +24 V on terminal 27 necessary.
Select Changes made to get information about:
• the last 10 changes. Use the up/down
navigation keys to scroll between the last
10 changed parameters.
• the changes made since default setting.
How to Programme
Select Loggings to get information about the dis-
play line read-outs. The information is shown as
graphs.
Only display parameters selected in par. 0-20 and
par. 0-24 can be viewed. It is possible to store up
to 120 samples in the memory for later reference.
MG.33.B7.02 - VLT is a registered Danfoss trademark
Setting
[kW]
[V]
[Hz]
[A]
[rpm]
[0] No function*
[1] Enable complete AMA
[rpm]
[rpm]
[sec]
[sec]
113
