Resolver Option MCB 103

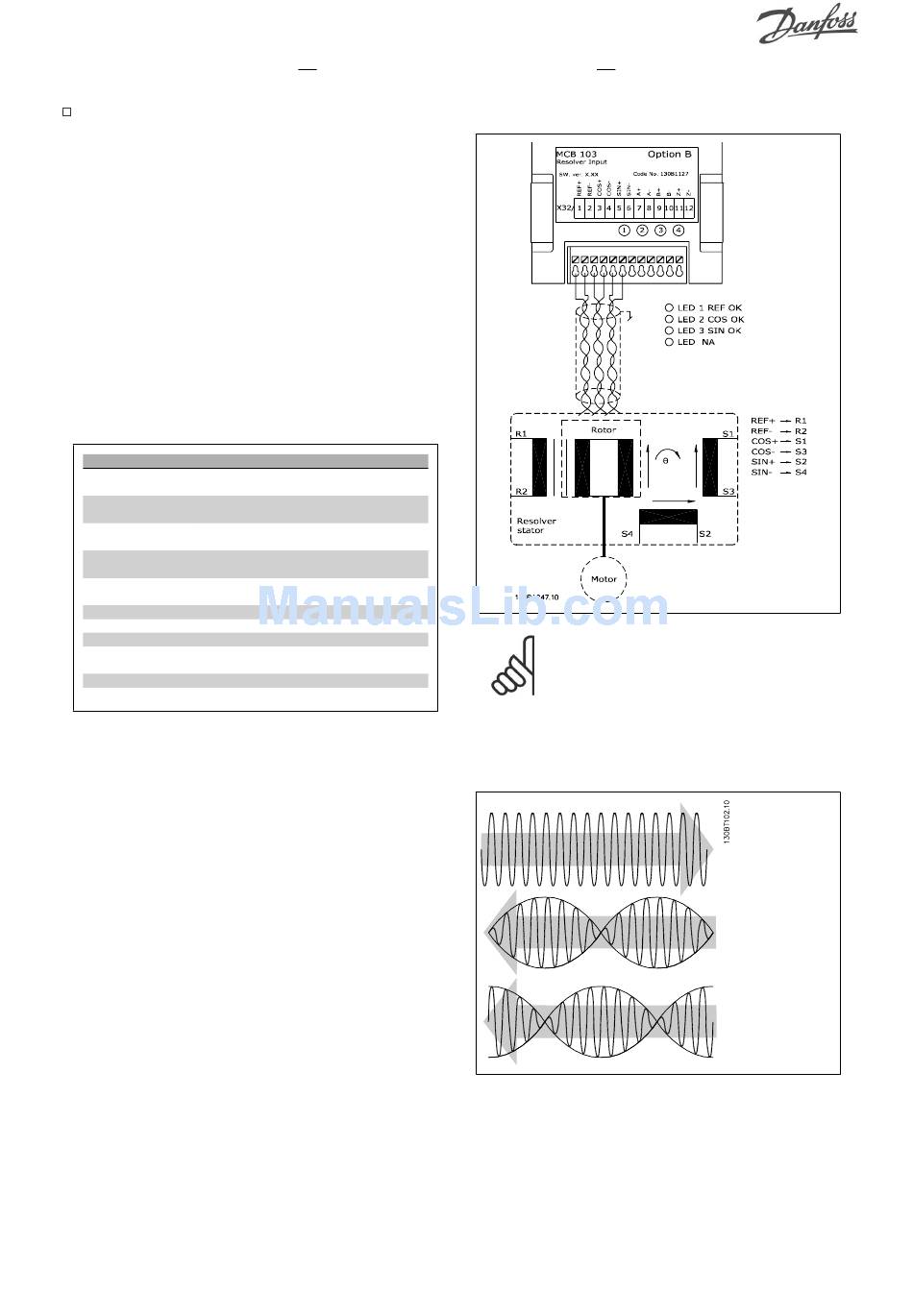

MCB 103 Resolver option is used for interfacing
resolver motor feedback to FC 300 Automation-
Drive. Resolvers are used basically as motor feed-
back device for Permanent Magnet brushless
synchronous motors. When the Resolver option is
ordered separately the kit includes:
• Resolver option MCB 103
• Enlarged LCP fixture and enlarged termi-
nal cover
Selection of parameters: 17-5x resolver Inter-
face.
The resolver interface must support one resolver
with the following specifications:
Resolver specifications:
MCB 103 Resolver Option supports a various number of re-
solver types.
Number of poles Par 17-50: 2 *2
on resolver
Resolver input Par 17-51: 2.0 – 8.0 Vrms *7.0V
voltage
Carrier frequency Par 17-52: 2 – 15 kHz
(Ref. voltage) *10.0 kHz
Transformation Par 17-53: 0.1 – 1.1 *0.5
ratio
Primary votlage 2-8 Vrms
Primary frequency 2 kHz - 15 kHz
Primary current Max. 50 mArms
Secondary input Max 8 Vrms
voltage
Secondary load App. 10 kΩ
Cable length Up to 150 m
Note: Cables MUST be shielded and separated
from the motor cables.
LED indicators
LED 1 is on when the reference signal is OK to re-
solver
LED 2 is on when Cosinus signal is OK from re-
solver
LED 3 is on when Sinus signal is OK from resolver
The LEDs are active when par. 17-61 is set to
Warning or Trip.
Options and Accessories
MG.33.B7.02 - VLT is a registered Danfoss trademark
NB!
The resolver option MCB 103 can only
be used with rotor-supplied resolver
types. Stator-supplied resolvers can-
not be used.
