FC 300 Design Guide
from a range of sources: LCP, FC RS485, FC USB
or up to five fieldbus sites.

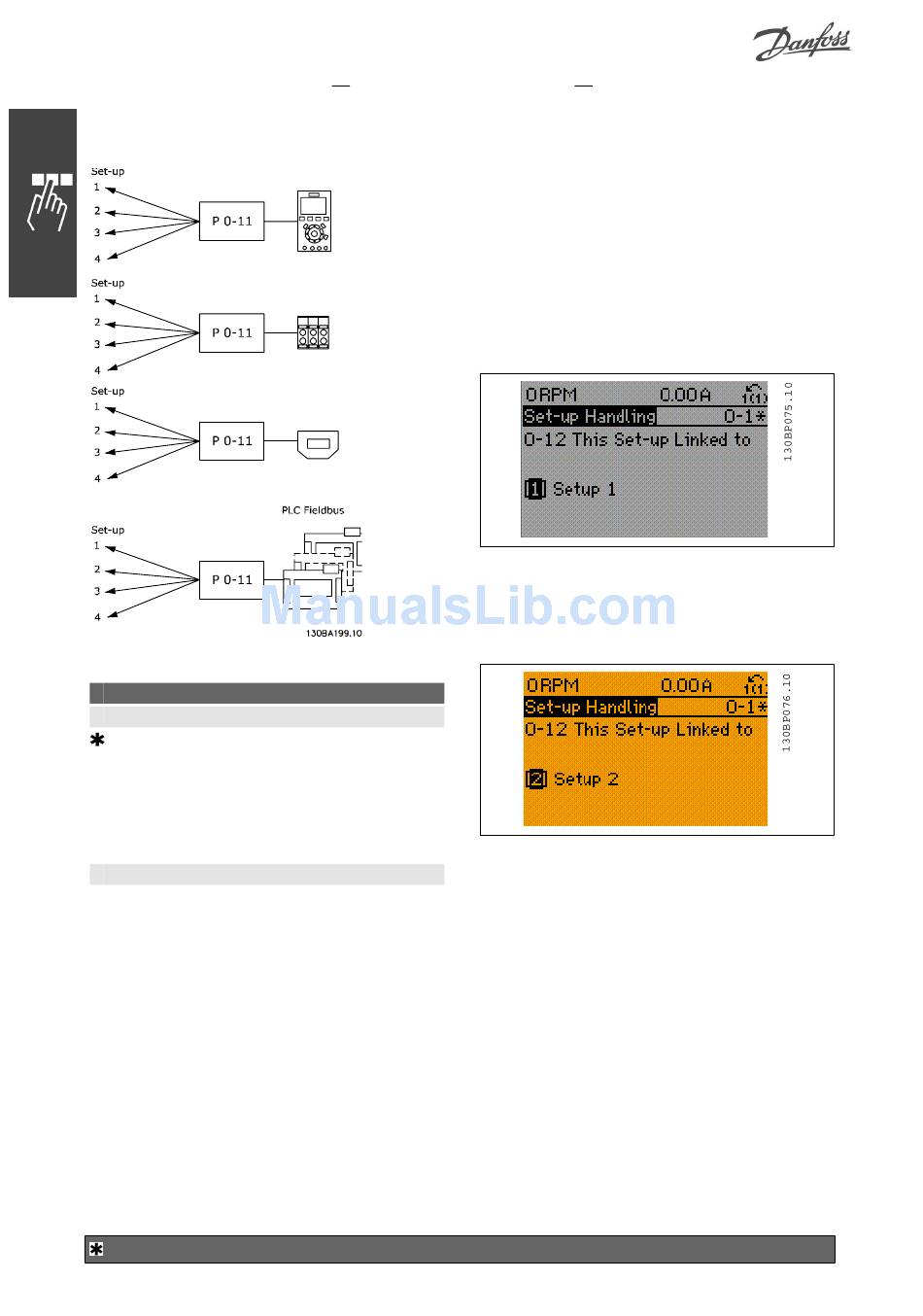

0-12 This Set-up Linked to
Value:
Not linked
Set-up 1
Set-up 2
Set-up 3
Set-up 4
Function:
To enable conflict-free changes from one set-up to
another during operation, link set-ups containing
parameters which are not changeable during op-
eration. The link will ensure synchronising of the
'not changeable during operation' parameter val-
ues when moving from one set-up to another dur-
ing operation. 'Not changeable during operation'
parameters can be identified by the label FALSE in
the parameter lists in the section Parameter
Lists.
The par. 0-12 link set-up feature is used by Multi
set-up in par. 0-10 Active Set-up. Multi set-up is
factory setting
124
How to Programme
[0]
[1]
[2]
[3]
[4]
() display text [] value for use in communication via serial communication port
MG.33.B7.02 - VLT is a registered Danfoss trademark
used to move from one set-up to another during
operation (i.e. while the motor is running).
Example:
Use Multi set-up to shift from Set-up 1 to Set-up
2 whilst the motor is running. Programme in Set-
up 1 first, then ensure that Set-up 1 and Set-up 2
are synchronised (or 'linked'). Synchronisation
can be performed in two ways:
1. Change the edit set-up to Set-up 2 [2] in par.
0-11 Edit Set-up and set par. 0-12 This Set-up
Linked to to Set-up 1 [1]. This will start the linking
(synchronising) process.
OR
2. While still in Set-up 1, copy Set-up 1 to Set-up
2. Then set par. 0-12 to Set-up 2 [2]. This will
start the linking process.
After the link is complete, par. 0-13 Readout:
Linked Set-ups will read {1,2} to indicate that all
'not changeable during operation' parameters on
are now the same in Set-up 1 and Set-up 2. If
there are changes to a 'not changeable during op-
eration' parameter, e.g. par 1-30 Stator Resist-
ance (rs), in Set-up 2, they will also be changed
automatically in Set-up 1. A switch between Set-
up 1 and Set-up 2 during operation is now possi-
ble.
