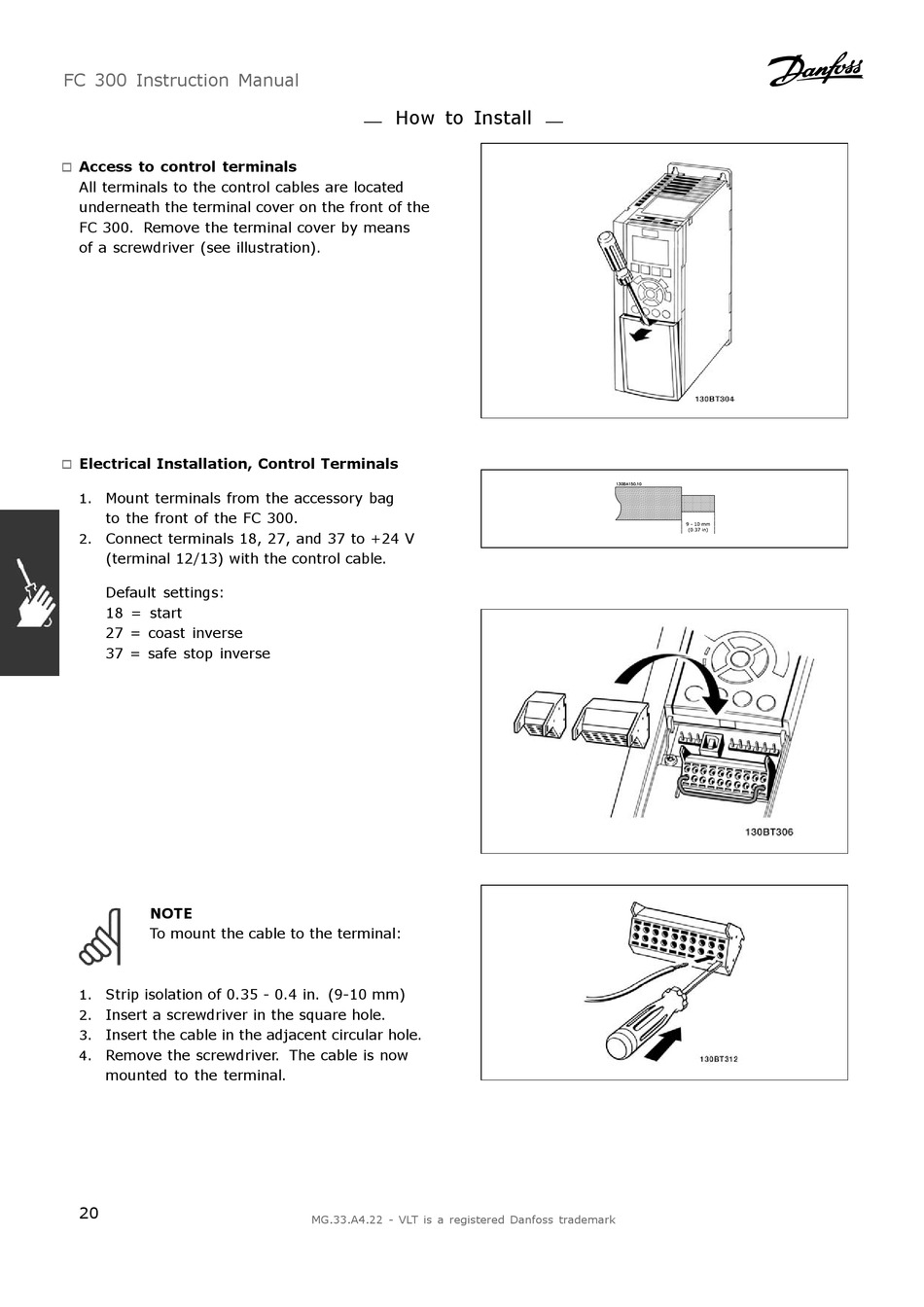

Access to control terminals

"
All terminals to the control cables are located
underneath the terminal cover on the front of the
FC 300. Remove the terminal cover by means
of a screwdriver (see illustration).

Electrical Installation, Control Terminals

"
1. Mount terminals from the accessory bag
to the front of the FC 300.
Connect terminals 18, 27, and 37 to +24 V
2.
(terminal 12/13) with the control cable.
Default settings:
18 = start
27 = coast inverse
37 = safe stop inverse
NOTE
To mount the cable to the terminal:
Strip isolation of 0.35 - 0.4 in. (9-10 mm)
1.
Insert a screwdriver in the square hole.
2.
3. Insert the cable in the adjacent circular hole.
Remove the screwdriver. The cable is now
4.
mounted to the terminal.
