How to Install

5.3.9 Access to Control Terminals

All terminals to the control cables are located underneath
the terminal cover on the front of the frequency converter.
Remove the terminal cover with a screw driver.

5.3.10 Control Terminals

Drawing Reference Numbers:
1.
10-pole plug digital I/O
2.
3-pole plug RS-485 Bus
5
5
3.
6-pole analog I/O
4.
USB Connection
2

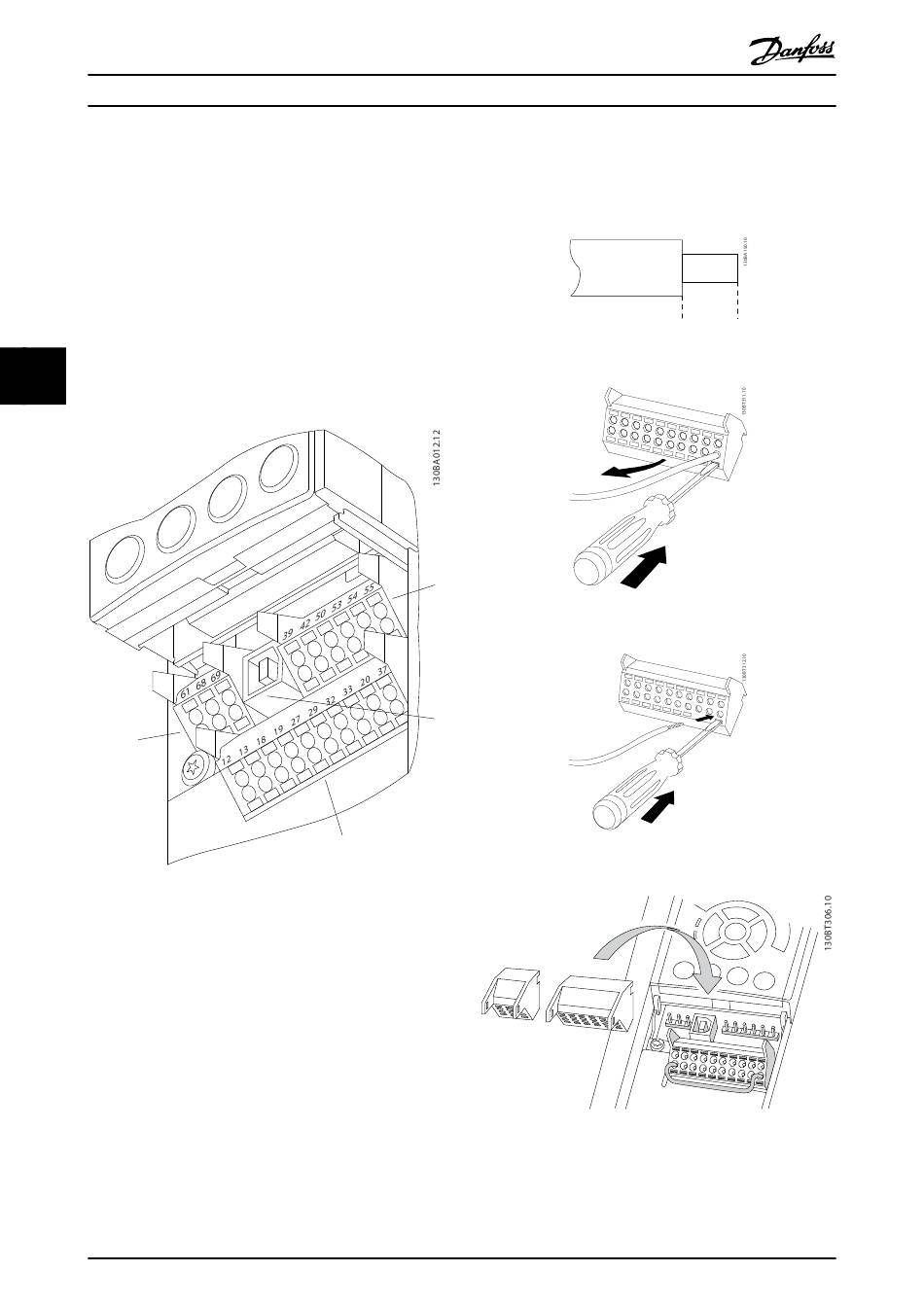

Illustration 5.45 Control Terminals (All Frame Sizes)

5.3.11 Control Cable Terminals

To mount the cable to the terminal:
1.
Strip 9-10 mm of insulation from cable.
2.
Insert a screw driver (Max. 0.4 x 2.5 mm) in the
rectangular hole.
3.
Insert the cable in the adjacent circular hole.
4.
Remove the screw driver. The cable is now
mounted to the terminal.
Control cable torque value is 0.5-0.6 Nm (5 in-lbs.)
94
Design Guide
To remove the cable from the terminal:
Wiring to Control Terminals
Illustration 5.46 Removing Insulation from Cable
3
Illustration 5.47 Inserting Cable into Terminal
4
Illustration 5.48 Removing Cable from Terminal
1
Illustration 5.49 Control Cable Terminals
Danfoss A/S © Rev. 06/2014 All rights reserved.
1.
1)
Insert a screw driver
in the square hole.
2.
Pull out the cable.
9 - 10 mm
(0.37 in)
MG20Z202
