FC 300 Design Guide
Mechanical mounting
FC 300 IP20 Frame sizes A1, A2 and A3 allows side-by-side installation . Due to cooling conditions ,
there must be a minimum of 100 mm free air passage above and below the FC 300.
B1 and B2 enclosures allow side-by-side installa-
tion.
1. Drill holes in accordance with the measurements given.
2. You must provide screws suitable for the surface on which you want to mount the FC 300. Re-
tighten all four screws.

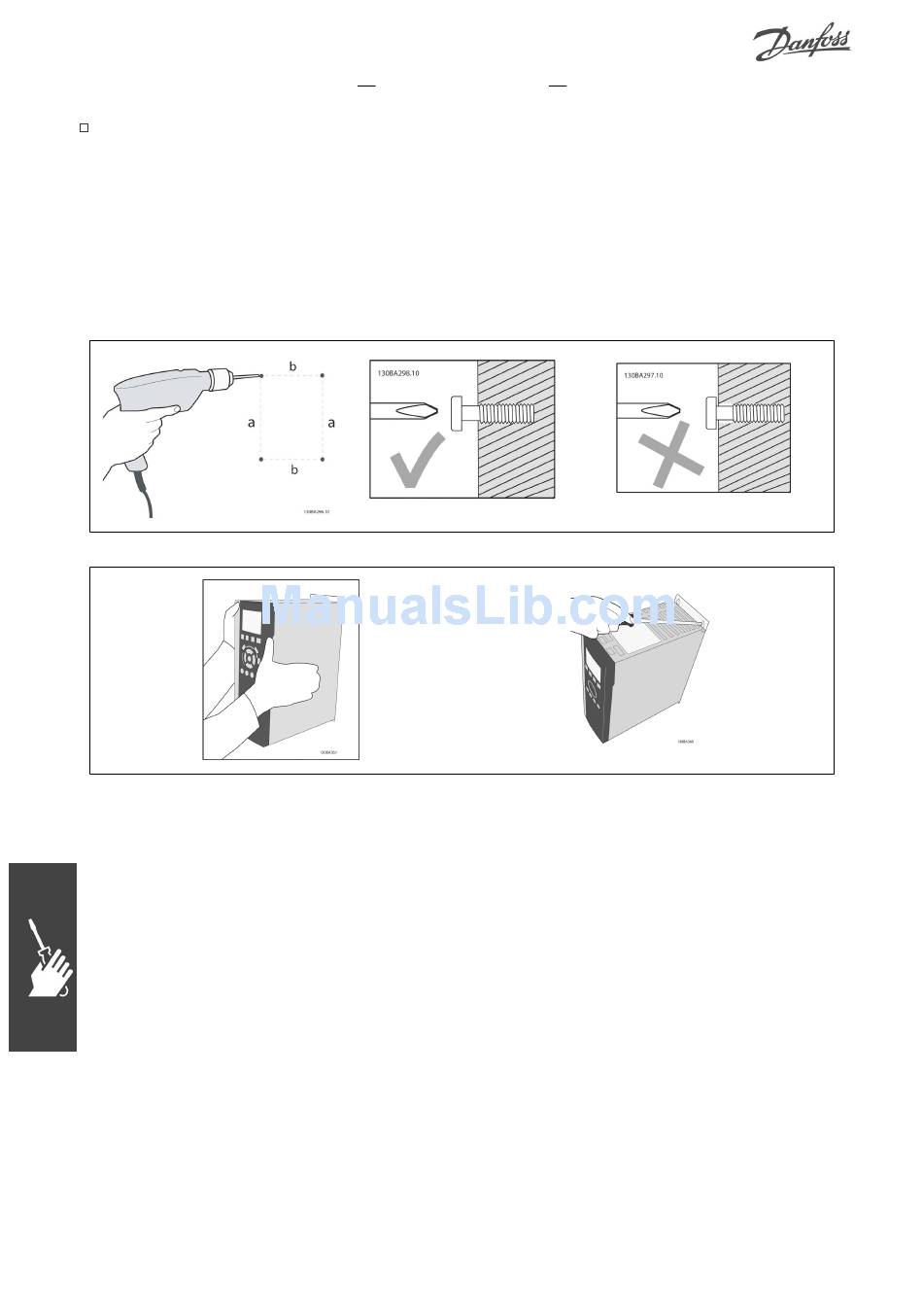

Mounting frame sizes A1, A2 and A3:
74
How to Install
If the
130B1123) is used there must be a clearance be-
tween the drives of min 50 mm.
MG.33.B7.02 - VLT is a registered Danfoss trademark
IP 21 Enclosure kit (130B1122 or
