Double-Feed Detection Led - Ricoh D014 Service Manual

PTR Unit

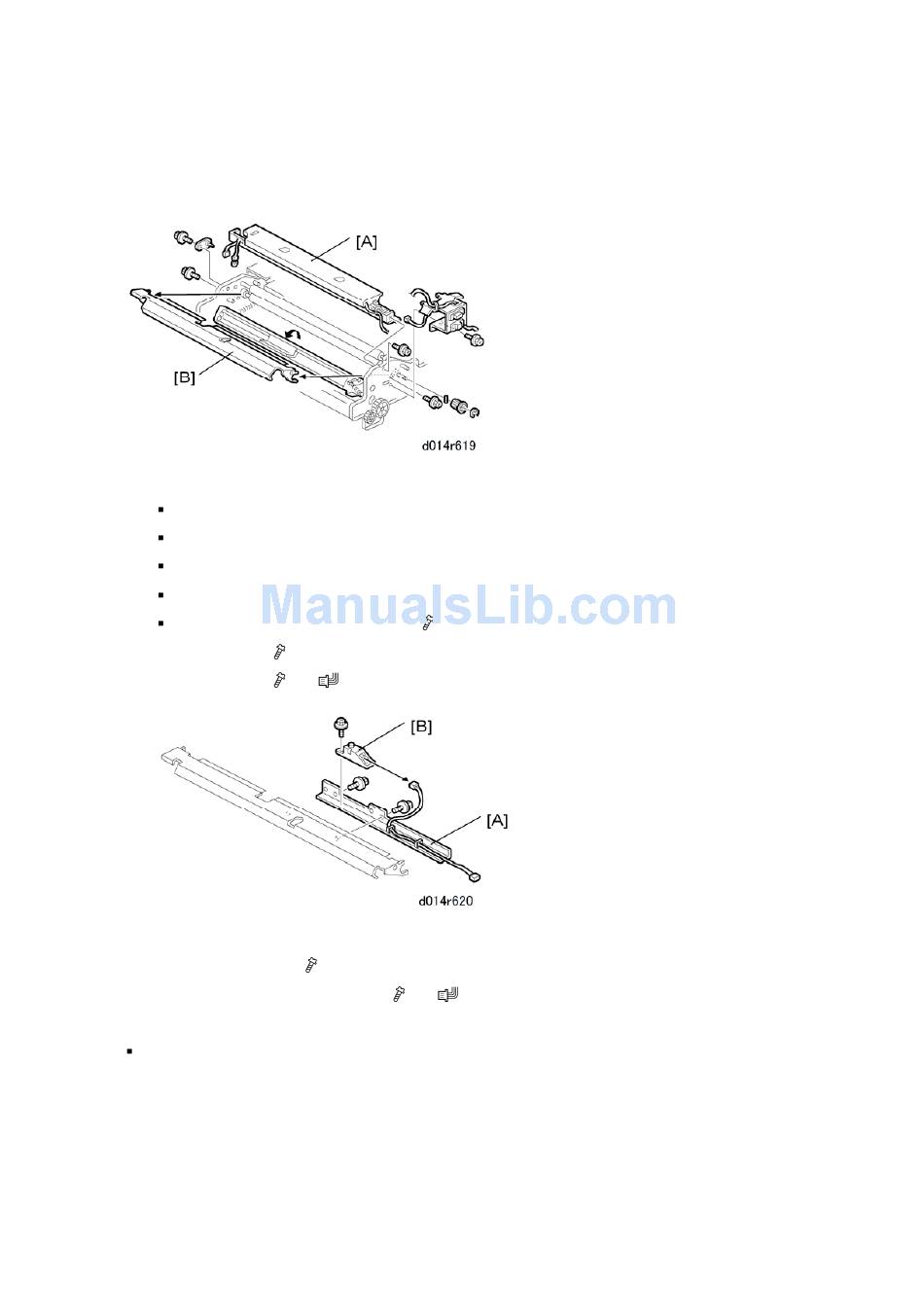

3.5.10 DOUBLE-FEED DETECTION LED

1. Remove:
Drawer unit
Drawer unit connector bracket
Registration motor
Sensor support plate
Registration motor inner cover (
[A] Upper stay ( x2)
[B] Lower stay ( x2,
2. Remove:
[A] Sensor bracket (
[B] Double-feed detection LED (
Reinstallation
Do the forced MUSIC adjustment with SP 2111 001.
D014/D015/D078/D079
CÓPIA NÃO CONTROLADA
x4)
x1)
x2)
x1, x1)
3-74
