PTR Lift

The PTR lift mechanism raises and lowers the PTR unit.
The lift mechanism raises the PTR against the ITB for belt-to-paper image transfer.
The lift mechanism lowers the PTR and pulls it away from the ITB when the machine is
not printing.

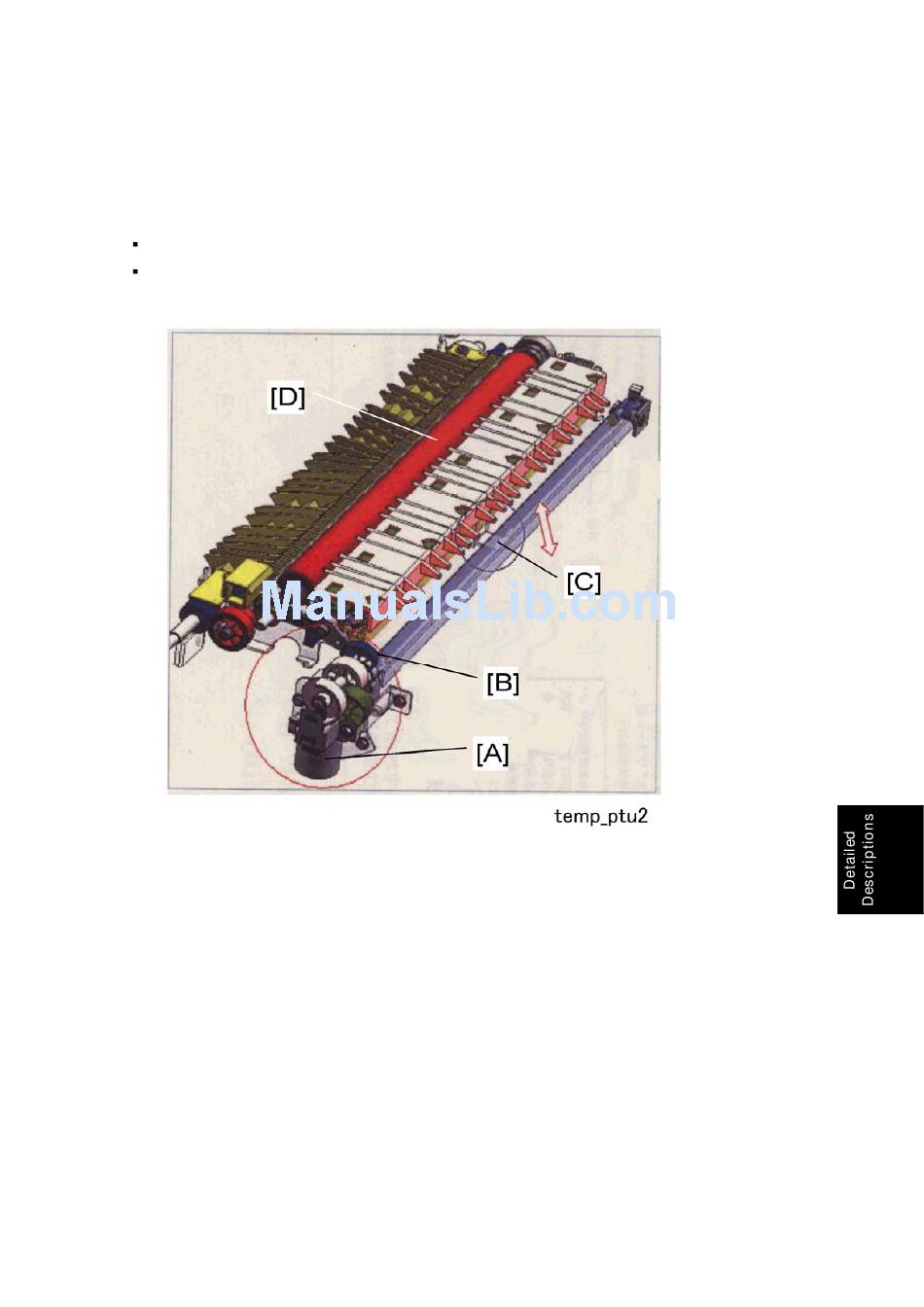

The PTR lift motor [A] rotates cam [B]. The rotation of the cam raises and lowers the lift
plate [C] which in turn raises and lowers the PTR [D].
