• One LED for the router board indicates that the router board is receiving its
required power.
• One LED for the power inlet module (also referred to as the power entry
module) indicates that the inlet board is receiving its required power.
• Four LEDs, one for each IP53 node board, indicate that each IP53 node board is
receiving its required power.
One LED lights yellow,
the other lights green
48 VDC 34.0 A
Electrical
Power OK
Rating 12 VDC 20 A
Router NODE 3
PWR
Inlet Brd NODE 2
12 V NODE 1
48 V NODE 0
X
I
O
2
D
C
B
A
NUMAlink 1 Port A
N3
D
C
B
A
N3
Node board (N3)
heartbeat LEDs

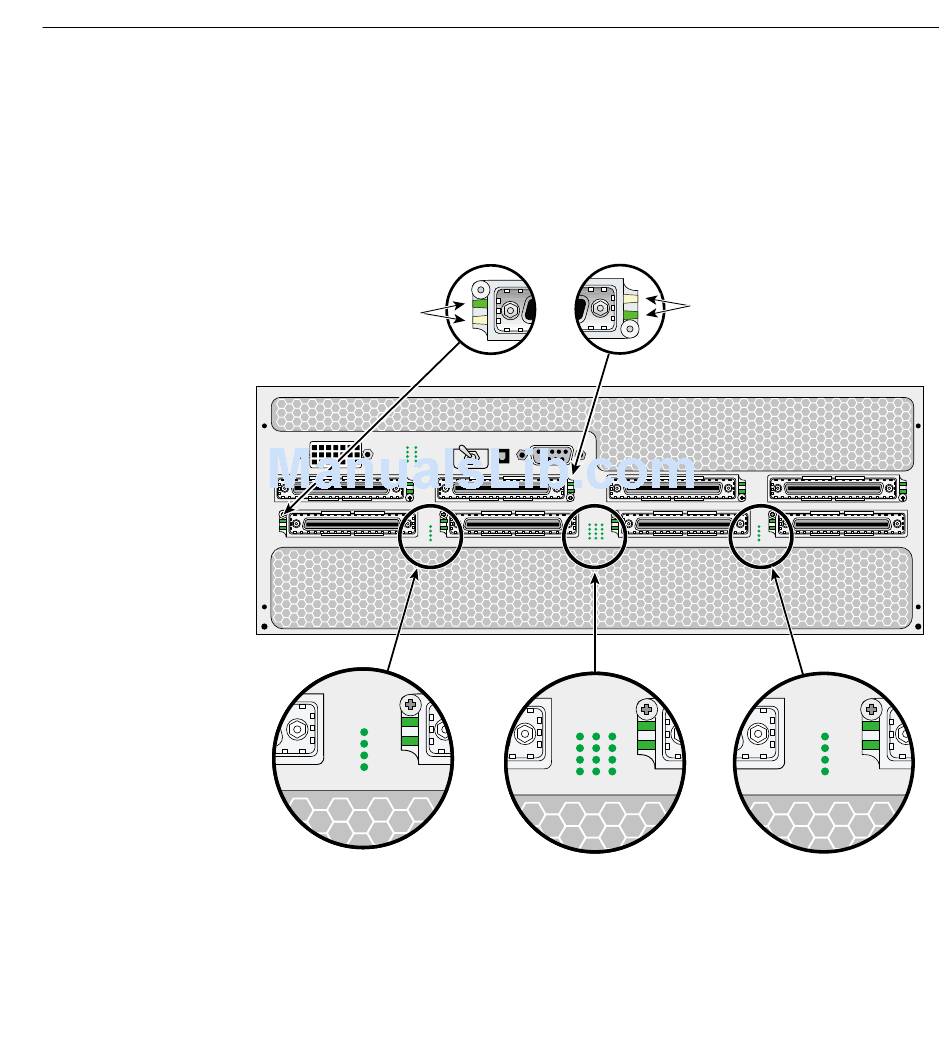

Figure 3-4 Rear View of Cx-brick
