14: Maintenance and Upgrade Procedures
206
c. Mount the card in the carrier, as shown in Figure 14-4, so that the following
occurs:
– The card connectors protrude through the bulkhead where the metal filler
plate was located.
– The edge connectors fit between the bottom guides of the carrier.
– The top of the card fits under the clips on the guide bar.
d. Tighten the three screws on the guide bar. Then skip step 6 and proceed to
step 7.
Clips
Bulkhead

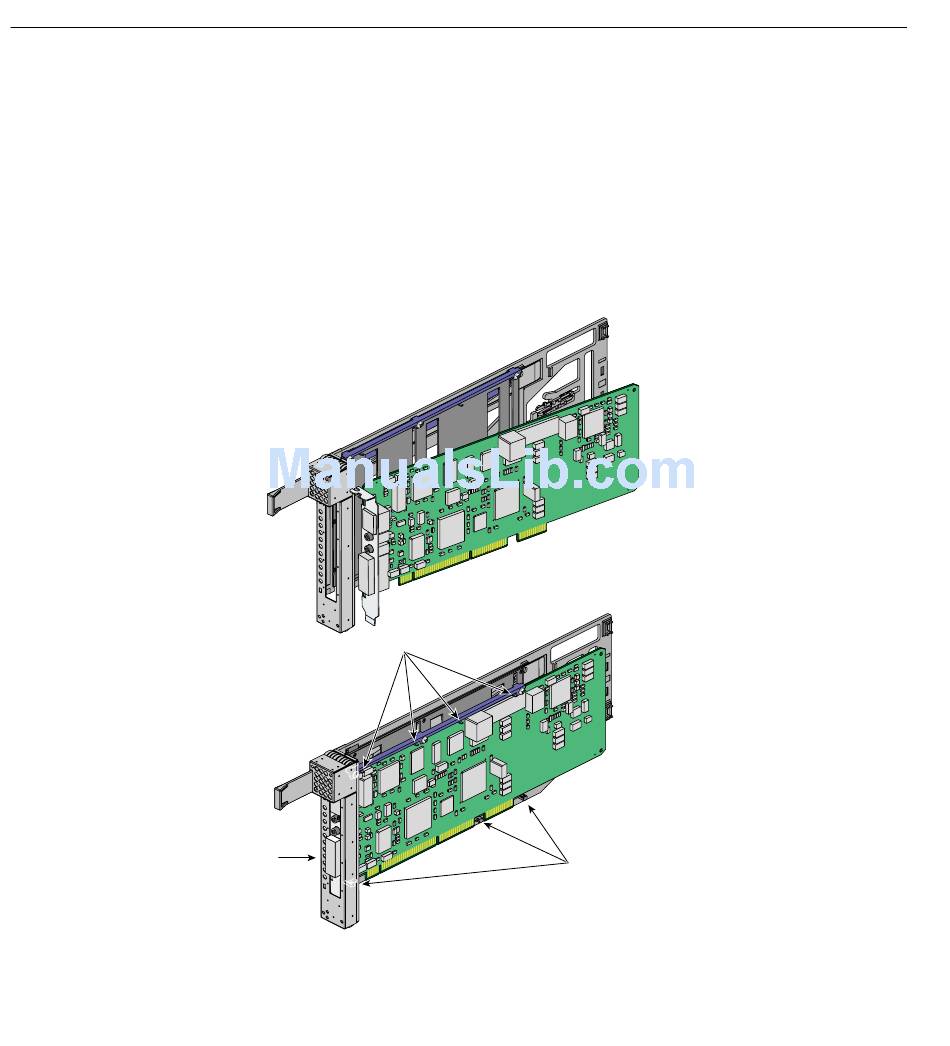

Figure 14-4 Mounting Full-height Card in Carrier
Guides
007-4653-001
