Destination Selection Window

Targeting all Racks and All Bricks

007-4653-001
If you press the DEST: button in the home window, the destination selection window
appears, as shown in Figure 8-12. Use this window to select which bricks in the system
will be affected by a command initiated from the home window. A brick is referenced by
its rack and slot (unit) number.
To select all racks and all slots, press the ALL button. To scroll the rack list and brick list
(not shown in Figure 8-12), press the arrow buttons below the Partition button on the
display. The scroll buttons are active only when the number of racks exceeds the
available space to display them.
Rack/Slot Partition
ALL << >>
CLR
001 002 003 004
101 102
New DEST: r * s *
Apply

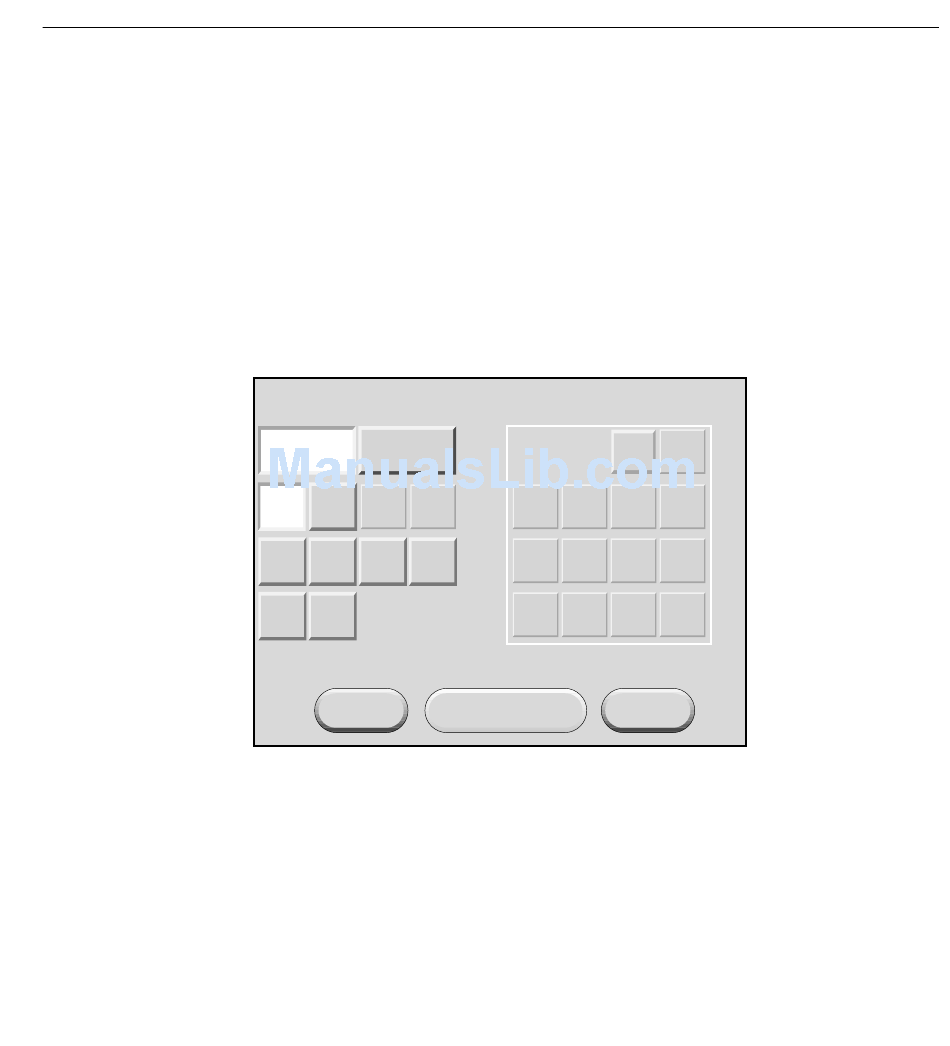

Figure 8-12 Targeting All Bricks in System
Once you have selected the bricks, press the Apply button to set the new destinations.
The home window will then reappear. The new destinations are reflected in the
destination field across the bottom of the home window display. See Figure 8-6 on
page 121.
Before pressing the Apply button to set the new destinations, you can reset the
destination window to the last applied state by pressing the Reset DEST button. The
destination selection window will then revert back to the last applied status.
ALL
Reset DEST Cancel
