Installing or Replacing D-brick2 Drive Carrier Module
4. Open the handle of the replacement carrier by pressing the latch handle towards the
right (see Figure 14-17).

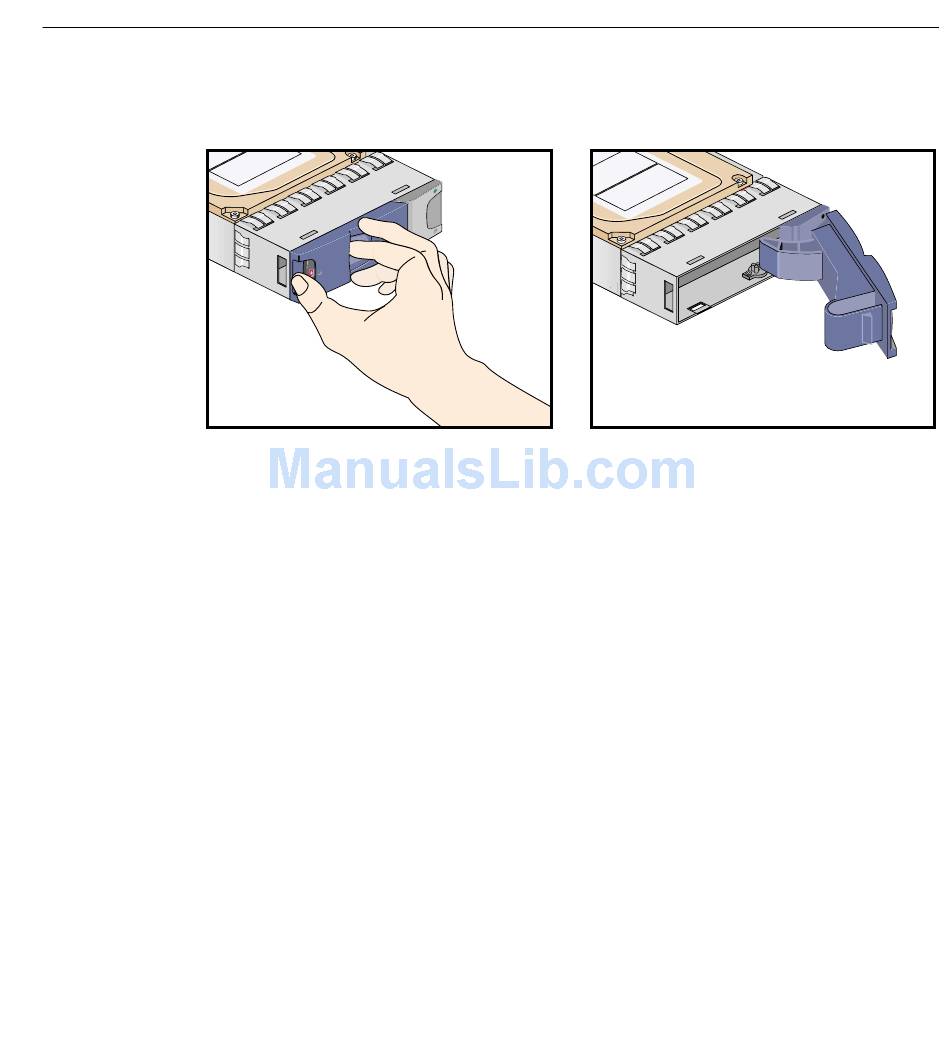

Figure 14-17
Opening Module Handle
5. Remove the dummy drive carrier module from the target drive bay.
007-4653-001
223
