6. To install a half-height PCI card in a carrier, follow these steps:
a. Remove the two screws from the carrier guide bar, as shown in Figure 14-5.
Note: Take care not to lose the threaded inserts in the carrier guide bar.
b. Loosen the third screw of the carrier guide bar.
c. Place the half-height PCI card in the carrier so that the connector edge of the
card rests against the lower guide tab of the carrier (see Figure 14-5).
Loosen T8 Torx screw
Remove T8 Torx screws

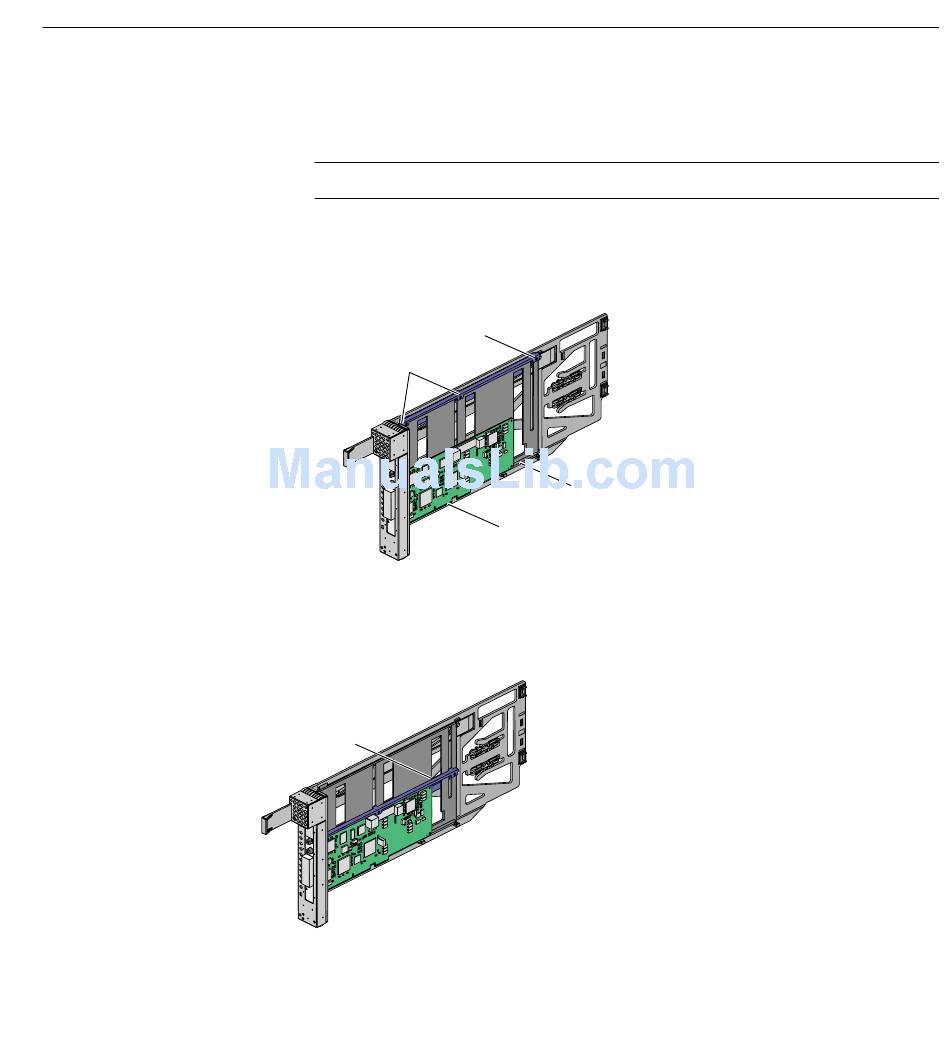

Figure 14-5 Mounting Half-height Card in Carrier
d. Move the carrier guide bar (adjustment rail) so that it holds the card firmly in
place (see Figure 14-6).
Adjustment rail
Figure 14-6 Moving Carrier Guide Bar to Secure Half-height Card
Installing or Replacing PCI or PCI-X Card
Guide tab
Connector edge of PCI card
