Note: If you are adding or replacing a half-height PCI card, skip step 5 and proceed to
step 6.
5. If the full-height card that you want to install does not fit in the carrier, follow these
steps:
a. Loosen the three screws on the guide bar with a Phillips screwdriver (if your
carrier uses T8 Torx screws, you will need a Torx screw driver).
b. Adjust the carrier guide bar (also known as the alignment rail) up or down as
necessary (see Figure 14-3).

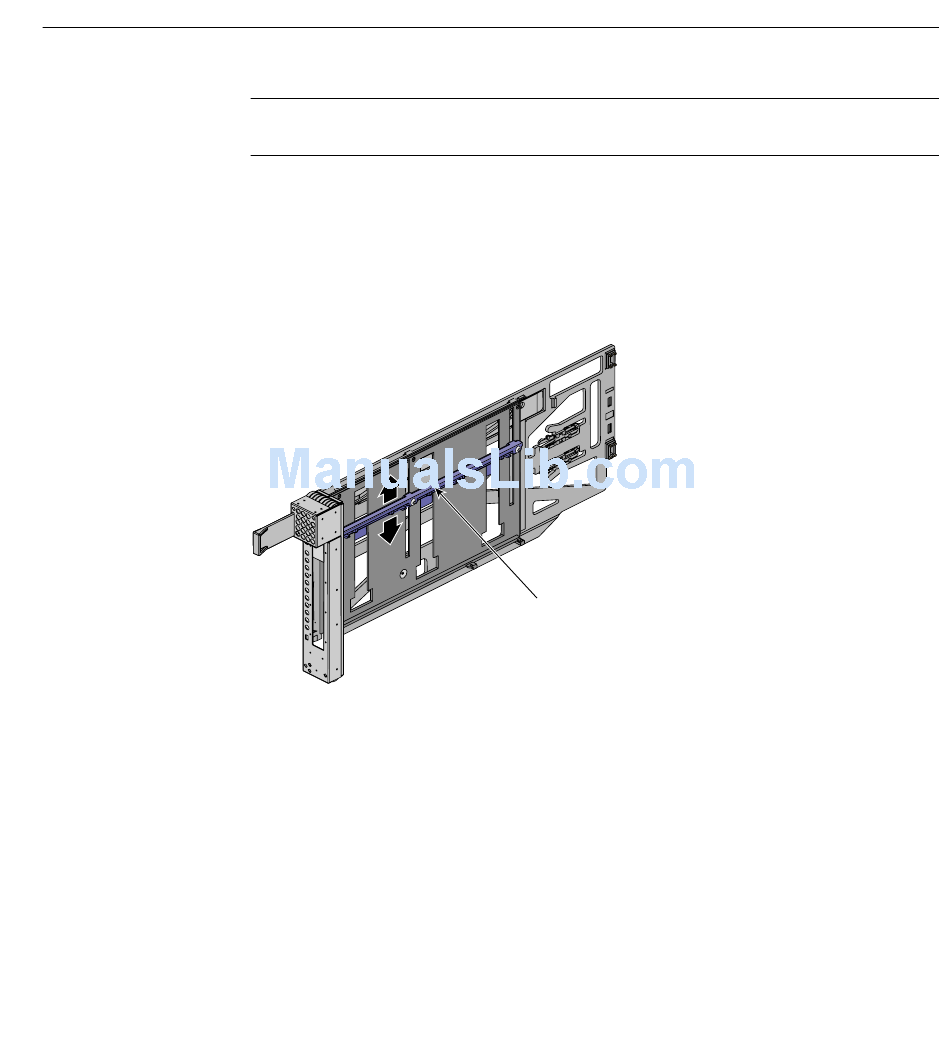

Adjusting Carrier Guide Bar
Figure 14-3
Installing or Replacing PCI or PCI-X Card
Carrier guide bar
