V12 Vpro Graphics Board; Figure 12-1 Vpro V12 Graphics Board - Silicon Graphics Origin 3900 User Manual

12: InfinitePerformance Graphics Components

V12 VPro Graphics Board

DVI-I
Genlock
Stereo View
Swap Ready
174
A VPro V12 graphics board, which is shown in Figure 12-1, provides one
InfinitePerformance graphics pipe. You can add 1 to 8 InfinitePerformance graphics
pipes to your Origin 3900 server. Each graphics pipe requires two processors and
connection to one IP53 node board.
Table 12-1 describes the connectors of the V12 graphics board.
13W3 analog
connector
DVI-I

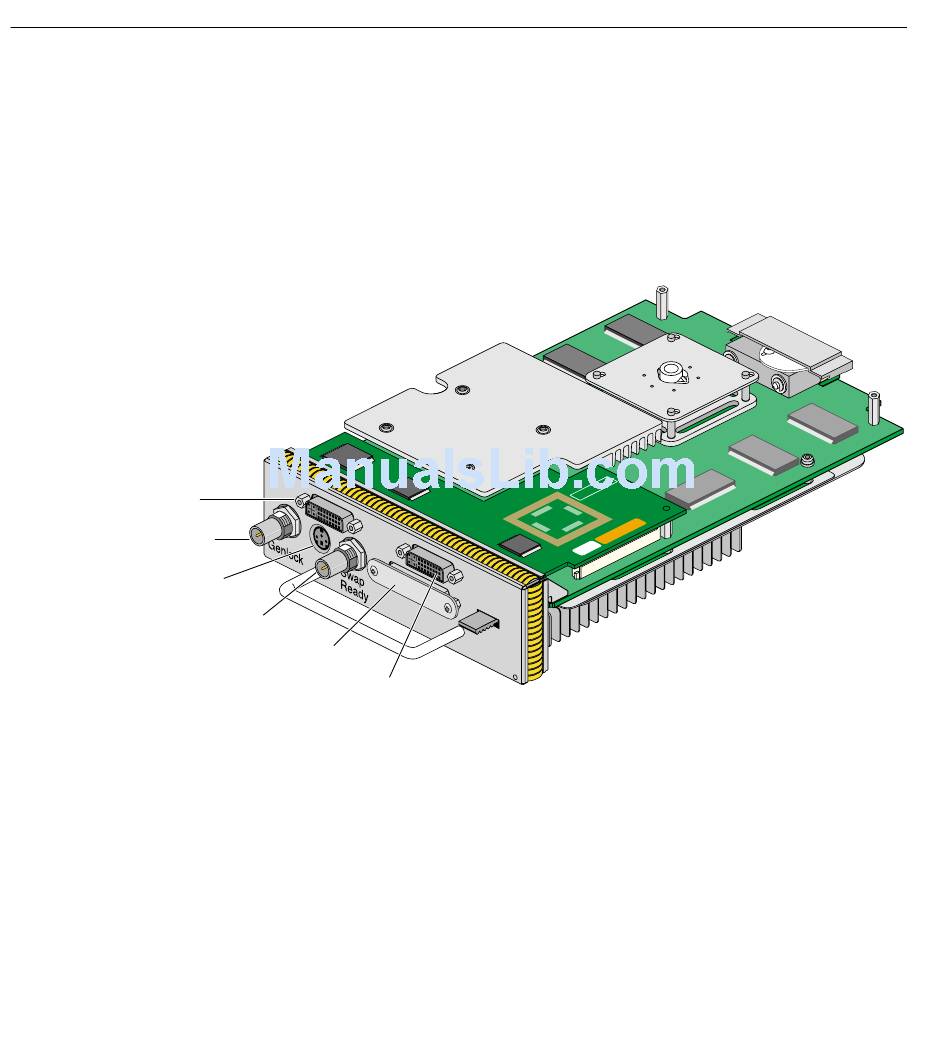

VPro V12 Graphics Board
Figure 12-1
007-4653-001
