14: Maintenance and Upgrade Procedures
218
6. Gently slide the carrier all the way into the enclosure until it is stopped by the
camming lever on the right of the carrier, as shown in Figure 14-14.

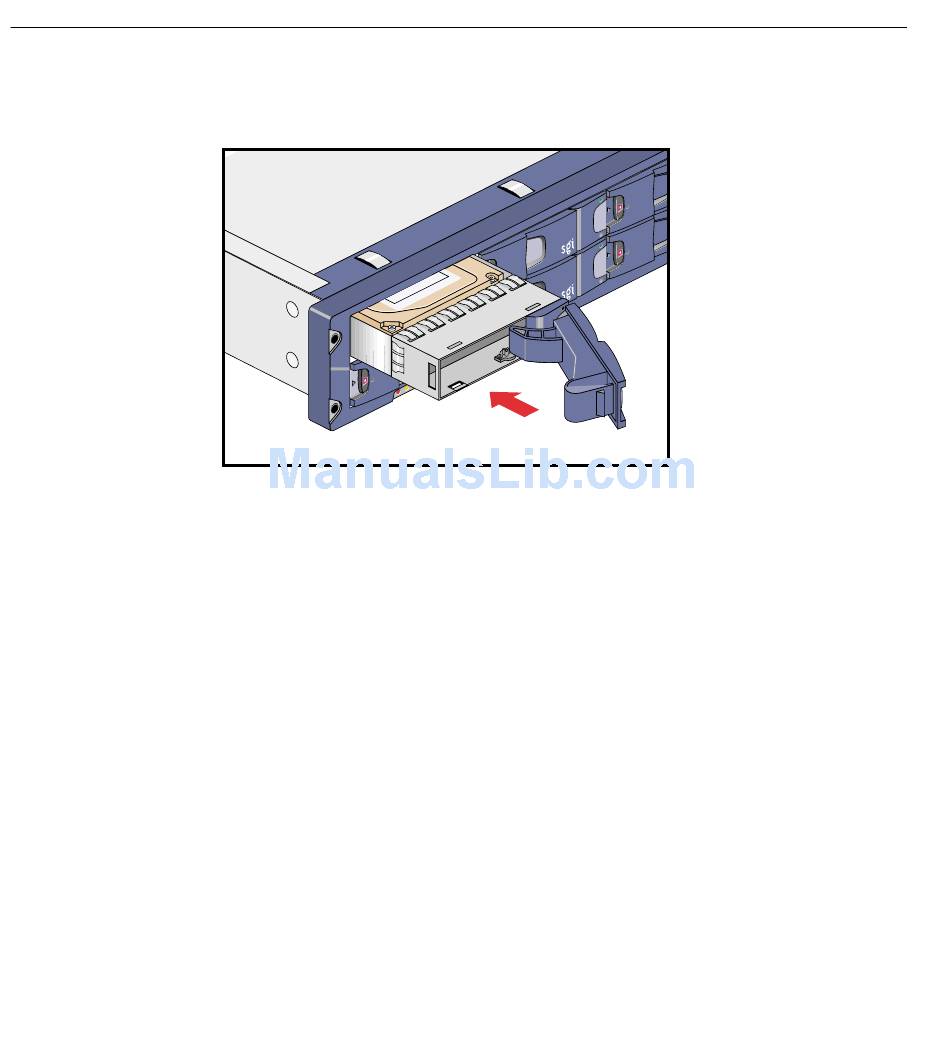

Figure 14-14 Carrier Camming Lever
7. Push the carrier handle into place; the camming foot on the base of the carrier will
engage in a slot in the enclosure. Continue to push firmly until the handle fully
engages. You should hear a click as the latch engages and holds the handle closed.
8. When you finish installing the drive carrier module(s), lock the drive carrier
module(s) in the chassis by inserting the Torx screwdriver in the drive module and
turning it 90 degrees clockwise. The indicator in the drive carrier module turns red
when the drive is locked.
9. Install dummy drive carrier modules in all empty drive bays. The drive handle and
camming mechanisms operate the same as those in a standard drive carrier module.
007-4653-001
