007-4653-001
4. Remove the dummy drive carrier module from the target drive bay.

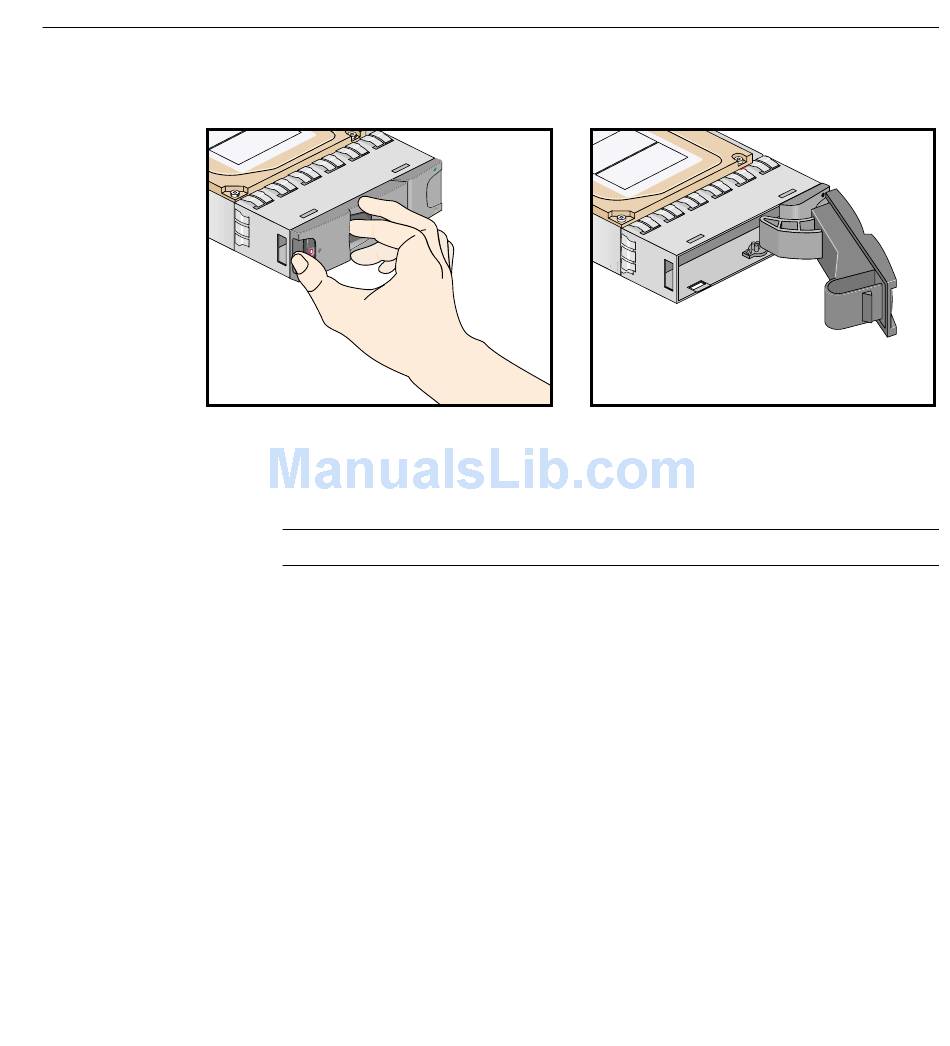

Figure 14-13 Releasing Carrier Handle
5. Release the handle of the replacement carrier by pressing the latch in the handle
towards the right, as shown in Figure 14-13. Insert the carrier into the enclosure.
Important: Ensure that the carrier is oriented so that the handle opens from the left.
Installing or Replacing TP900 Drive Carrier Module
217
